JASO-D622 EV Charger Fuse , Semicomductor Protection 400 Amp Dc Fuse

High Breaking Capacity Fuse Semicomductor Protection Fuse EV Charger Fuse

Material:
Noumenon: fiber pipe
Pins: Copper alloy

Features:

High Breaking Capacity Fuse
Many kinds of High Breaking Capacity Fuse
Current rating:400A
Voltage rating: 750VDC

Breaking capacity:DC50KA

Product Presentation:

Rated Voltage	AC690V/DC700V or lower(IEC),750V(UL)	Type Protection	aR
Rated Voltage	5A-800A	Type Protection	AC100KA,DC50KA(time constant≤15ms)
Meet the Requirement	UL248-20,ISO8820,JASO-D622,Europe and RoHs Directive	Remarks	——

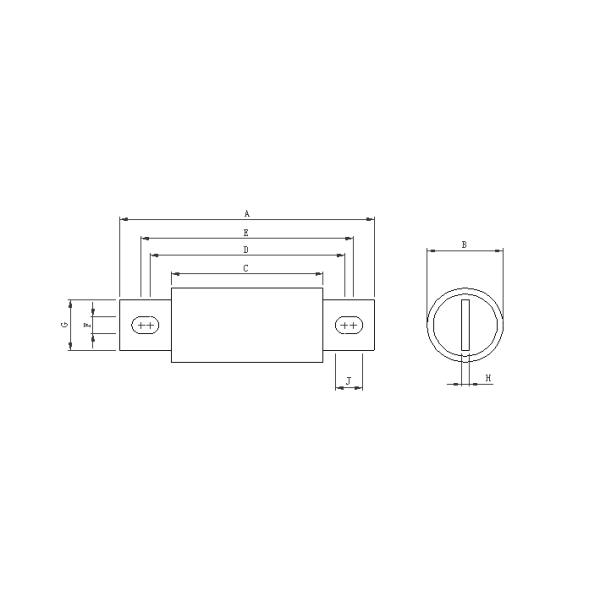

Overall dimensions of the product(mm):

Current characteristic curve:

Product type:

Model	Rated Current (A)	I²t(A²s)		Power dissipation (W)	Size code	Install
Model	Rated Current (A)	Pre-Arc	After-Arc	Power dissipation (W)	Size code	Install
HEV-P-Q-5	5A	1.6	10	1.5	HT1	Mounting Bolt M6 recommended torque 4N·m
HEV-P-Q-10	10A	3.5	19	3.8
HEV-P-Q-15	15A	9.5	73	5.4
HEV-P-Q-20	20A	25.5	176	6.0
HEV-P-Q-25	25A	42	330	7.0
HEV-P-Q-30	30A	55	420	9.0
HEV-P-Q-35	35A	33	160	11.0	HT2	Mounting Bolt M8 recommended torque 11N·m
HEV-P-Q-40	40A	75	315	12.0
HEV-P-Q-45	45A	95	430	12.0
HEV-P-Q-50	50A	135	590	12.5
HEV-P-Q-60	60A	205	940	14.8
HEV-P-Q-70	70A	300	1980	17.5
HEV-P-Q-80	80A	350	2350	20.5
HEV-P-Q-90	90A	410	2630	24.0
HEV-P-Q-100	100A	530	3450	26.5
HEV-P-Q-125	125A	1700	7200	27	HT3	Mounting Bolt M10 recommended torque 20N·m
HEV-P-Q-150	150A	2750	11000	34
HEV-P-Q-175	175A	4100	16000	35
HEV-P-Q-200	200A	5400	21000	42
HEV-P-Q-225	225A	7500	30000	45
HEV-P-Q-250	250A	9700	41000	47
HEV-P-Q-275	275A	12000	58000	51
HEV-P-Q-M300	300A	16500	70000	56	HT4
HEV-P-Q-M325	325A	20000	82000	61
HEV-P-Q-M350	350A	23000	94000	63
HEV-P-Q-M400	400A	30000	123000	76
HEV-P-Q-300	300A	16500	70000	56
HEV-P-Q-325	325A	20000	82000	61
HEV-P-Q-350	350A	23000	94000	63
HEV-P-Q-400	400A	30000	123000	76
HEV-P-Q-450	450A	35000	135000	95
HEV-P-Q-500	500A	44000	165000	108
HEV-P-Q-600	600A	48000	210000	115	HT5	Mounting Bolt M12 recommended torque 28N·m
HEV-P-Q-700	700A	53000	298000	125
HEV-P-Q-800	800A	75000	445000	140

Product Tags:

JASO-D622 EV Charger Fuse

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Dissmann \| Global Expert Fuse for EV \| HEV \| Photovoltaic \| Battery \| Energy Storage Solutions
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Semiconductor Fuses
Brand Name:	Dissmann
Model Number:	HEV-P-Q
Certification:	UL,CCC,TUV
Place of Origin:	China
MOQ:	100pcs
Price:	Negotiable
Payment Terms:	T/T, L/C
Supply Ability:	1,000,000pcs
Delivery Time:	5-8days
Packaging Details:	Standard Carton Packing
Material::	fiber pipe
Colour::	White
Rated Voltage::	750VDC
Rated Current::	400A
Breaking Capacity::	DC50KA
Standard::	UL248-20、ISO8820、 JASO-D622、ROHs
Usage::	EV charger,semiconductor protection
Keyword：:	Semiconductor protection fuse
