White 250 Amp Automotive Fuse , Electric Car Fuse UL248-20 Standard

High Current Ev Fuse 250amp Fuse High Braking Capacity Fuse Charging Pile Fuse

Material:
Noumenon: Ceramic
Pins: Copper alloy

Product Presentation

Overall dimensions of the product(mm)

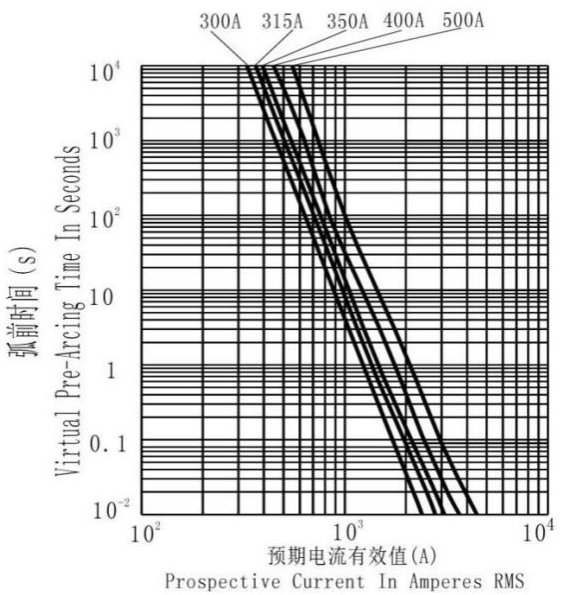

Current characteristic curve

Product type

Model	Rated current (A)	I²t(A²s)		Power consumption (W)	Size Code	Install
		Pre-Arc	After-Arc
EV-H-Q-80	80	5500	6400	15	VH1	Mounting Bolt M8 recommended torque 11N·m
EV-H-Q-100	100	8700	10000	19
EV-H-Q-125	125	15000	17810	23.5
EV-H-Q-150	150	25000	29000	28
EV-H-Q-175	175	40500	45000	33
EV-H-Q-200	200	60300	68000	37
EV-H-Q-225	225	83100	95000	40
EV-H-Q-250	250	120000	138000	45
EV-H-Q-275	275	173200	189000	48
EV-H-Q-300	300	203000	243000	55.5
EV-H-Q-350	350	252000	355000	62
EV-H-Q-300	300	148500	260000	53.5	VH2	Mounting Bolt M10 recommended torque 20N·m
EV-H-Q-315	315	168000	280000	57
EV-H-Q-350	350	203000	350000	61
EV-H-Q-400	400	312000	496000	68
EV-H-Q-500	500	550000	865000	78

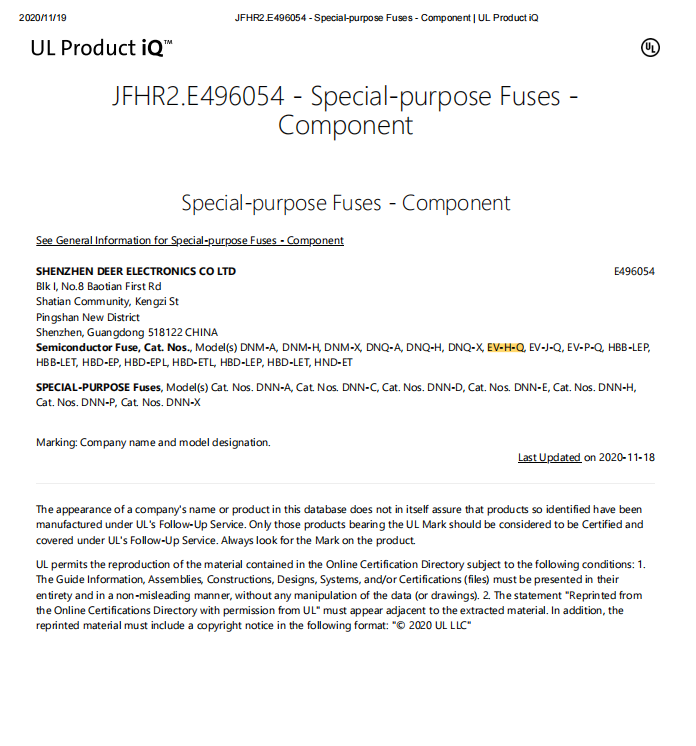

Certificate:

Test Equipment

Production Equipment

Hot Tags: fuse link wire, China, manufacturers, suppliers, factory, Fuse for Short Circuit Over Current, Fuse Bolted Construction Series, High Voltage Fuse for Vehicle EV Charging, Class L Fuse Is 600 Volt AC Current Limiting

We have high-quality professional products, as well as advanced product lines and equipment’s. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Along the increasing market demands, we continuously satisfy customers by updating products to improve production systems, improve quality.

Shenzhen Deer Electronic(Dissmann Fuse) is National High-Tech company was founded in 2000 by Senior Engineers Team. The Engineers were responsible for products’ R&D in famous companies, reorganized and founded Shenzhen Deer in 2005. Focused on R&D and production Current limiting Fuses. Now we’ve got 4 Patents of Invention of China and 12 Patents for Utility Model.

We are well-known as one of the leading high voltage automotive fuses, charging pile fuse, high voltage fuse, fuse holder, charging pile module fuse manufacturers and supplier in China. Welcome to enquiry our high quality fuse and the surrounding products at competitive price from our factory. Contact us for more details.

DISSMANN Fuse Company was founded in 2000, focusing on the fuse and the surrounding product development, production, all products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

Shenzhen Deer is National High-Tech Company, with 20years’ R&D Lean production and rich experience. The initial technology originated from Europe and US, after many years’optimization, the products’performance has unique advantages.

Our products are widely used in New-Energy vehicles Whole vehicle field (PACK, PDU, BDU,ECU,Motor,MSD,Low-Voltage Control box),Charging pile system and Charging Module, PV Solar Combiner box,PV Inverter, Energy Storage UPS,Industrial Distribution Cabinet,5G Telecom Power, BS Plug, Home appliance control board, Lighting drive power etc. Our products got UL,UR,VDE,TUV,ASTA,PSB,CCC,CQC,CE,ROHS, worldwide Safety regulations and Environmental certification.

In order to improve quality and efficiency, shorten delivery time,all-round comprehensive Core competence, we successfully build Fuse’s core part--Fuse wire’s Metallurgical plating, the material’s formula and craft. And build a team for High-level mechanical electrical integration,Full-Automatic Non-standard Equipment.We have absolute advantage in meeting Fuse core Electrical performance and High-speed Automatic production.

Our Fuses have unique advantage in High-Current, High-Voltage, High breaking capacity,Low Temperature-rise,Low Power loss, Long life, Anti-Surge, Lightning resistant, super fast-acting fuse etc. Special applications. Our Auto-grade Fuse Passed harsh environmental reliability tests. For DC High-Voltage (1000VDC),High current (1500A),Good Seismic performance, Light-weight,High breaking capacity(DC50KA, AC200KA), Super Long life(100K Kilometers),Low allowable current, have obvious advantage in Vehicle Regulation Application Index!

We can get new products’ Certificates testing rapidly, we invested several Million RMB to build a laboratory, the Lab. Is UL&TUV authorized third-party witness Lab., Provide a solid guarantee for the product to obtain authority and reliable test data.This Lab. Enable us to get UL&TUV very fast(within 15days).

In order to serve customers better, our High-level Non-standard Automatic Production Dept.are producing Customized equipment, make full-automatic highly-efficient Mechanized production serve manufacturer better, make the production easier, quality better, delivery faster, cost lower and performance higher.

Expect to hand in hand with our old&new customers, to make higher quality products and create better future!
