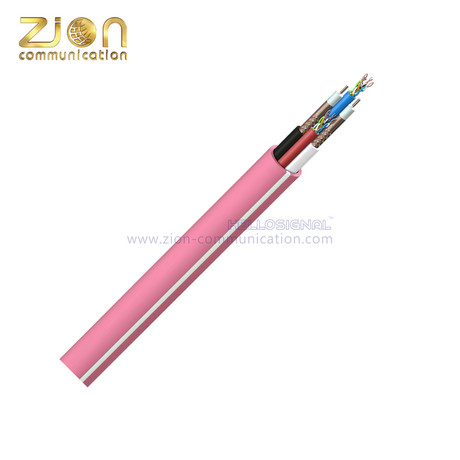

CatE MCC1 Media Composite Cable

CatE MCC1 Media Composite Cable

CatE MCC1 Media Composite Cable
CatE MCC1 Media Composite Cable
Categories Audio And Video Cable
Brand Name: Zion communication OR OEM
Model Number: Media Composite Cable
Certification: CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin: China
MOQ: 20 KM
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Delivery Time: 25 working days
Packaging Details: 100M, 200M, Roll, Carton
Conductor: Bare Copper
Size: 1.02mm
Insulation: FPE
Overall Screen 1: Bare Copper Foil
Overall Screen 2: Bare Copper Wire Braid, (≥ 55% Coverage)
Sheath: PVC
Color: 1 x Black, 1 xWhite
Contact Now
Company Info.
HANGZHOU ZION COMMUNICATION CO., LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CatE MCC1 Media Composite Cable

MCC1
Construction:
2 x Cat 5E UTP
Conductor Material & SizeBare Copper, 24(1)AWG
Insulation MaterialHDPE
Number of Pairs4
Pair IdentificationWhite/Blue, Blue/White
White/Orange, Orange/White
White/Green, Green/White
White/Brown, Brown/White
Sheath MaterialPVC
Sheath Colour1 x Red, 1 x Blue
2 x TV 100
Conductor MaterialBare Copper
Conductor Size1.02mm
Insulation MaterialFPE
Overall Screen 1Bare Copper Foil
Overall Screen 2Bare Copper Wire Braid, (≥ 55% Coverage)
Sheath MaterialPVC
Sheath Colour1 x Black, 1 xWhite
Overall Construction:
Sheath MaterialPolyvinyl Chloride (PVC)
Sheath ColourPink +White Stripe
Electrical Characteristics:
Cat 5E UTP
Nominal Impedance100 ± 15 Ω (1-100MHz)
Max. Conductor Resistance@ 20°c≤ 9.50 Ω/100m
Max. Conductor Resistance Unbalanced≤ 5.0 %
Mutual Capacitance≤ 5.6 nF/100m
Capacitance Unbalanced to Earth≤ 300 pF/ 100m
Max. Delay Skew≤ 45 ns/ 100m
Voltage Rating30 V
Test Voltage2.5kV (AC)
2 x TV 100
Nominal Impedance75 ± 3 Ω
Max. Conductor Resistance@ 20°c≤ 23.5 Ω/km
Outer Conductor Resistance@ 20°c≤ 15 Ω/km
Capacitance53 ± 3 pF/m
NVP83 %
TV 100 Electrical Performance
AttenuationReturn Loss
Frequency
(MHz)		Attenuation
(dB/100m)		Frequency
(MHz)		Attenuation
(dB/100m)		Frequency
(MHz)		dB
51.686019.530 – 470≥ 23
504.6100021.5470 – 862≥ 20
1006.5175029.0862 - 2150≥ 18
2009.5215032.5
46015.0
Cat 5E UTP Transmission Performance
Frequency1410162031.2562.5100155200300350MHz
Attenuation2.04.106.58.29.3011.717.022.026.630.738.741.4dB
Return Loss20.023.025.025.025.023.621.520.110.19.07.26.6dB
NEXT65.356.350.347.245.842.938.435.329.227.324.423.2dB
PS NEXT62.353.347.344.442.839.935.432.327.025.222.321.2dB
ELFEXT65.052.044.039.938.034.128.124.017.515.311.810.5dB
PSELFEXT61.049.041.036.935.031.125.121.011.89.66.14.7dB
Physical Characteristics:
Overall Diameter16.8 ± 1.0mm
Bend Radius15 x OD
Temperature Rating-10°C to 70°C
Weight210 kg/km
Standards:
Cat 5E UTP PVC
Manufactured in Accordance toTIA/EIA 568-C.2, ISO/IEC 11801
ApprovalHDBaseT
Overall Construction:
Flame RetardantBS EN 60332-1-2
RoHS3 CompliantYes
CE CompliantLVD (2014/35/EU), CPR (305/2011)
CPR ClassificationEca (EN50575:2014+A1:2016)
