| Categories | Brushless DC Water Pump |
|---|---|
| Brand Name: | junqi |
| Model Number: | JQ-P4502-2pin |
| Certification: | IS9001, TS16949,CE |
| Place of Origin: | China |
| MOQ: | 5 sets |
| Price: | Negotialbe |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 1000set/month |
| Delivery Time: | base on order, |
| Packaging Details: | suitable for export |
| Model: | JQ-P4502-2pin |
| Material: | PPS |
| Voltage: | 24VDC |
| Power: | 28W |
| Rated Flow Rate: | 11L/min, |
| Max Head: | 8M |
| Medium: | water |
| Max. Current: | 1.2A |
| Outlet Size: | 21mm |
| Structure: | Single-stage Pump |
| Company Info. |
| Changzhou Junqi International Trade Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Water Pump technical parameters:
| Model | Rated Voltage | Max.current | Max.Flow rate | Max.Lift | Ambient Temperature |
| JQ-P4502-12V | DC12V | 1.5A | 10LPM | 6m | -10~100℃ |
| JQ-P4502-24V | DC24V | 1.2A | 11LPM | 8m | -10~100℃ |

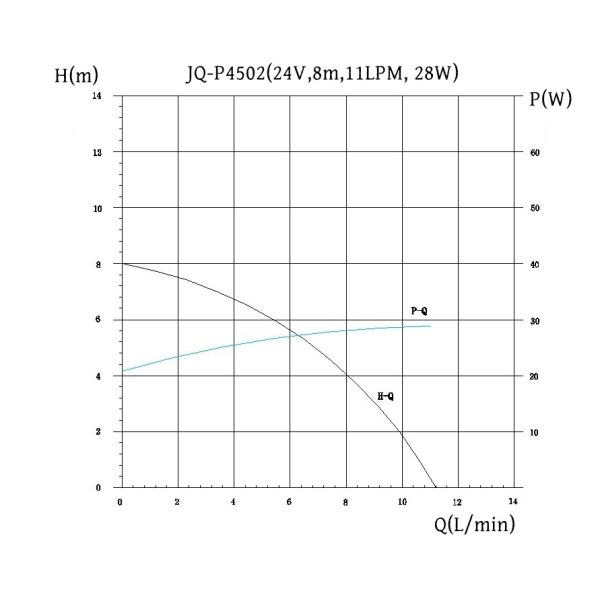

Water Pump Performance Curve:

Overall Dimensions:

Applications:
Solar heater circular water system
Intelligent toilet core
Water heating mattress
Homemade beer machine
Water heater supercharging.

If you want to get more information about products, please feel free contact with us via ivanzhu@junqitrading.com
|
