| Categories | V Type Powder Mixer |
|---|---|
| Brand Name: | WKS |
| Model Number: | WKS-V-0.5 |
| Certification: | CE Certificate |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets for month |
| Delivery Time: | about 30 working days |
| Packaging Details: | Normally it is packed in the plywood case, or loaded directly in the container after film wrapping |
| Name: | V Type Power Mixer |
| Material: | SUS304 |
| Application: | Powder |
| Warranty: | 1 year |
| Usage: | powder mixing |

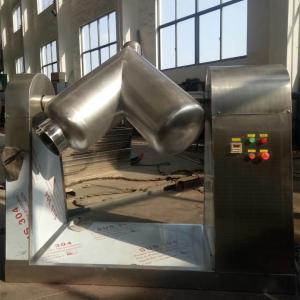

V Type Coffee Milk Protein Dry Solid Powder Mixing Machine Dry Powder Mixer
V Type Powder Mixer
Main structure features:
This machine adopts labor feeding and enclosed flapper valve for discharging. It will not produce powder dust, and it also will not produce mechanical compression and strong friction during mixing. So the material particles can remain intact. The mixing barrel is made of stainless steel, which won’t pollute the material. Besides, this machine has timing device, which can control the mixing time of materials.
| TYPE | FULL VOL. (m³) | LOADING RATIO | L (mm) | W (mm) | H (mm) | DISCHARGE DIAMETER (mm) | ROTATING HEIGHT (mm) | ROTATING SPEED (rpm) | ELECTRIC POWER (kW) | WEIGHT (kg) |
| WKS-V-0.1 | 0.1 | 0.4~0.8 | 1650 | 500 | 1550 | φ80 | 1600 | 12 | 0.75~1.1 | 180 |
| WKS-V-0.3 | 0.3 | 0.4~0.8 | 1900 | 600 | 1750 | φ100 | 1900 | 12 | 1.1~1.5 | 350 |
| WKS-V-0.5 | 0.5 | 0.4~0.8 | 2300 | 700 | 2100 | φ150 | 2250 | 9 | 1.5~2.2 | 550 |
| WKS-V-1 | 1 | 0.4~0.8 | 2700 | 1000 | 2500 | φ150 | 2700 | 9 | 2.2~4 | 1000 |
| WKS-V-1.5 | 1.5 | 0.4~0.8 | 3000 | 1000 | 2600 | φ200 | 2900 | 8 | 4~5.5 | 1100 |
| WKS-V-2 | 2 | 0.4~0.8 | 3200 | 1200 | 3100 | φ200 | 3250 | 8 | 4~7.5 | 1500 |
| WKS-V-2.5 | 2.5 | 0.4~0.8 | 3950 | 1500 | 3550 | φ200 | 3800 | 7 | 5.5~11 | 1700 |
| WKS-V-3 | 3 | 0.4~0.8 | 4100 | 1500 | 3600 | φ200 | 3850 | 6 | 7.5~11 | 1800 |
Operation and Maintenance:
1. Connect the power first, setting the required mixing time, then turn on the switch, the machine begin running.
