22211 Spherical Roller Bearing 55x100x25 MM 22211-E-K For Excavator Bearing

Categories Excavator Bearing
Brand Name: OEM
Model Number: 22211
Place of Origin: CHINA
MOQ: 1 PCS
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, PAYPAL
Supply Ability: 9999 SETS
Delivery Time: 1-3 working days
Packaging Details: Standard export carton
Bearing number: 22211
Size: 55x100x25 MM
Bore Diameter: 55 (mm)
Outer Diameter: 100 (mm)
Width: 25 (mm)
Weight: 0.8 kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

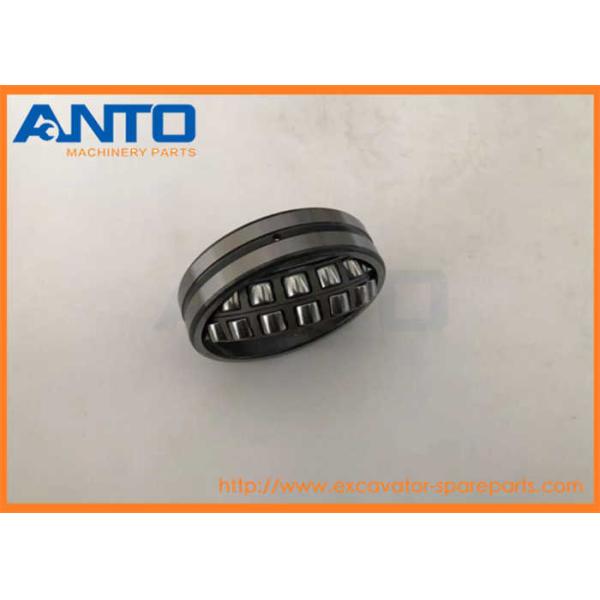

22211 Spherical Roller Bearing 55x100x25 MM 22211-E-K For Excavator Bearing

  • 22211 Spherical Roller Bearing 55x100x25 MM 22211-E-K For Excavator Bearing
Spherical roller bearings 22211 EK
Bearing number : 22211 EK
Size (mm) : 55x100x25
Bore Diameter (mm) : 55
Outer Diameter (mm) : 100
Width (mm) : 25
d - 55 mm
D - 100 mm
B - 25 mm
d2 - - 65.3 mm
D1 - - 88 mm
b - 6 mm
K - 3 mm
r1,2 - min. - 1.5 mm
da - min. - 62.2 mm
da - max. - 65 mm
Da - max. - 91 mm
ra - max. - 1.5 mm
Basic dynamic load rating - C - 129 kN
Basic static load rating - C0 - 127 kN
Fatigue load limit - Pu - 14 kN
Reference speed - 6300 r/min
Limiting speed - 8500 r/min
Calculation factor - e - 0.24
Calculation factor - Y1 - 2.8
Calculation factor - Y2 - 4.2
Calculation factor - Y0 - 2.8

Spherical roller bearings are bearings with two rows of raceways in the inner ring, spherical raceways in the outer ring, and drum-shaped rolling elements. The center of the raceway surface of the outer ring is the same as the center of the bearing (refer to Figure 1), and the two raceways of the inner ring are inclined at an angle relative to the axial direction of the bearing. Impact. In addition to bearing radial load, the bearing can also bear certain bidirectional axial load, which is suitable for occasions bearing vibration and impact load


  • Our ability

We can produce many egories and more than 6000 specifiions of high-quality bearing products for various purposes and performances, which are sold well in various provinces, municipalities, autonomous regions and more than 50 countries and regions in the world. Many bearing products have won national silver medals and provincial and municipal high-quality bearings.
1. According to the appliion field, the bearings are divided into: automotive bearings, agricultural machinery bearings, machine tool bearings, motor bearings, fan bearings, textile machinery bearings, mining machinery bearings, paper machinery bearings, chemical machinery bearings, cement plant bearing maintenance, power plant bearings, etc.
2. According to the bearing type, it is divided into: deep groove ball bearing, self-aligning ball bearing, angular contact ball bearing, cylindrical roller bearing, tapered roller bearing, spherical ball bearing with seat, thrust ball bearing, self-aligning roller bearing, Combined rolling bearings such as thrust angular contact ball bearings and thrust spherical roller bearings.
3. According to the characteristics of use: stainless steel bearings, high temperature bearings, low temperature bearings, corrosion-resistant bearings, high-speed bearings, insulating bearings, silent bearings, chemical fiber bearings, vacuum bearings, fitness equipment bearings, self-lubriing bearings, anti-magnetic bearings, anti-sulfur bearings.


  • Factory operation workshop



  • Lead time and delivery

We stock most of popular models of bearing, and delivery can be arranged in short time for your urgent request.

We can arrange delivery by express, for example DHL, FEDEX, TNT, UPS, EMS, ShunFeng. Or by air cargo to local airport. For any large amount of bearing request, we are able to arrange delivery by sea/boat.
