| Categories | Brushless DC Water Pump |
|---|---|
| Brand Name: | junqi |
| Model Number: | JQ-BLP5012 |
| Certification: | IS9001, TS16949,CE |
| Place of Origin: | China |
| MOQ: | 5 sets |
| Price: | USD16-USD30 |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000set/month |
| Delivery Time: | base on order, |
| Packaging Details: | suitable for export |
| Model: | JQ-BLP5012 |
| Material: | PPS |
| Voltage: | 12VDC |
| Power: | 22W |
| Rated Flow Rate: | 25L/min, |
| Max Head: | 4.5M |
| Application: | Automotive industry, Biofuel Industry, Temperature Control, Motorcycle |
| Medium: | Antifreeze |
| Rated Current: | 1.8A |
| Outlet Size: | 17mm |
| Structure: | Single-stage Pump |
| Company Info. |
| Changzhou Junqi International Trade Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Water Pump Quick Details:
Rated Voltage (V) | Voltage Range (V) | Rated Current (A) | Rated Head (m) | Rated Flow (L/min) | Rated Power (W) | Max Noise dB(A) |
| 12 | 6~14 | 1.8 | 4.5 | 25 | 22 | ≤40 |
Water Pump Features:
1. Centrifugal Pump
2. Magnetic force transmission(shield pump structure)
3. Low Noise ( less than 35dB)
4. High Efficiency DC Brushless Motor, Low power consumption,
high efficiency,Long Service life ( 15000 hours)
5. Single-stage structure
6. With wide range operating temperature
7. Dry-running protection (optional)
8. Locked-rotor protection(optional)
9. PWM speed adjustable(optional)
10. FG Signal output(optional)

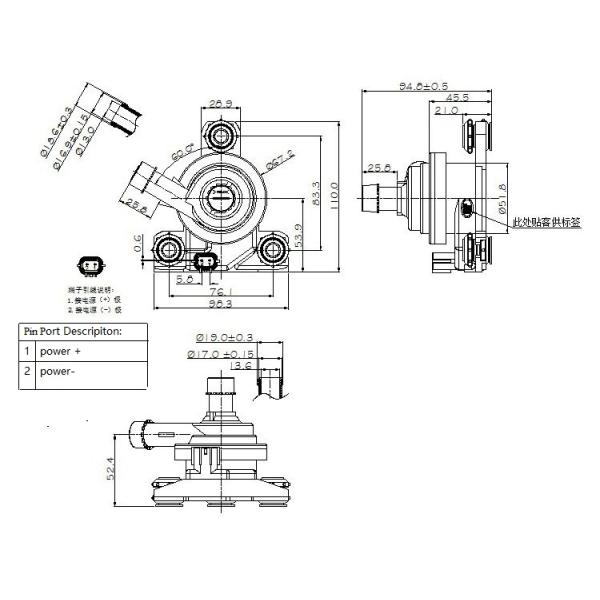

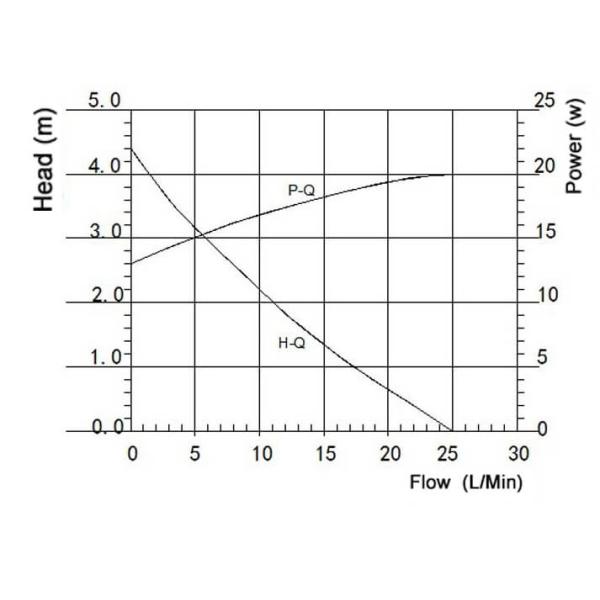

Water Pump Performance Curve and Overall Dimensions:
Water Pump Techincal Parameters:
| Model | JQ-BLP5012 |
| Rated Voltage (V) | 12V |
| Voltage Range (V) | 8-14V |
| Rated Current(A) | 1.8A |
| Rated Head (m) | 4.5m |
| Rated Flow (L/min) | 25L/min |
| Rated Power (W) | 22W |
| Max Noise (dB) | ≤40dB |
| OD of inlet (mm) | ∅17mm |
| OD of outlet(mm) | ∅17mm |
| Protection Level | IP67 |
| Insulation Level | H |
| Ambient temperature(℃) | -40 to 125℃ |
| Medium Temperature(℃) | -40 to 125℃ |
| Medium | Antifreeze |
| Weight (kg) | 0.38kg |
Water Pumps applications:
1.Heating vertilation air conditioning
2. Auto turbocharger water cooling cycle
3. New energy vehicle cooling cycle
4. Motorcycle electronic water pump

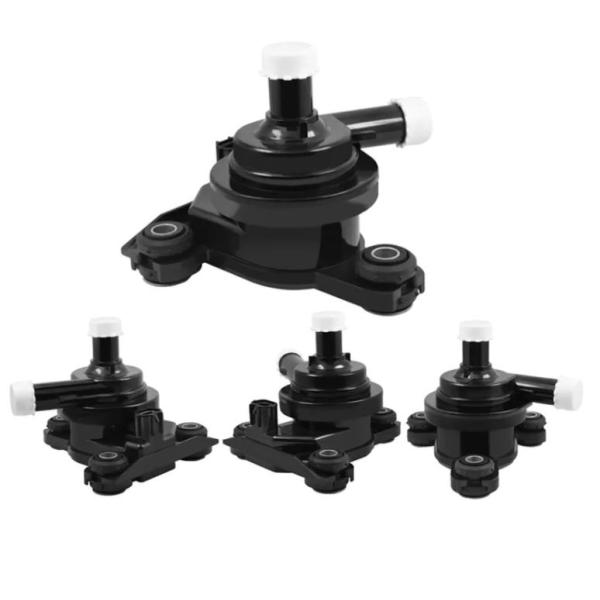

Water Pump View Pictures:
FAQ:
Q: How long is your delivery time?
A: Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
Q: How long is your warranty of pump?
A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.
Q: What’s the payment method?
A: Paypal,T/T,
Q: What certificates have your pumps passed?
A: All our products have passed CE, RoHS, Reach.
Parts of pumps met UL.
Q: What certificates have your company passed?
A: Our company has passed IATF16949, ISO9001, ISO14001&OHSAS18001
