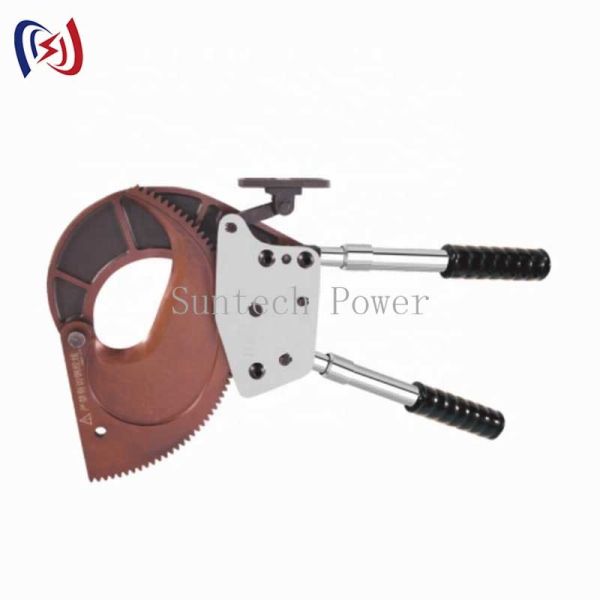

Compact Manual Cable Shear for Copper/Aluminum Conductors
Key Features:
Cutting Capacity: Handles conductors from 6mm² to 500mm² (including
ACSR, copper, and aluminum cables)
Blade Technology: Tungsten carbide or hardened steel blades
maintain sharpness through 5,000+ cuts
Specialized Models: Available for steel-armored cables, pre-formed
wire ropes, and high-voltage terminations
Technical Specifications:
Cut Quality: Clean perpendicular cuts with <0.5mm deformation
Applications:
Transmission line construction (ACSR conductor cutting)
Substation cable terminations
Underground distribution repairs
Wind turbine cable management
Railway electrification projects
Advantages vs. Alternatives:
✔ 50% Less Hand Fatigue with ergonomic designs
✔ Precision Cuts eliminate filing/reaming needs
Maintenance & Support:
Blade Replacement: Every 1,200 cuts (average)
Warranty: 1 years
Technical Data
| Item number | Model | Cutting Range |
| 21442B | CC325 | Cutting Off Copper Or Aluminum Cable below240 mm2 |
| 21442A | J40B | Cutting Off Copper Or Aluminum Cable below240 mm2 |
| 21442C | J40A | Cutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm. |
| 21442D | J40C | Cutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm. |
| 21445C | J40D | Cutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm. |
| 21445 | J40 | Cutting Copper Or Aluminum armored cable below300 mm2. Maximum opening is 40 mm. |
| 21445A | J52 | Cutting Copper Or Aluminum armored cable below 500mm2. Maximum opening is 52 mm. |
| 21445B | J75 | Cutting Copper and Aluminum armored cables diameter below Φ 75mm |
| 21441 | J95 | Cutting Copper and Aluminum armored cables diameter below Φ 95m |
| 21441A | J100 | Cutting Copper and Aluminum armored cables diameter below Φ 100m |
| 21440 | J130 | Cutting Copper and Aluminum armored cables diameter below Φ 130mm |
| 21440A | J160 | Cutting Copper and Aluminum armored cables diameter below Φ 160mm |

|
