| Categories | Industrial Centrifugal Pumps |
|---|---|
| Brand Name: | HUATAO |
| Model Number: | Slurry Pump |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 1000-5000usd/set |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/month |
| Delivery Time: | 25-35 days |
| Packaging Details: | WoodeN Box |
| Max.Capacity: | 300-400L/min |
| Max.Head: | 110m-150m |
| Driving Type:: | Motor |
| Warranty: | one year |
| Impeller: | Single-Stage Pump |
| Working Pressure: | High Pressure Pump |
| Company Info. |
| HUATAO LOVER LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

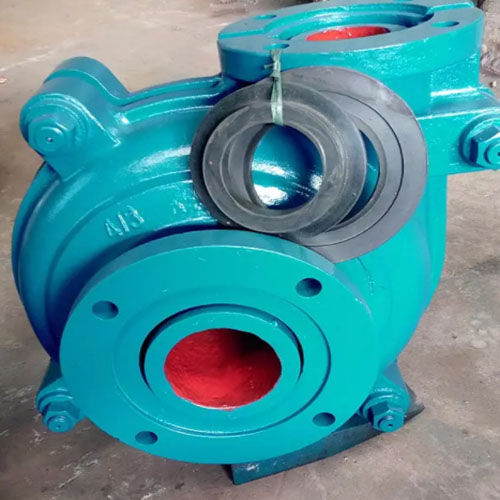

HUATAO heavy duty horizontal slurry pumps are designed to handle the transfer of abraisive and high density slurries in mining and heavy industry.
Technical Data
| Usage | Slurry, sewage and water |
| Capacity | 0- 3600m³/h |
| Head | 0-112m |
| Speed | up to 3200r/min |
| Inlet/ouetlet Size | DN25mm-DN350mm |
| Max Temperature | 110ºC |
| Drive | Electric or diesel |
Features:
1. Bearing assembly: large diameter shaft with short overhang
contributes to long bearing life.
2. Liners: Easily replaceable liners are bolted, not glued to the
casing for positive maintenance.
3. Casing: Casing halves of cast or ductile iron provide high
operating pressure capabilities.
4. Impeller: Front and rear shrouds have pump out vanes that reduce
recirculation and seal contamination.
5. Throatbush: Wear is reduced and maintenance simplified by the
use of tapered.


|
