Firestone W01-358-7008 Industrial Air Spring Air Bellows FS330-11 474 Goodyear 1B12-300/313

Industrial Air Spring Firestone W01-358-7008 / Air Bellows FS330-11 474/Goodyear 1B12-300/313

Product Information

Cross references are not a guarantee that a part will fit a specific application. Please check available information before replying on a cross reference to make a purchase.

Applications

Various applications for the vehicle industry such

---as steering damping, engine vibration damping, belt

---tensioning damping for engines and on driver seats in commercial vehicles, etc.

On household products such as washing machines

Special shock absorbers for bicycles

On commercial lawn movers

In the medical equipment industry ie. on wheelchairs

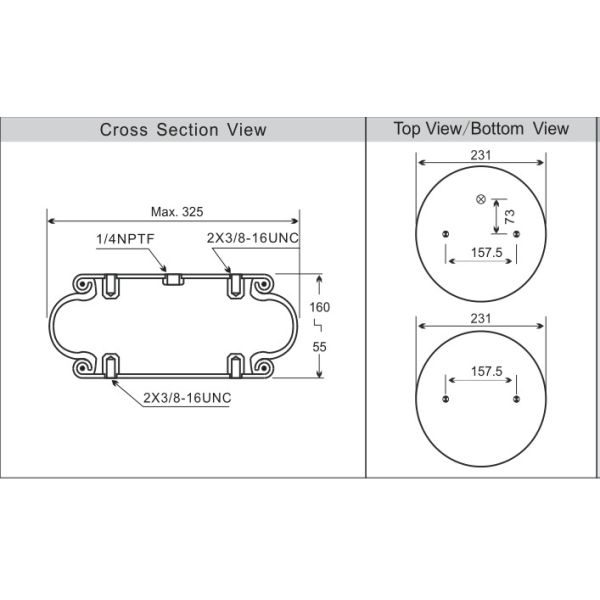

Detailed Data Drawing of Product

Air Spring Cover Plate Data

Top Cover Plate Diameter:231mm

Between Threaded Hole Distance on Top:157.5mm

Between Threaded Hole And Air Inlet Distance:73mm

Bottom Cover Plate Diameter:231mm

Between Threaded Hole Distance on Bottom:157.5mm

Air Spring Screw(Nut) Tooth Data

Screw(Nut) on Top Cover Plate:2X3/8-16UNC

Screw(Nut) on Bottom Cover Plate:2X3/8-16UNC

Air Spring Gas Hole/Air Inlet

Gas Hole/Air Inlet:1/4 NPTF

Air Spring Rubber Bellows Data

Rubber Bellows MAX Diameter:325mm

Air Spring Working Stroke Data

The Working Stroke:55mm~160mm

The Maximum Height:160mm

The Minimum Height:55mm

The Compressed Height:105mm
