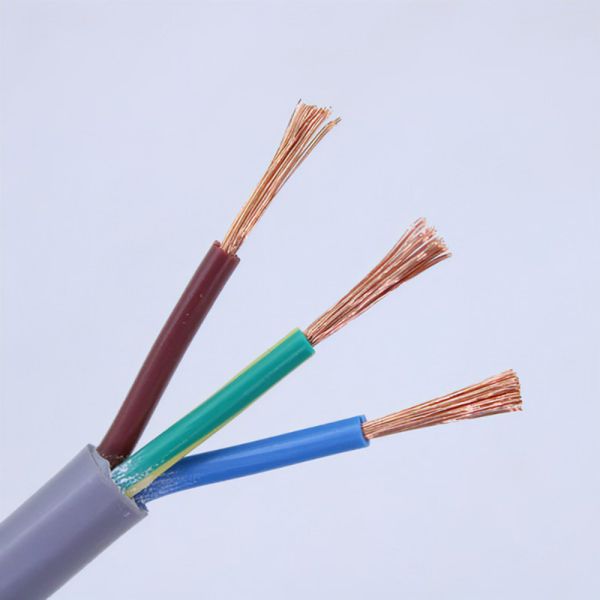

Household Sheathing Flexible Electrical Cable IEC 60228 3 Phase

Household wire oxygen free pure copper flexible cable RVV multi-core sheathed wire

Flexible Cable 6sqmm LV 3Core CU /PVC/PVC Rated Voltage:450/750V Electrical Cable Wire

1. Description:

Single core cables with copper conductor , ( solid, stranded or flexible ) and insulated with PVC compound. The cables are manufactured according to IEC 60227&BS 6004 specifications.

2. Construction:- Conductor :

Plain annealed circular copper according to IEC 60228 class 1,2 ,5 and 6.
- Insulation : PVC compound rated 70º C or 85º C for continuous operation

3. Applications :

Building wires fixed installation and laid in pipes for general applications

Application:

These cables are suitable for installing in dry applications only. They are use in radios, shavers, desk lamps and small portable equipment or use in office machines, hair dryers etc.and for appliances requiring an earth connection. Also suitable for use with double insulated appliances where the cord is not subject to mechanical stress.

• Product Name: RVV cable, RVV wire and cable
• Rated voltage: 300V / 500V.
• Conductor: stranded copper conductor
• Insulation: polyvinyl chloride mixture (PVC).
• Sheath: flexible polyvinyl chloride mixture (PVC)
• Number of cores: 2-5 cores, 7-36 cores (products outside CCC catalogue, without CCC certification).
• Sectional area: 0.75-2.5mm & sup2;, 0.5,2.5-35mm² (products outside CCC catalogue, no CCC certification).
• Test voltage: 2000V, 5min.
• Insulation resistance: > 200m Ω × KM.
• Service temperature: - 30 ~ + 70 ℃.
• Package specification: 100M, 500m, 1000m.
• Purpose: it is mainly used in power line, control line and signal transmission for electrical appliances, instruments, electronic equipment and automation devices. Specifically, it can be used in anti-theft alarm system, building intercom system, etc.

Specification and technical data of 300/500V wire Cross-sectional area Number of roots/diameter Outer diameter Conductor resistance at 20℃ 2*0.5 2*16/0.2 5.3 39 2*0.75 2*24/0.2 6.5 26 2*1.0 2*32/0.2 6.7 19.5 2*1.5 2*30/0.25 7.7 13.3 2*2.5 2*49/0.25 9.5 7.98 2*4.0 2*56/0.3 11.2 4.95 2*6.0 2*84/0.3 13.5 3.3 3*0.5 3*16/0.2 5.6 39 3*0.75 3*24/0.2 6.8 26 3*1.0 3*32/0.2 7.2 19.5 3*1.5 3*30/0.25 8.4 13.3 3*2.5 3*49/0.25 10.3 7.98 3*4.0 3*56/0.3 12.2 4.95 3*6.0 3*84/0.3 13.2 3.3 4*0.75 4*24/0.2 7.5 26 4*1.0 4*32/0.2 8.1 19.5 4*1.5 4*30/0.25 9.5 13.3 4*2.5 4*49/0.25 11.3 7.98 4*4.0 4*56/0.3 13.2 4.95 4*6.0 4*84/0.3 15 3.3 5*0.75 5*24/0.2 8.4 26 5*1.0 5*32/0.2 8.8 19.5 5*1.5 5*30/0.25 10.5 13.3 5*2.5 5*49/0.25 12.6 7.98 5*4.0 5*56/0.3 14.9 4.95 5*6.0 5*84/0.3 16.4 3.3
