| Categories | Steel Flange |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | ASTM A182 F316L |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Place of Origin: | China |
| MOQ: | 5 Pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Client's Requirements |
| Delivery Time: | 7-60 Days |
| Packaging Details: | Ply-wooden Case / Pallet |
| Standard: | ASTM A182, ASME SA182 |
| Material Grade: | F316L, UNS S31603 |
| Product Name: | Stainless Steel Flange |
| Type: | Threaded flange,Slip on Flange,socket weld flange,weld neck flange,LAP Joint Flange |
| Face Type: | RF, FF, RTJ |
| Pressure: | Class150-2500/ PN6-PN100 |
| Surface Treatment: | Heat Treament, Pickeling, Customize |
| Connection: | Welding,pipe and pipe,flange |
| Process: | Forged, Drilling/Bending/Stamping, Casting, Heating Treament |
| Applications: | Petroleum,Chemical,Oil And Gas, Marine System,etc |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

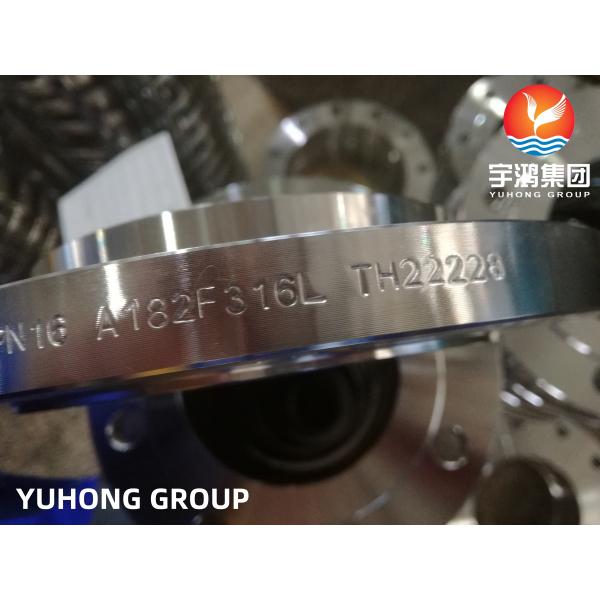

ASTM A182 F316L, UNS S31603 Stainless Steel Slip On Raised Face Forged Flange
ASTM A182 F316L Stainless Steel Flanges include nickel and molybdenum. Stainless steel F316L flanges have high strength requirements at temperatures above 500 degrees Celsius. ASTM A182 F316L flanges also suffer from stress corrosion cracking above 60 degrees Celsius. A182 F316L BLRF Flange is an austenitic Cr-Ni stainless steel. F316L is now commonly used in many industries, such as brewing, marine, food processing, and oil and gas. ASTM A182 F316L SORF Flange has strong oxidation resistance in intermittent service up to 870°C and continuous service up to 925°C. Continuous service between 425 – 860 degrees Celsius is not recommended if F316L stainless steel flanges need to be resistant to corrosion in water, but as for this lower carbon variation, F316L is recommended because of its resistance to carbide precipitation.
Specifications:
| Size | 1/2" (15 NB) to 48" (1200NB) |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Most common type | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique | Forged, Heat treated and machined |
| Connect Type / Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Chemical Composition:
| Grade | Mn | C | Si | P | S | Cr | Mo | Ni | N |
| SS316L | 2.0 max | 0.035 max | 1.0 max | 0.045 max | 0.03 max | 16.0–18.0 | 2.0–3.0 | 10.0–14.0 | 68.89 min |
Mechanical Properties:
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HRB) max | Brinell (HB) max | ||||
| SS316L | 485 | 170 | 40 | 95 | 217 |
Physical properties:
| Grade | Density (g/cm3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| SS316L | 8.0 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Applications:
Power Plant
Oil and Gas Industry
Food Processing Industry
Pipeline Industry
Ship Building Industry
Paper and Pulp Industry
Chemical Industry
|
