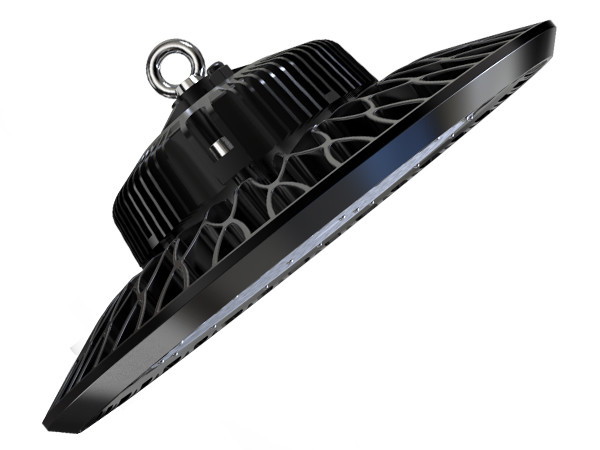

SMD3030 UFO High Bay Light Die Castign Al Black Shell Corrosive Resistant Powder Coated

SMD3030 UFO High Bay Light Die Castign Al Black Shell Corrosive Resistant Powder Coated

SMD3030 UFO High Bay Light Die Castign Al Black Shell Corrosive Resistant Powder Coated
SMD3030 UFO High Bay Light Die Castign Al Black Shell Corrosive Resistant Powder Coated
Categories UFO LED High Bay Light
Brand Name: DUALRAYS
Certification: CE ROSE UL SAA
Place of Origin: CHINA
MOQ: 2
Price: good price with good quality(low price with bad qualty)
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50000/month
Delivery Time: within 1 week
System Watts/W: 100W 150W 200W 240W 300W
LEDs Light Source: SMD3030
Color: Black
certificates: CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
Contact Now
Company Info.
DUALRAYS LIGHTING Co.,LTD.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SMD3030 UFO High Bay Light Die Castign Al Black Shell Corrosive Resistant Powder Coated

Customers's No 1 choose 2022 NEW UFO LED High Bay

> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity;
> High Brightness LUMILEDS LUXEON SMD3030 2D LEDs, SOSEN/Meanwell HBG/ELG/HLG Round/Rectangle
Driver;
> IP65 / IK08 Protection;
> 60°/90° (with Pearl or Stripe Lens)/120° (without PC or Toughened Glass Cover) /140° (with Grille Stripe PC
Cover) beam angle optional;
> Corrosive Resistant Powder Coated Finish;
> D-Mark tested for the use in paper production,wood processing etc with toughened glass;
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;
> Safety chain reserved for labor cost saving and double safety assurance;
> No UV or IR and completely mercury free;
> L70/B20 @ 70.000h;
> Customized supported for special projects;

Options:
> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen;
> Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;
> Reflector : PC reflector / Al reflector;
> Lens : 60°/90° (with Pearl or Stripe Lens)/120° (without PC or Toughened Glass Cover) /140° (with Grille
Stripe PC Cover);
> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement
Model No.
DR-HB100-EGXPDR-HB150-EGXPDR-HB200-EGXPDR-HB240-EGXPDR-HB300-EGXP
System Watts/W
100W150W200W240W
300W
System Efficiency/LPW
140LPW
Lumen Output/lm
14.000±5%21.000±5%28.000±5%33.600±5%42.000±5%
Rated Input Voltage/V
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
SMD3030
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
60°/90°/120°/140°
UGR
<25
Surge Protection
3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
Meanwell HBG/ELG/HLG,Sosen
IP Rating
IP65
Dimming(Optional)
0/1-10V/DALI/Zigbee
Sensor(Optional)
Motion Sensor,Daylight Sensor
Emergency(Optional)
Available (30W @ 3Hrs for Standard)
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs
70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)
Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power
100W
150W
200W
240W
300W
A / mm
Ø280
Ø338
Ø400
Ø400
Ø440
B / mm
164
182
164
172
182







DALI Device


DALI Intelligent Control Diagram


DALI Intelligent Control Operator Interface














Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-HB100-EGXP
4.2
355*350*165
4.9
1PCS/CTN
DR-HB150-EGXP
4.6
415*410*175
5.4
1PCS/CTN
DR-HB200-EGXP
4.8
475*470*195
5.6
1PCS/CTN
DR-HB240-EGXP
6.9
475*470*195
7.8
1PCS/CTN
DR-HB300-EGXP
7.5
500*495*195
8.8
1PCS/CTN
