Metal Hot Rolled Flat Turbine Blade Steel AMS 5504 AMS 5505

Categories Turbine Blade Steel
Brand Name: ANSTEEL,TISCO,BAOSTEEL,PANGANGGROUP
Model Number: AMS 5504,AMS 5505
Certification: SGS,TUV,BV,ISO,MTC
Place of Origin: China
MOQ: 600kg or Negotiations
Price: Negotiations
Payment Terms: T/T
Supply Ability: 500000KGS/Month
Delivery Time: Ex-stock for delivery: 3-8 days Production lead time: 40-45 days
Packaging Details: Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
Product name: AMS 5504 / 5505 Turbine Blade Steel
Executive Technical Standard: AMS etc.
Grades: AMS 5504,AMS 5505
Processing methods: Peeled,Milled,Machined etc.
Heat treatment condition: Quenched+Tempered etc.
Surface: Bright,Centreless Ground etc.
Profile: Round Bar,Flat Bar etc.
Price Term: Ex-work, FOB
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Metal Hot Rolled Flat Turbine Blade Steel AMS 5504 AMS 5505

AMS 5504 AMS 5505 Turbine Blade Steel AMS 5504 5505 Round Bar AMS 5504 5505 Flat Bar


Description

Our company provides
AMS 5504 / 5505 Forged Turbine Blade Steel AMS 5504 / 5505 Peeled Round Bar AMS 5504 / 5505 Hot Rolled Flat Bar.
All of AMS 5504 / 5505 Forged Turbine Blade Steel AMS 5504 / 5505 Peeled Round Bar AMS 5504 / 5505 Hot Rolled Flat Bar conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.


  • Material:Metal,Turbine Blade Steel,AMS 5504 / 5505.

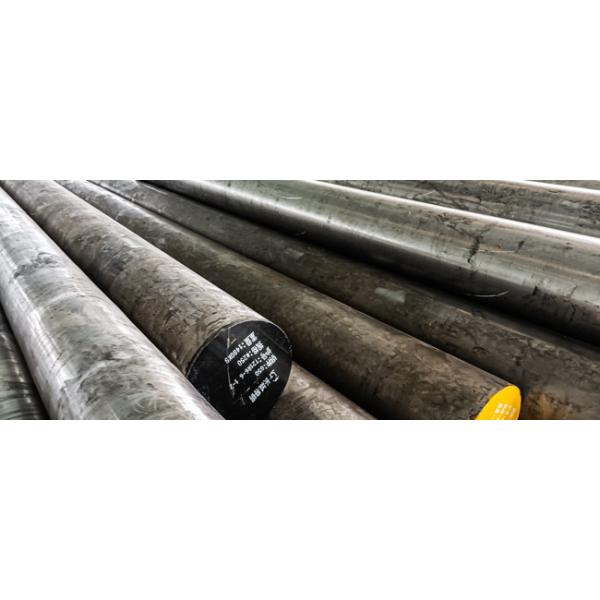

  • Round bar / Wire rod (Diameter): 5.5mm to 800mm / Square bar / Flat bar: 3mm to 800mm
  • AMS 5504 / 5505 Forged Turbine Blade Steel AMS 5504 / 5505 Peeled Round Bar AMS 5504 / 5505 Hot Rolled Flat Bar Forging piece: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.


Products Details


AMS 5504 / 5505 Forged Turbine Blade Steel AMS 5504 / 5505 Peeled Round Bar AMS 5504 / 5505 Hot Rolled Flat Bar.


Chemical Composition (weight%):

C (%):

≤ 0.15

Si (%):

≤ 1.00

Mn (%):

≤ 1.00

P (%)

≤: 0.040

S(%):

≤0.030

Cr (%):

11.5 ~ 13.5

Ni (%):

≤ 0.75

Mo(%):

-


Mechanical Properties Under Final Heat Treatment:Condition: annealing
Tensile strength, σb/MPa: 485Yield strength, σ0.2/MPa: 275Elongation, δ(%): 20Reduction of area, ф(%): 45Hardness | HRB:


Applications:

AMS 5504 / 5505 Forged Turbine Blade Steel AMS 5504 / 5505 Peeled Round Bar AMS 5504 / 5505 Hot Rolled Flat Bar It is suitable for applications such as high tensile shafts, bolts and nuts, gears, pinions spindles and so on.

Equivalent Grade
X12Cr13
SUS 410
STS 410
X12Cr13/1.4006
X12Cr13
X12Cr13
410S21
410/S41000



AMS 5504 / 5505 Forged Turbine Blade Steel AMS 5504 / 5505 Peeled Round Bar AMS 5504 / 5505 Hot Rolled Flat Bar.


FAQ


Q: How do you control the quality?


A: We have professional inspectors to analyze the chemical composition of AMS 5504 / 5505 Forged Turbine Blade Steel AMS 5504 / 5505 Peeled Round Bar AMS 5504 / 5505 Hot Rolled Flat Bar and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.


Q: Do you accept customization?


A: Yes. If you have special requirements for products or packaging, we can make them for you.


Q: Can you accept trial orders?


A: Our MOQ is usually 1 ton. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.


Q: How do I get samples?


A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.
