| Categories | Omron CS1D |
|---|---|
| Place of Origin: | China/Japan |
| Brand Name: | Omron |
| Model Number: | CS1D-PA207R |
| Packaging Details: | Carton packaging |
| Supply Ability: | 10pc/per week |
| MOQ: | 1/pc |
| Price: | $50-500 |
| Payment Terms: | T/T, western union |
| Type: | Controllers |
| Condition: | 100% Original |
| Color: | Black |
| Delivery Time: | Within 3 Working Days |
| Package: | 100% Original Package |
| Warranty: | 1 Year |
| Shipping term: | TNT DHL FEDEX EMS UPS |
| Payment term: | T.T WESTUNION |
| Mount: | Cable |
| Length: | 2.3 foot |
| Port: | Selectable |
| Company Info. |
| Changsha Zhinian Automation Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

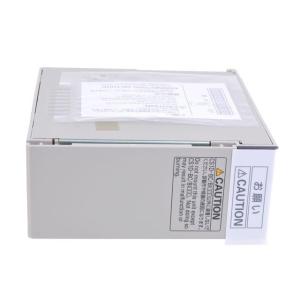

Omron PLC CS1D Power Supply Unit CS1D-PA207R with AC input
| Item Power Supply Unit | Specifications | ||
| CS1D-PA207R | CS1D-PD024 | CS1D-PD025 | |
| Power supply voltage | 100 to 120 V AC/200 to 240 V, 50/60 Hz | 24 V DC | |
| Operating voltage range | 85 to 132 V AC/170 to 264 V | 19.2 to 28.8 V DC | |
| Power consumption | 150 VA max. | 40 W max. | 60 W max. |
| Inrush current | 100 to 120 V AC: 30 A max. 200 to 240 VAC: 40 A max. | 30 A max. | |
| Power supply output capacity | 5 V DC, 7 A (including the CPU Unit power supply) 26 V DC, 1.3 A Total: 35 W | 5 V DC, 4.3 A (including the CPU Unit power supply) 26 V DC, 0.56 A Total: 28 W | 5 V DC, 5.3 A (including the CPU Unit power supply) 26 V DC, 1.3 A Total: 40 W |
| Power supply output terminal | Not provided. | ||
| RUN output *1 | Contact configuration: SPST-NO Switch capacity: 240 V AC, 2 A (resistive load) 120 V AC, 0.5 A (induction load) 24 V DC, 2 A (resistive load) 24 VDC, 2 A (induction load) | Not provided. | |
| Insulation resistance | 20 MΩ min. (at 500 V DC) between AC external and GR terminals *2 | 20 MΩ min. (at 500 V DC) between DC external and GR terminals *2 | |
| Dielectric strength | Between AC external and GR terminals *2: 2,300 V AC 50/60 Hz for 1
min Leakage current: 10 mA max. Between DC external and GR terminals *2: 1,000 V AC 50/60 Hz for 1 min Leakage current: 10 mA max. | Between DC external and GR terminals *2: 1,000 V AC 50/60 Hz for 1
min Leakage current: 10 mA max. | |
| Noise immunity | 2 kV on power supply line (conforming to IEC61000-4-4) | ||
| Vibration resistance | 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8
m/s2 in X, Y, and Z directions for 80 minutes (Time coefficient: 8
minutes ´ coefficient factor 10 = total time 80 minutes) (When mounted on a DIN Track: 2 to 55 Hz, acceleration of 2.9 m/s2 in X, Y, and Z directions for 20 minutes) (conforming to IEC60068-2-6) | ||
| Shock resistance | 147 m/s2 3 times each in X, Y, and Z directions (conforming to IEC60068-2-27) | ||
| Ambient operating temperature | 0 to 55°C | ||
| Ambient operating humidity | 10% to 90% (with no condensation) | ||
| Atmosphere | No corrosive gases | ||
| Ambient storage temperature | -20 to 75°C (excluding battery) | ||
| Grounding | Less than 100 Ω | ||
| Enclosure | Mounted in a panel. | ||
| Weight | Each Rack: 6 kg max. | ||
| CPU Rack dimensions (mm) | CS1D-BC052 (5 slots, Duplex CPU System) and CS1D-BI082S (8 slots, Single CPU System): 505 ´ 132 ´ 123 mm (W ´ H ´ D) *2 | ||
|
