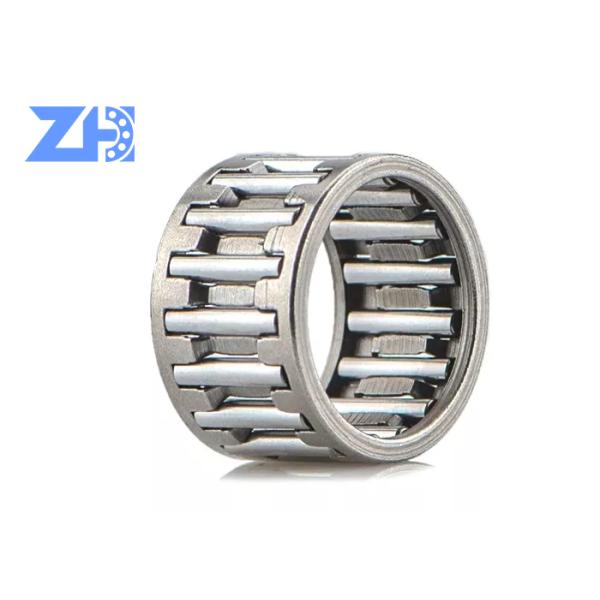

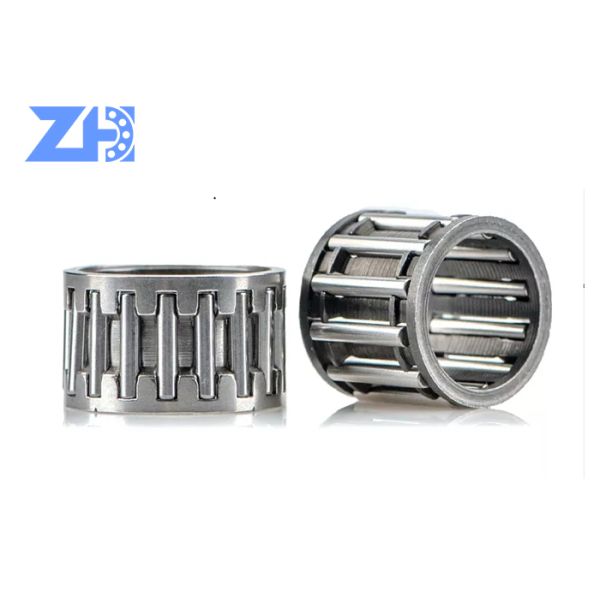

Stainless Steel Drawn Cup Needle Roller Bearing 234353 234-353

Stainless Steel Drawn Cup Needle Roller Bearing 234353 234-353

Needle roller bearings have small axial section dimension, good rigidity and capacity to carry high radial loads, which are suitable for limited radial installing when positions. These are widely applied under working situation with swinging shaft and bearing housing. However, needle roller bearing can only carry pure radial load, but, can’t prevent the axial displacement between shaft and bearing housing. In addition, the angle error for inner axle and outer axle is not allowed.

Needle roller bearings have a large carrying capacity and are suitable for supporting structures with limited installation dimensions.
The surface of the journal is hardened as the rolling surface, and the bearing is fitted into the seat hole with a press fit, and there is no need for it to be axially positioned.
The bearing should be injected with an appropriate amount of grease before installation.
Usually, no relubriexcavatorion is required after assembly (BK type bearings are used in the support of the journal without the protruding end, the end face is closed for sealing, and can withstand small axial movement.)

Appliexcavatorion of Needle roller bearing

Depending on the field of activity and appliexcavatorion, needle roller and cage assemblies can be integrated between the rings to strengthen the assembly and ensure the connection between the various mechanical parts.
Therefore, needle roller bearings come in many forms (cages, bushes, bearings with solid rings, combination bearings, needle roller thrust bearings, cam followers, etc.) to meet all technical constraints of the industrial market.
The smallest cross-section in a rolling bearing is Needle roller and cage assemblies provide a very compact solution for appliexcavatorions where space is limited.

High load capacity

Due to the large number of rollers, the needle roller and cage assembly has a high load-carrying capacity.
high stiffness
The needle roller and cage assembly has high stiffness due to the large number of small diameter rollers.
These bearings combine robustness, precision and durability across all industrial markets and are very common, especially in:
car
two wheelerPortable tools (drills, chainsaws)
construction machinery
pump and motor

Seal:	open
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Inner Ring:	no
Cage Material:	Stainless Steel
Rows of Rolling Elements:	single row
Magnetic:	yes

Parameters of Needle roller bearing

New domestic models	Old domestic model	Inner diameter (mm)	Outer diameter (mm)	Width(mm)	Cr(kN)	Cor(kN)	Grease lubriexcavatorion speed (r/min)	Oil lubriexcavatorion speed (r/min)	Weight (kg)
NAV4003	4074103	17	35	18	–	–	–	–	0.098
NAV4004	4074104	20	42	22	–	–	–	–	0.175
RNAV4016	4084116	100.3	125	45	–	–	–	–	0
RNAV4015	4084115	92.7	115	40	–	–	–	–	1.025
RNAV4014	4084114	88	110	40	–	–	–	–	0.982
RNAV4013	4084113	80.3	100	35	–	–	–	–	0.692
RNAV4012	4084112	74.6	95	35	–	–	–	–	1.025
RNAV4011	4084111	69.8	90	35	–	–	–	–	0.645
RNAV4010	4084110	62.1	80	30	–	–	–	–	0.426
RNAV4009	4084109	57.4	75	30	–	–	–	–	0.39
RNAV4008	4084108	51.6	68	28	–	–	–	–	0.304
RNAV4007	4084107	45.9	62	27	–	–	–	–	0.259
RNAV4006	4084106	40.1	55	25	–	–	–	–	0.193
RNAV4005	4084105	33.5	47	22	–	–	–	–	0.129
RNAV4920	4084920E	115	140	40	–	–	–	–	0
RNAV4919	4084919E	110	130	35	–	–	–	–	0
RNAV4918	4084918E	105	125	35	–	–	–	–	0
RNAV4916	4084916E	90	110	30	–	–	–	–	0
RNAV4914	4084914E	80	100	30	–	–	–	–	0
RNAV4912	4084912E	68	85	25	–	–	–	–	0
RNAV4910	4084910E	58	72	22	–	–	–	–	0
RNAV4909	4084909E	52	68	22	–	–	–	–	0
RNAV4908	4084908E	48	62	22	–	–	–	–	0
RNAV4907	4084907E	42	55	20	–	–	–	–	0
RNAV4906	4084906E	35	47	17	–	–	–	–	0
RNAV4905	4084905E	30	42	17	–	–	–	–	0
RNAV4904	4084904E	25	37	17	–	–	–	–	0
RNAV4903	4084903E	22	30	13	–	–	–	–	0
RNAV4902	4084902E	20	28	13	–	–	–	–	0
NA6901	6544901	12	24	22	16.3	21.7	27000	–	0.045
NA6902	65449O2	15	28	23	18.4	27.1	22000	–	0.062
NA6903	6544903	17	30	23	18.9	29	20000	–	0.067
NA6904	65449O4	20	37	30	35.4	48.9	17000	–	0.137
NA6905	6544905	25	42	30	40.1	60.7	15000	–	0.162
NA6906	6544906	30	47	30	42.7	69	13000	–	0.186
NA6907	6254907	35	55	36	51.4	85.1	11000	–	0.297
NA6908	6254908	40	62	40	66.7	115	9400	–	0.415
NA6909	6254909	45	68	40	70.7	127	8800	–	0.496
RNA6901	6644901	12	24	22	16.3	21.7	27000	–	0.03
RNA6902	6644902	15	28	23	18.4	27.1	22000	–	0.038
RNA6903	6644903	17	30	23	18.9	29	20000	–	0.04
RNA6904	6644904	20	37	30	35.4	48.9	17000	–	0.096
RNA6905	6644905	25	42	30	40.1	60.7	15000	–	0.112
RNA6906	6644906	35	47	30	42.7	69	13000	–	0.126
RNA6907	6354907	42	55	36	51.4	85.1	11000	–	0.182
RNA6908	6354908	48	62	40	66.7	115	9400	–	0.247
RNA6909	6354909	52	68	40	70.7	127	8800	–	0.334
NA6910	6254910	50	72	40	74	140	7900	–	0.497
NA6911	6254911	55	80	45	86.7	165	7300	–	0.711
NA6912	6254912	60	85	45	90.8	179	6800	–	0.765
NA6913	6254913	65	90	45	98.4	190	6400	–	0.798
NA6914	6254914	70	100	54	132	271	5700	–	1.37
NA6915	6254915	75	105	54	135	283	5400	–	1.44
NA6916	6254916	80	110	54	140	304	5100	–	1.46
NA6917	6254917	85	120	63	165	390	4600	–	2.29
NA6918	6254918	90	125	63	167	403	4400	–	2.31
NA6919	6254919	95	130	63	173	428	4200	–	2.43
NA6920	6254920	100	140	71	–	–	–	–	–
