| Categories | Steel Grate Stair Treads |
|---|---|
| Brand Name: | Kaiheng Wire Mesh |
| Model Number: | kh118 |
| Certification: | ISO 9001:2015 |
| Place of Origin: | Anping,Hebei,China |
| MOQ: | negotiation |
| Price: | real-time quotes |
| Payment Terms: | Western Union, MoneyGram, T/T, D/A, L/C |
| Supply Ability: | 2000㎡ per day |
| Delivery Time: | negotiation |
| Packaging Details: | Galvanized iron sheet binding & Wooden Pallet/Steel Pallet Or As required |
| name: | T4 Stair Tread |
| color: | silver white |
| material: | carbon steel q235，zinc |
| surface: | hot dip galvanizing |
| bearing bar pitch: | 40mm |
| Width（mm）: | 115,155,195,235,275,315 |
| cross bar pitch: | 10cm |
| Section size of flat steel（mm）: | 25*3,25*5,32*5,40*5 |
| Maximum Length（mm）: | 450,750,1200,1500 |
| performance: | corrosion resistance and Load bearing |

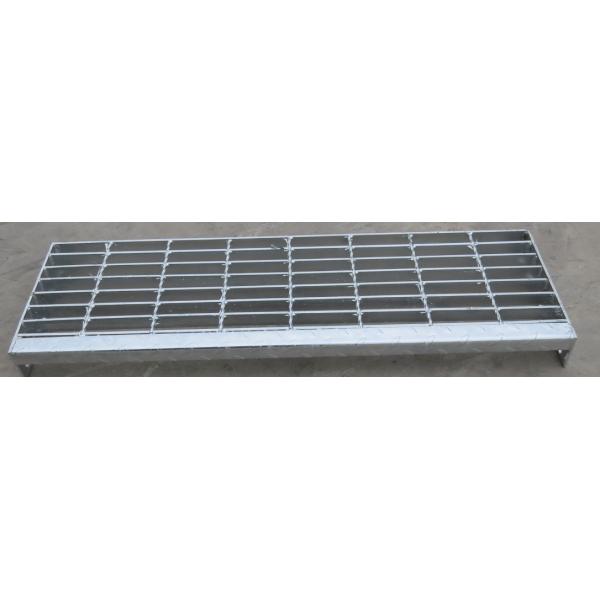

T4 type steel ladder step grating plate with 40mm flat steel
spacing is the lightest and most economical model. It is an ideal
choice when the span is small. It adopts load flat steel and cross
bar longitude and latitude to design a steel ladder step plate
grating with rectangular grid holes. The side plate size of T4 type
is 65mm * 5mm flat steel, and the bolt hole spacing varies
according to the width of the step plate. See the parameter table
for details.
| name | T4 model 40mm bearing bar pitch stair tread grid |
| color | silver white |
| material | carbon steel q235 or as your required |
| surface | hot dip galvanizing |
| performance | Economical and light, corrosion-resistant, high load-bearing, convenient installation and disassembly |
| bearing bar pitch(mm) | 40mm |
| grid width(mm) | 115,155,195,235,275,315 |
| bearing bar(mm*mm) | 25*3,25*5,32*5,40*5 |
| Maximum Length(mm) | 450,750,1200,1500 |
| standard | iso9001:2015 |
| transportation | shipping |
| Side plate size(mm*mm) | 65*5 |
| Bolt hole spacing(mm) | 45,75,75,100,150,150 |
T4 type steel ladder step plate with a spacing of 40mm has the
strongest resistance in the scene of surface impact due to the
small spacing of flat steel and high density of load flat steel.
Moreover, the hot-dip galvanizing treatment process can make it
more corrosion-resistant. It is most widely used in the industrial
field. In addition, its grid hole structure can show advantages in
rainy and snowy weather, free from manual maintenance and cleaning.
Compared with concrete structure, this material has the advantages
of light structure and low price.
This specification has multiple width recommendations in the
attribute table, and a variety of flat steel section specifications
correspond to different widths and lengths. If you need to

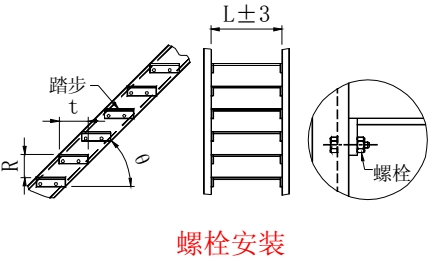

customize, you can refer to the length and width in the drawing
design to select the corresponding flat steel model
recommendations. Please send the request to email:
info@cnkaiheng.com
|
