2022 hot sale 3 phase digital ammeter current kwh with RS485

Categories Digital meter
Place of Origin: Zhejiang, China
Brand Name: Gomelong
Model Number: OML-8119
Display Type: Digital Only
Measuring Range: Oem
Accuracy Class: Class0.5
Operating Temperature: -10-45℃
Dimensions: 72/80/96/120
Display: LED Display
Key words: power meter
Frequency: 50/60 HZ
Overload: Permanent: 1.2 times; temporary: 2 times/10s
Operation range: AC220V or SMPS: AC/ 80~270V
Communication: RS-485, MODBUS-RTU protocol
Material: ABS
Measure: active/reactive power
Installation method: Embedded
Price: $9.00/Pieces
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2022 hot sale 3 phase digital ammeter current kwh with RS485

Please contact us to confirm the parameters before purchase and there are more offers.

Product Description



.

Product Description

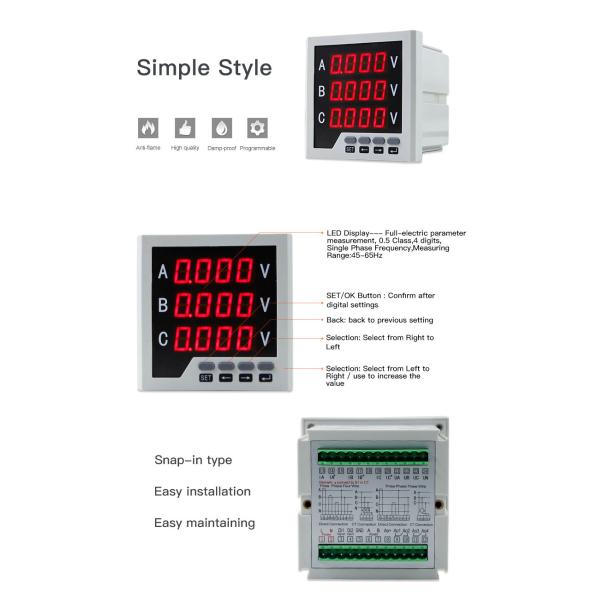

Three phase Voltage meter measure Voltage in the power grid by AC sampling technique. The meter are programable and able to set the ratio by pressing the keys on the panel.with features of convenient installation.Easy wiring and maintenance,

programable at site etc. The meters can also proceed the network communication between different PLC and industrial control computers among the industry.

Technical Data

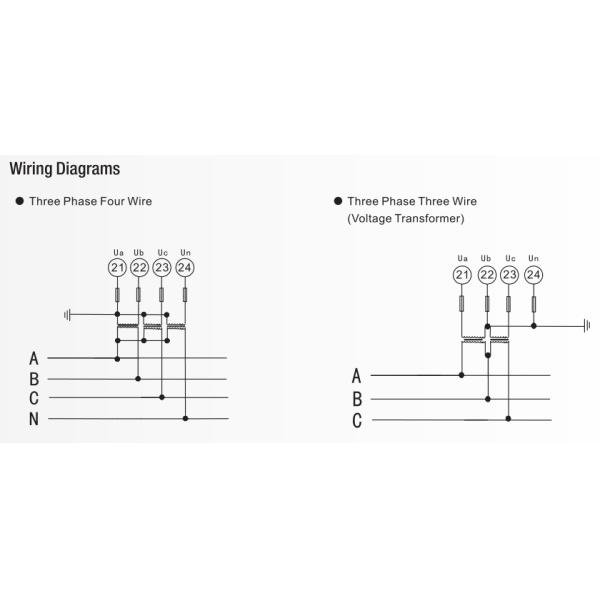

Wiring

Three phase

Rated current

AC5A

Rated voltage

0-500VAC or 0-100VDC

Overload

Permanent: 1.2 times; temporary: 2 times/10s

Accuracy

Class 0.5

Frequency

45-65 Hz

Operation range

AC400V

Working range

AC 80V~270V,AC 220V,AC 380V,AC 100V

Power consumption

≤ 5VA

Communication

RS-485, MODBUS-RTU protocol

Working temperature

-10~+55℃

Relative humidity

≤93 %,in the place without corrosive gas
