| Categories | Folding Boom Crane |
|---|---|
| Brand Name: | OUCO |
| Model Number: | OUCO-0.6T8M-KTB |
| Certification: | ABS/CCS/BV/ISO9001 |
| Place of Origin: | Jiangsu. China |
| MOQ: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets per year |
| Delivery Time: | 45working days |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| SWL: | 0.6T8M |
| Working Radius: | 3-8m |
| Hoisting Speed: | 0-12m/min |
| Slewing Speed: | 0-1r/min |
| Slewing Angle: | 360° |
| Hoisting height: | 20m |
| Power: | 15kw |
| DEAD WEIGHT: | 1250kg |
Product description

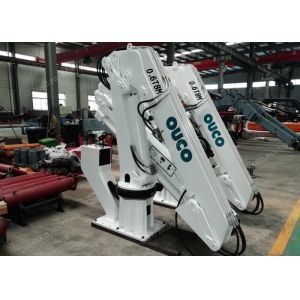

OUCO offers you 0.6T8M knuckle and telescopic boom cranes that can
be carried on cargo ships or fishing boats to perform cargo lifting
work and fishing work.
This crane can lift 0.6T cargo at 8M with a working radius of
3m~8m.
OUCO is a marine crane manufacturer, we specialize in marine crane
related services.
In addition to this crane, we can also customize other types of
cranes for you, if you provide us with the relevant parameters
required.
Foldable Boom Marine Crane Advantages
1. This special design allows the crane to shrink and fold when not
in use, taking up less space on the ship's deck.
2. We can deliver the crane to you complete, providing guidance for
installation on your boat.
3. Convenient for your regular maintenance and inspection.
4. Easy to operate, flexible and more lifting points.
5. Relevant supporting components and spare parts are provided
together.
Specification
| SWL | 0.6T8M |
MAX. WORKING RADIUS | 8M |
| MIN. WORKING RADIUS | 3M |
| HOISTING SPEED | 0-12M/MIN |
| HOOK TRAVEL | 20m |
| SLEWING SPEED | 0-1R/MIN |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~35S |
| BOOMS EXTENSION TIME | ~60S |
| LUFFING ANGLE | 0-75° |
DESIGN TEMPERTURE | -10 - 45 ° |
| WORKING CONDITION | TRIM ≤2° |
| HEEL ≤5° | |
| Power | 15 kw |
| POWER RESOURCE | AC380V 50HZ |
| DEAD WEIGHT | 1250KG |
GA Drawing
Detail Picture
Customer Bulid
OUCO factory specializes in crane field for over 10 years. OUCO can
design and manufacture any type cranes based on your requirements.
To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided.
Brand | OUCO |
Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
Packing | container |
Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |
custom equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request
Standard equipment
# 360 C* continuous rotation.
# -10 C*----+45 C* working temperature.
# certified A36 & S690 steel structure.
# pedestal ready for mounting or weld to vessel main structure .
# stainless steel grease nipples.
# precise step less speed control.
# simultaneous operations of 2 or more function.
# emergency for hydraulic stop device.
# visual and audible warning alarm
Our Factory
For more details, please feel free to contact us.
|
