BeCu Copper Rods C17300-H 1.0mm Dia 2000mm L For Probe Pin

BeCu Copper Rods C17300-H 1.0mmdia. x 2000mmL Used For Probe Pin

Product Description:

Name: BeCu copper rods

Grade: C17300

End Product Form: Rods/ Bars

Standard: ASTM B196, QQ-C-530

State of product: H(TD04)

Processing: Seamless / Welding

Feature: With high strength and high conductivity

Package: Pack in coil+waterproofing winding film+Drier+Wooden Case

Specification: 1.0mmdia. x 2000mmL

What are the Properties of BeCu Copper?
Properties of BeCu:
Beryllium copper is a ductile, machinable, and weldable alloy.
BeCu has an excellent response to precipitation-hardening treatments.
BeCu has excellent thermal conductivity (62 Btu/ft-deg.F-H), and it is about 3-5 times more conducting than Tool steel.
It shows resistance to stress relaxation.
It is resistant to non-oxidizing acids such as hydrochloric acid (HCl) and carbonic acid (H2CO3), to plastic decomposition products, to abrasive wear, and galling.
It can be heat-treated for increased strength, durability, and electrical conductivity.
Beryllium copper displays the maximum strength (up to 1,400 MPa (200,000 psi)) of any copper-based alloy.

CUBERYLLIUM ®-173 also named -C17300 (CDA 173) offers the strength properties of C17300 with the added benefit of being “free machining”. C17300 rod and wire contain a small amount of lead to provide an alloy tailored for automatic machining operations. Lead promotes formation of finely divided chips thus extending cutting tool life.

Chemical Composition of BeCu Copper C17300:

Note: Copper plus additions equal 99.5% minimum.

Typical Physical Properties of BeCu Copper C17300:

Density: 8.36g/cm3

Density before age hardening: 8.25g/cm3

Melting Range: 870~980℃

Elastic Modulus((kg/mm2 (103)): 13.4

Thermal Expansion Coefficient(20 °C to 200 °C m/m/°C): 17 x 10 -6

Thermal Conductivity(cal/(cm-s-°C)): 0.25

Mechanical and Electrical Properties of BeCu Copper Rod C17300:

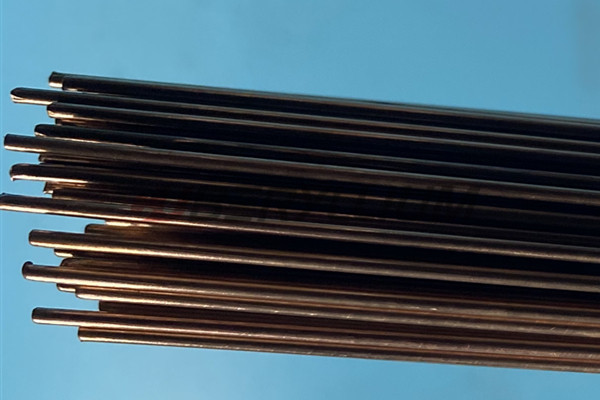

Product Photo:

FAQ:

Q1: What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil.

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.

Cuberyllium Metal Technology Co.,Ltd., is a national-level high-tech company. It is a production-oriented enterprise mainly engaged in the production of high-performance beryllium copper materials.

CUBERYLLIUM^® established in 2002 years and located in Zhejiang Prov., China. It is a member of “CUBERYLLIUM^®” Group which was founded in 1998 with a long experience of Beryllium Copper Alloy.

At present, “CUBERYLLIUM^®” Group has developed into three production bases in Zhejiang, Jiangsu and Shanxi, covering more than 30000 square meters with more than 120 employees.

"CUBERYLLIUM^®" Group is a professional manufacturer which based on production and development of beryllium copper alloy, with well equipped testing facilities and strong technical force, good quality and reasonable price.

CUBERYLLIUM^®'s beryllium copper has high conductivity, high strength, wear resistance, fatigue resistance, corrosion resistance and other characteristics, widely used in aerospace, communications, welding, chemical petroleum and medical fields.
