21K-26-71100 KBB0840-35001 KOMATSU PC160LC-7 Excavator Swing Reducer B0840-35002

• 21K-26-71100 21K2671100 KOMATSU PC160LC-7 Excavator Swing Reducer B0840-35002

• Spec Sheet

• Appliion

EXCAVATORS PC160 PC180 PC190 Komatsu

​

• More swing drive parts for KOMATSU machines

21K-25-00101 SWING CIRCLE ASS'Y

PC160, PC180, PC190, PW180

21S-70-2A200 SWING BRACKET ASS'Y

PC03

843000128 SWING MOTOR, ASSY.

PC05, PC07

843000146 SWING MOTOR, ASSY.

PC05, PC07

708-7S-00040 SWING MOTOR ASS'Y

PC38UU

806000041 SWING CIRCLE

PC12R, PC15R

154-69-00020 SWING DRAWBAR ASS'Y

D80A, D85A

20Y-26-00010 SWING MACHINERY A.

PC200, PC210, PC220, PC240

21N-26-00014 SWING MACHINERY A.

PC1000, PC1000SE, PC1000SP

21N-26-00012 SWING MACHINERY A.

PC1000, PC1000SE, PC1000SP

21N-26-00013 SWING MACHINERY A.

PC1000, PC1000SE, PC1000SP

21N-26-00020 SWING MACHINERY A.

PC1000, PC1000SE

706-75-01081 SWING MOTOR ASS'Y

PC200, PC210, PC220, PC240

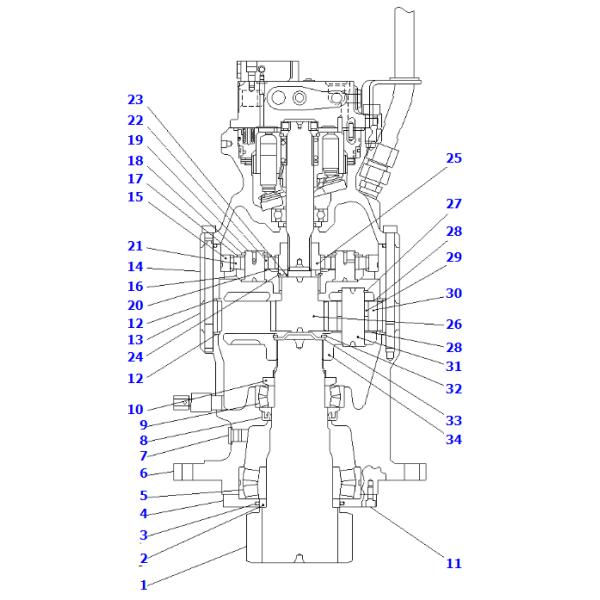

• Parts List Diagram

Pos.	Part No	Qty	Parts name	Comments
	21K-26-71100	[1]	SWING MACHINERY A. Komatsu	191 kg.
	["SN: K40001-UP"] |1.
	KBB0840-35001	[1]	GEAR BOX Komatsu China
	["SN: K40001-UP"] |1.
	KBB084B-35022	[1]	HOUSING ASS'Y Komatsu China
	["SN: K40001-UP"] |1.
1	KBB0841-34023	[1]	PINION Komatsu China
	["SN: K40001-UP"]
2	KBB0111-18052	[1]	COLLAR Komatsu	0.000 kg.
	["SN: K40001-UP"]
3		[1]	SEAL (K1) Komatsu China
	["SN: K40001-UP"]
4	KBB0841-41010	[1]	COVER Komatsu China
	["SN: K40001-UP"]
5	KBB0151-05401	[1]	BEARING Komatsu China
	["SN: K40001-UP"]
6	KBB0841-35034	[1]	HOUSING Komatsu China
	["SN: K40001-UP"]
7	KBB0111-24054	[1]	PLUG Komatsu China
	["SN: K40001-UP"]
9	KBB0151-05402	[1]	BEARING Komatsu China
	["SN: K40001-UP"]
10	KBB0141-30005	[1]	NUT Komatsu	0.000 kg.
	["SN: K40001-UP"]
11	KBB0141-12002	[6]	SCREW Komatsu China
	["SN: K40001-UP"]
13	KBB0841-42001	[1]	GEAR Komatsu	7 kg.
	["SN: K40001-UP"]
	KBB0841-42002	[1]	RING GEAR ASS'Y Komatsu China
	["SN: K40001-UP"] |14.
	KBB084B-01003	[1]	HOLDER KIT Komatsu China
	["SN: K40001-UP"] |16.
25	KBB0841-14005	[1]	GEAR Komatsu	0.000 kg.
	["SN: K40001-UP"]
26	KBB0841-14006	[1]	GEAR Komatsu	2.25 kg.
	["SN: K40001-UP"]
	KBB084B-01004	[1]	HOLDER KIT Komatsu	0.000 kg.
	["SN: K40001-UP"] |27.

• Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.

Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .

• Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts alog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

• Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
