Highway Emergency Telephone Vandal Resistant Outdoors SOS Telephone Pillar

Categories Roadside Emergency Phone
Brand Name: J&R
Model Number: JR-TP-03
Certification: CE, FCC, RoHS, ISO9001
Place of Origin: Shenzhen, China
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Delivery Time: 2-5 working days
Packaging Details: pearl cotton, carton
Material: Cold Rolled Steel
Color: Yellow , Red
Warranty: 2 Years
Weather protection: IP67
Customized: Yes
Vandal Resistant: Yes
Unit size: 1510 x 270x 210 mm
Weight: 30 KG
Company Info.
J&R Technology Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

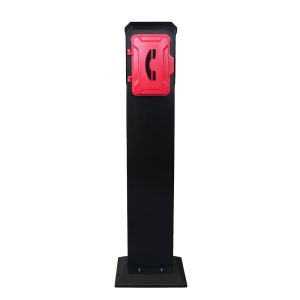

Highway Emergency Telephone Vandal Resistant Outdoors SOS Telephone Pillar

Highway Emergency Telephone Vandal Resistant Outdoors SOS Telephone Pillar

JR-TP-03 Emergency Telephone Pillar is an ideal security solution for remote and high-risk areas. Painted for outdoor use.

They are often used at university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.


  • Emergency Telephone Pillar, painted for outdoor use. Can choose to add LED lights
  • Mechanical characteristics: Sleek and harmonious design free of sharp edges, prepared for the containment of auxiliary circuits
  • Material: Made of galvanized steel, It can be manufactured in stainless steel
  • Colour: Custom black, Standard shipment is red (other colour on demand)
  • Fixing: on floor

MAIN FEATURES

- There are 3 options for the connecting (Analogue, SIP, 3G / 4G)

- Programmable for speed-dialing (PPT)

- Weather protection IP67

- Can be programmed remotely

- Telephone line powered for analogue phone

- Additional power supply required for VoIP or GSM type

- The material of the tower is cold rolled steel with powder coated body

- Vandal-resistant structure and coating designed to resist extreme weather conditions

- A variety of signage, graphics and colors choices are available

- CE, FCC, RoHS, ISO9001 Compliant


TECHNICAL PARAMETERS

Analogue Version
Power SupplyFrom the analogue telephone network
Supply Voltage24 VDC to 65 VDC
Supply Current20 mA DC to 100 mA DC
Ringer Volume

- 80dB(A) at a distance of 1 m

- 110dB(A) at a distance of 1 m (for external horn speaker)

Dialing MethodDTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power SupplyPoE or 12V DC
Power Consumption

-Idle:1.5W

-Active:1.8W

SIP ProtocolSIP 2.0 (RFC3261)
Support CodecG.711 A/U, G.722 8000/16000, G.723, G.729
Communication TypeFull duplex
Ringer volume

- 90~95dB(A) at a distance of 1 m

- 110dB(A) at a distance of 1 m (for external horn speaker)


Ambient conditions
Protection typeIP 67 as per EN60529
Operating temperature-40°C to +70°C
Storage temperature-45°C to +85°C

Package Information

Unit size: 1510 *270 *210 (mm)

Packaging materials: Pearl cotton, Wooden Box

Net weight: 30 KG

Gross weight: 35 KG


J&R Emergency Telephone Pillar are Installed Beside British Motorways
