| Brand Name: | StoneSawMachine.com |
| Model Number: | SMSJ-8.5/11.5 |
| Certification: | CE, ISO9001:2015, ISO14001:2015 |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, , T/T |
| Supply Ability: | 20 Sets Per Month |
| Delivery Time: | 30 days after deposit |
| Packaging Details: | Plastic FIlm |
| Type: | diamond wire saw |
| Application: | Cutting,Granite,Marble,Sandston and Concrete Cutting,Asphalt |
| Material: | Diamond and other ingredients |
| Usage: | Wet Only |
| Product name: | Spring Diamond Wire Saw |
| Advantage: | High Efficiency Long Life Time,High working efficiency,high quality,Fast Cutting,15 years experience |

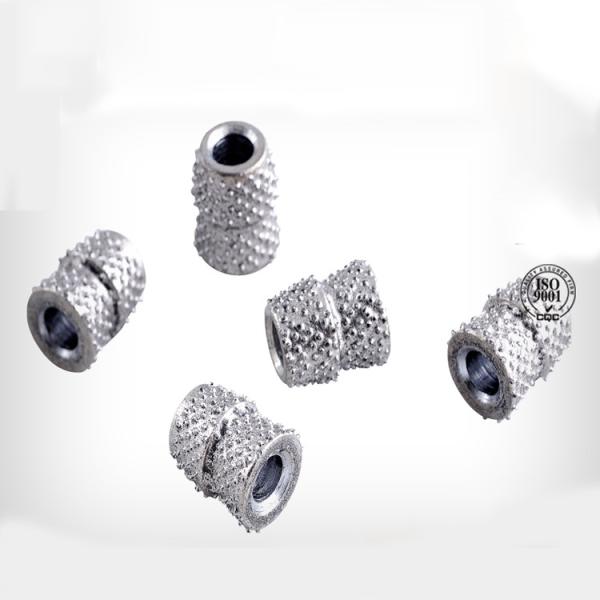

| Beads type: | Sintered,Electroplated,Brazed |
| Diameter: | 8.5mm to 11.5mm |
| Size: | 8.5mm,7.0-11.5mm |
| Business type: | Manufacturer |
| Keywords: | diamond wire saw rope |
| Color: | Customized |
| Packing: | or as request |
| Grade: | A-GRADE |
| Fixed way: | rubber,Spring/Rubber/Plastic |
| Package: | 50Meter/Roll,Waterproof |
| Company Info. |
| Xiamen Sino Universal Machinery |
| View Contact Details |
| Product List |

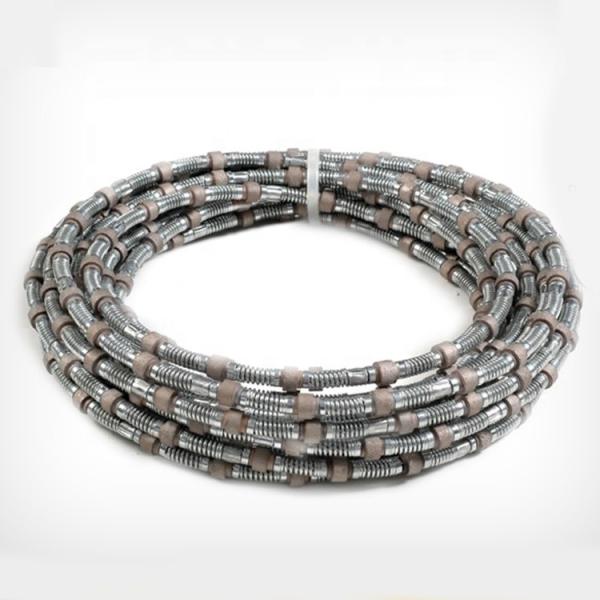

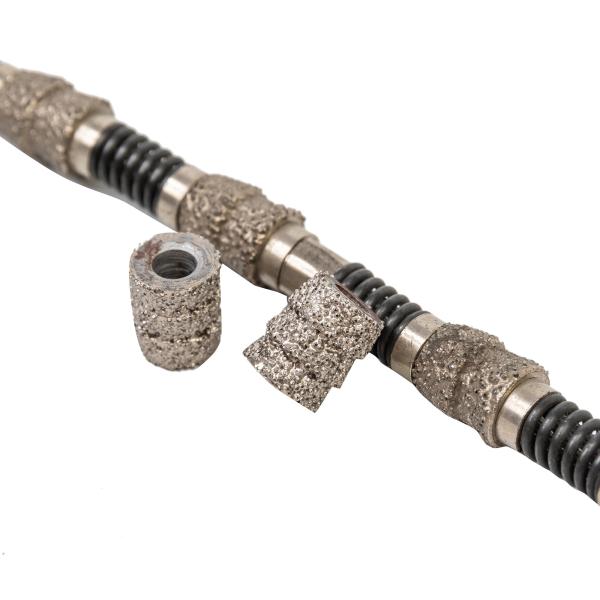

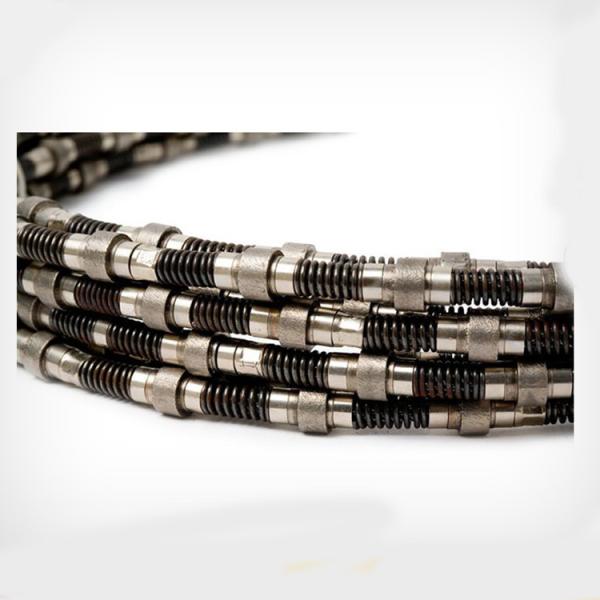

Spring diamond wire saw for marble with advantages of good
flexibility, low request for temperature, easy assembling, easy
replacing and repairment, low cost, can be considered as the most
simple and versatile of instruments for quarrying Marble,
Limestone, Travertine etc. Crude rubber coating diamond wire saw
for marble with advantages of good flexibility, good protection for
internal steel cable, good safety and stability during cutting,
which is ideal choice for quarrying Marble, Limestone, Travertine
etc. Our company spring diamond wire saws has advantages as follows:
1.High cost effectiveness.High performance,low price.
2.The Provision of high-quality post-sale technical services.if you
have any problems ,we will provide excellent technicians to serve
you.
3.Fairly high cutting speed and life. There is a consensus that the
two can not have both.but we've been seeking for a balanced point
and doing our level best to improve them.
Technical Data:
| Spring diamond wire saw for marble: | ||||||
| Specification of Beads(mm) | Model | Coating | Beads No. (Pcs/Meter) | Hardness of Marble | Cutting speed (Sqm/Hour) | Cutting life (Sqm/Meter) |
| Φ11.5*6.0 Φ11.0*6.0 | SMSJ-11.5 | Spring | 26 | SOFT | 16-25 | 55-75 |
| MEDIUM | 12-16 | 45-65 | ||||
| HARD | 7-10 | 30-45 | ||||
| Φ11.5*6.0 Φ11.0*6.0 | SMSJ-11.5 | Rubber | 37 | SOFT | 12-20 | 55-75 |
| MEDIUM | 8-14 | 45-65 | ||||
| HARD | 5-8 | 30-45 | ||||









|
