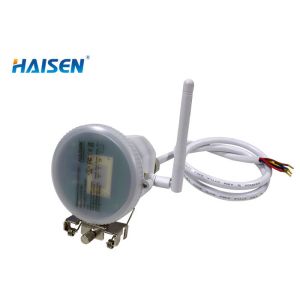

High Frequency 5.8GHz BLE Motion Sensor Microwave Movement Detector

High Frequency 5.8GHz BLE Motion Sensor Microwave Movement Detector

Outside of light fixtures bluetooth networking HAISEN APP control microwave motion sensor

Features:

• Control line:American version:black L in;white N;red L out;gray1-10v-;purple1-10v+.

​ Europe version:brown L in;blue N;yellow L out;black1-10v-;red1-10v+.

• Dimming function microwave movement motion sensor.
• Switching capacity:max.2.3A@347Vac 50/60Hz;max.2.5A@480Vac 50/60Hz.
• Automatically detect the daylight and remain OFF even detect any movement when the natural light is sufficient.
• Mounting height could be 15m/49.2ft and detection diameter could be 16m/52.48ft.
• Detection area,time delay,stand-by dimming level,stand-by period and daylight threshold can be precisely set by remote controller.

Specifications

ON/OFF Daylight sensor Detection area Hold time Warranty 5 years Remote control

Stand-by period Stand-by dimming 10-15m Highbay APP Control Bluetooth

level networking

Dimensions:

There are four versions of sensors for different lamps.

Version A:

Version B:

Version C:

Version D:

Installation method

Clip to the edge of the lamp

Ceiling mounted

Wall-mounted installation

Make a small hole in the side of the lamp and reveal the sensor

Wiring Diagram:

American standard:Black L,White N,Red L',Gray 1-10V-,Purple 1-10V+.

Europe standard:Brown L in;Blue N;Yellow L out;Black1-10v-;Red1-10v+

Detection coverage:

Max. detection range will be 16m/52.48ft for ceiling mounted.

HD409VRH Specification.pdf
