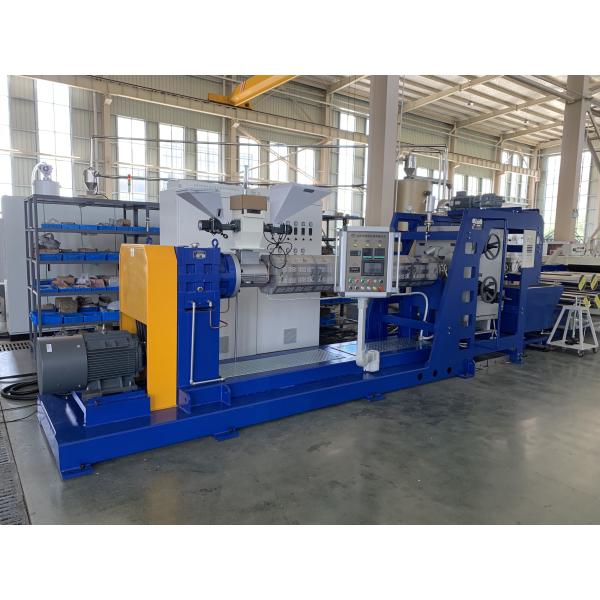

125kgh PET Monofilament Extruder Machine For Rope Bottle Flakes

1. Extruder: 1 set

(1) Screw dia.: 85mm; Rotation speed: 0～80rpm,

(2) L:D: 30:1; Material of screw: 38CrMoALA;

The screw is special design for PET recylce material.

(3) Pressure feedback system can adjust the screw speed automatically.

(4) Melt filter: Melt filter changer with candles

(5) Spinneret device: 1 set

(6) Metering pump: 1 set

(7) Heater: Electric heating ring to make sure the temperature evenly.

(8) Color doserm: 1 set

(9) Magnet basement: 1 set

2. Quenching Tank:1 set

(1) The tank is made by Stainless Steel 304.

(2) The height of tank is adjustable and the horizontal pushing structure is conveniently to disassembly the spinneret.

3. First Seven roller Stretching unit,

(1) Seven pieces variable diameter roller with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Built-out oil lubrication system makes gears run steady.

4. Hot water Tank:1 set

(1) Heating power: 70KW; Electrical heating, copper heating pipe

(2) Material is stainless steel 304 with heat preservation.

(3) Equip two pressing roller .

5. Second seven rollers stretching unit

(1) Seven pieces variable diameter roller with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Built-in oil lubrication system which makes the gears run steady.

6. Spindle winder

(1) Tapered winder

(2) Winding bobbin as per clinet's reqeust.

(3) Tesnion control by inverter.

7. Running capacity: 130 KW
