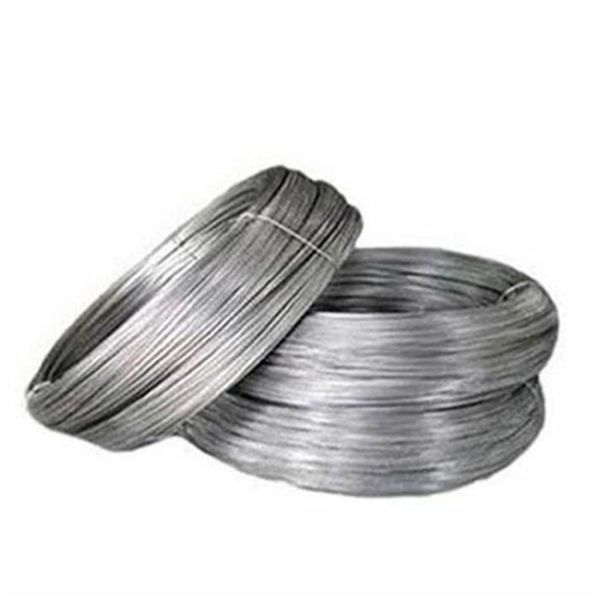

JIS G4314 SUS631J1 Stainless Spring Steel Wire for Mechanical Springs

Grade : SUS631J1 Classification: Corrosion-resisting / heat-resisting steel Precipitation hardening steel Standards: JIS G 4318 : Cold finished stainless steel bars JIS G 4308 : Stainless steel wire rods JIS G 4314 : Stainless steel wires for springs

Supplying Size:
Diameter:0.01-20mm

Our Advantage
1. Stable linearity, good formability. Uniform and beautiful surface condition.
2. High plasticity and good fatigue resistance. And we provide Self-Inspection Reports and Raw-Material Test Certificates.
3. Professional anti-rust protective packaging. On time delivery, competitive price.
4. Large stock available, no MOQ requirement.

Equivalent Materials
DIN 1.4568DIN X 7 CrNiAl 17 7AFNOR Z9CNA17-07AISI 631AISI 631 (17-7PH)SAE 631SAE 631 (17-7PH)JIS SUS631JIS SUS631-CSPEN X7CrNiAl17-7EN 1.4568UNS S17700

SUS631J1 Stainless Steel Wire Chemical composition

SUS631J1 Stainless Steel Wire Form of delivery

The wire shall be supplied in coils, on spools, on spoolless cores or carriers. Several coils may be assembled on a carrier. Unless otherwise specified the form of delivery shall be at the manufacturer's discretion. He shall however inform the purchaser about the form of delivery.

SUS631J1 Stainless Steel Wire Surface finish

The wire may be coated or not. The specific coating and finish for stainless steel spring wire shall be agreed upon at the time of enquiry and order- e.g. uncoated, polished finish, nickel coated.

SUS631J1 Stainless Steel Wire Information to be supplied by the purchaser

The purchaser shall clearly state in his enquiry or order the product and following information:

a) the desired quantity;

b) the number of this European Standard: JIS G4314;

c) the steel grade and for grade 1.4310 also the tensile strength level;d) the nominal wire diameter;

e) the surface finish

f) the form of delivery

g) the type of inspection document to be supplied;

h) any particular agreement made.

SUS631J1 Stainless Steel Wire Manufacturing process

Unless otherwise agreed in the order, the manufacturing process used in the making of the stainless steel wire is left to the discretion of the manufacturer. The starting condition (+AT:solution annealed)of the wire (rod) is specified in EN 10088-3.

stainless steels are usually used in the cold drawn condition in the form of wire of circular cross-section up to 10,00 mm in diameter, for the production of springs and spring parts that are exposed to corrosive effects and sometimes to slightly increased temperatures.

1.4571,1.4539,1.4028 are also used for springs,although to much lesser extent. In these cases the mechanical properties(tensile strength, etc.)should be agreed between purchaser and supplier. Similarly, diameters between 10,00 mm and 15,00 mm may be ordered against this standard; in this case the parties should agree upon the required mechanical characteristics.

For over 20 years, Fushun Steel, have been dedicated to manufacturing high-quality spring steel wire. Our stable quality and superior technique are the foundations of our success, and we pride ourselves on delivering products that meet or exceed our customers' expectations. With a focus on innovation and efficiency, we utilize the latest technologies to ensure consistent quality and timely delivery.

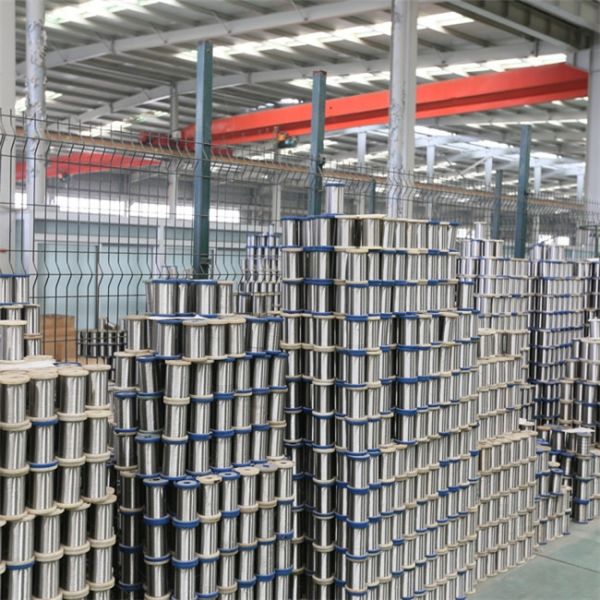

We have more than 400 employees and our plant covers an area of nearly 15,000 square meters, with an annual output of 100,000 tons. Our advanced equipment allows us to produce high-quality spring steel products efficiently, meeting the needs of our customers.

In the production of spring steel wire, a variety of specialized equipment is essential. Shot Peening Machine. Wire Drawing Machine. Phosphating Equipment. Annealing Furnace. Polishing Equipment. Wire Coiling Machine. End Grinding Machine. Tensile and Compression Testing Machine.

Our commitment to excellence and reliability has resulted in long-standing partnerships with some of the biggest names in the industry. Like MW Industries, NHK Spring, Scherdel, Sogefi, Mubea etc. We also have established partnerships with several prominent Chinese steel groups, like Baowusteel, Xinyusteel, Nanjinsteel, Shagang etc.

Our spring steel wire comes in various categories such as music wire, hard drawn wire, oil tempered wire, chrome silicon wire, chrome vanadium wire, stainless steel wire, nickel plated wire, phosphate coated wire, galvanized wire, and copper coated wire.

Spring steel wire is a versatile material that is utilized in the manufacture of a wide array of products. including automotive suspension springs, valve springs, and torsion springs. Beyond springs, paper clips and mattress supports. In addition, spring steel wire is essential in the creation of retaining rings and circlips that are utilized to secure components on shafts or within bores, and in making various types of fasteners. The durability and resilience of spring steel wire also make it a key material in the manufacturing of certain types of cable, fencing, and even some musical instruments, such as piano and guitar strings, where its ability to return to its original shape after deformation is highly valued.
