| Categories | Dunlop Air Spring |
|---|---|
| Brand Name: | AIRSUSTECH |
| Model Number: | 4 1⁄2 x 2 |
| Certification: | ISO/TS16949:2009 |
| Place of Origin: | Guangzhou, China |
| MOQ: | 3 pieces |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Delivery Time: | 3-8 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Model NO.: | W01R584051 |
| N.W.: | 3.5 Kg |
| Warranty: | One Year |
| Pressure Ability: | 0.2-0.8 M PA |
| Other OEM: | SP 2441 |
| Trademark: | Dunlop |
| Transport Package: | Cartons |
| Specification: | 24*24*24 cm |
| Origin: | Europe |
| HS Code: | 8708809000 |
| Port: | Huangpu, China |
| Function: | Reduce Vibration |
| Material: | Rubber and Aluminum |
| Usage: | Industrial |
| Load Type: | Compression |
| Production Process: | Vulcanization |
| Shape: | Convoluted |
| Company Info. |
| Guangzhou Guomat Air Spring Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
AIRSUSTECH 4 1/2 X 2 Cross OEM:
| Cross Number | ||
| AIRSUSTECH:4 1/2 X 2 | Firestone Part Number::W01-R58-4051 | Contitech Part Number::Fd 44-5 DIG3/8CR |
| Dunlop Bellows Number: 4 1⁄2 x 2 | Firestone Part Number::W01 R58 4051 | Contitech Part Number::Fd44-5 DIG3/8CR |
| Rubber Bellows 4 1/2 X 2 | Firestone Part Number::W01R584051 | Contitech Part Number::Fd44-5DIG3/8CR |
| Dunlop Air Spring SP 2441 | WO1R584051, | Continental Part Number::Fd 44-5 DIG3/8CR |
| Dunlop Rubber Bellows SP1457 | WO1-R58-4051 | Continental Part Number::Fd44-5 DIG3/8CR |
| Dunlop Air Spring SP2441 | Firestone Part Number: Air Bags W01-R58-4051 | Continental Part Number::Fd44-5DIG3/8CR |
| Dunlop Rubber Bellows SP 1457 | ||

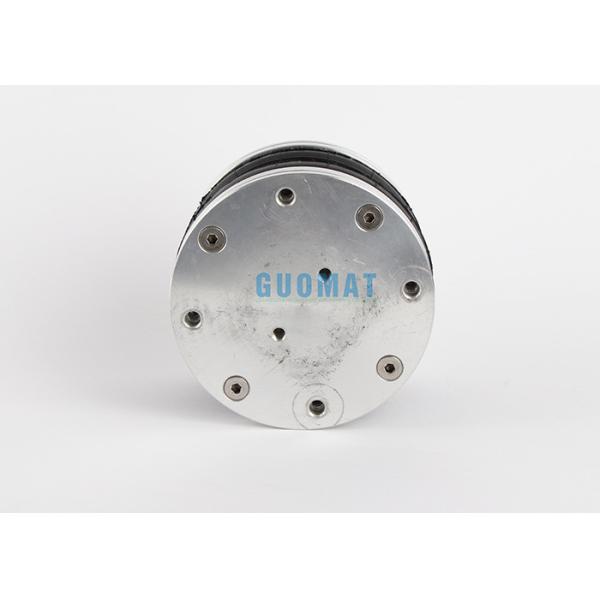

The Specification AIRSUSTECH 4 1⁄2 x 2 :
FD 44-5 DI G 3/8 CR,
bellows type industrial air spring,
single spiral,
effective area 44cm,
maximum stroke 5cm,
movable connecting part,
female mounting thread, G3/8 BSPP,
neoprene (chloroprene Ene)
Manufacturer: Mainland
Compressed height
60MM
Maximum expansion height
125MM
The maximum diameter
135MM
Maximum inflation pressure
120 psi
Maximum stroke
70MM
Inlet type
Metric
Air inlet
3/8"
series
d
lowest temperature
-22°F
Maximum temperature
194°F
Bellows type
Single convolution
weight
1 pound



|
