| Brand Name: | AIRSUSTECH |
| Model Number: | 6x2 |
| Certification: | ISO/TS16949:2009 |
| Place of Origin: | Guangzhou, China |
| MOQ: | 3 pieces |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Delivery Time: | 3-8 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Model NO.: | W01-R58-4070 |
| N.W.: | 2.05 KG |
| Warranty: | One Year |
| Pressure Ability: | 0.2-0.8 M PA |
| Other OEM: | 6"X2 |
| Top Plate Dia: | 153.5 mm |
| Bottom Plate Dia: | 153.5 mm |
| Air Inlet: | G1/2 |
| Bumper: | Without |
| Trademark: | Norgren |
| Transport Package: | Cartons |
| Specification: | 24*24*24 cm |
| Origin: | China |
| HS Code: | 8708809000 |
| Port: | Huangpu, China |
| Function: | Reduce Vibration |
| Material: | Rubber and Aluminum |
| Usage: | Industrial |
| Load Type: | Compression |
| Production Process: | Vulcanization |
| Shape: | Convoluted |
| Company Info. |
| Guangzhou Guomat Air Spring Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

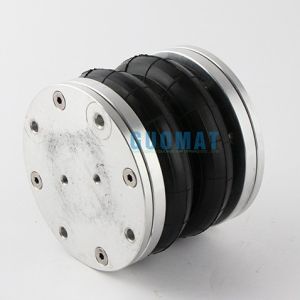

DUNLOP Air Spring SP 2917 Bellows 6x2 Firestone Air Spring W01-R58-4070
AIRSUSTECH 6x2 OEM Reference:
| Replaces These Air Springs (Air Bellows) | |||
| AIRSUSTECH 6x2 | Firestone W01-R58-4070/ | ContiTech: FD 76-14 1/2 M10 | Norgren: M/31062 / M 31062 / M31062 |
| Dunlop FR: SP2917 | Firestone W01 R58 4070/ | ContiTech Bellow: FD 76-14 / FD76-14 / FD7614 | Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2 |
| Double Convoluted Air Spring 2B180-115 D185 | Firestone W01R584070 | ContiTech: FD 76-14 DS G1/2 | Continental: FD 76-14 1/2 M10 |
| Dunlop FR: SP 2917 | Firestone WO1-R58-4070/ | ContiTech: FD 76-14 DS CR G1/2 | Continental Bellow: FD 76-14 / FD76-14 / FD7614 |
| Double Convoluted Air Spring 2B180-115 D185 | Firestone WO1 R58 4070/ | ContiTech: FD 76-14 DS G1/2 CR | Continental: FD 76-14 DS G1/2 |
| Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112 | Firestone WO1R584070 | ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR | Continental: FD 76-14 DS CR G1/2 |
| Dunlop 6x2 | Continental: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR | Continental: FD 76-14 DS G1/2 CR | |
Specifications and Detail Technical Parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M8
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
Cover Plate
Top Cover Plate Diameter (Width): 153.5 mm
Bottom Cover Plate Diameter (Width): 153.5 mm
Material top and bottom plate:Aluminium
Rubber Bellows
Diameter max at 7 bar:175MM
Stroke of Rubber Bellows:80mm-195m
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
max load at 80 mm height and 8 bar:1415 daN
Details pictures 1 of AIRSUSTECH 6x2 O Air Spring:

|
