| Categories | Lacing Anchors |
|---|---|
| Brand Name: | XIANGYI |
| Model Number: | Lacing anchors |
| Certification: | ISO 9001 |
| Place of Origin: | China |
| MOQ: | 10.000 sets |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 350.000 SETS PER MONTH |
| Delivery Time: | 15 days after confirm the order |
| Packaging Details: | carton+wooden pallet |
| Product Name: | Insulation lacing anchors |
| Material: | stainless steel 304/316 |
| Usage: | HVAC system |
| Sample: | Freely |
| Head type: | Round ,rectangle |
| Head size: | 22mm,30mm,25x11mm |
| Pin diameter: | 2.0mm,2.7mm,3.0mm |
| Pin length: | 38-300mm |
| Material | Base type | Base size | Pin diameter | pin length |
| Mild steel | Round ,rectangle | 22mm,30mm | 2mm,2.7mm,3.0mm | 20mm-300mm |
| Galvainzed steel | Round ,rectangle | 22mm,30mm | 2mm,2.7mm,3.0mm | 20mm-30mm |
| Stainless steel | Round ,rectangle | 22mm,30mm | 2mm,2.7mm,3.0mm | 20mm-300mm |
| Washer | Self locking washers are available in a variety of sizes, shapes and materials | |||

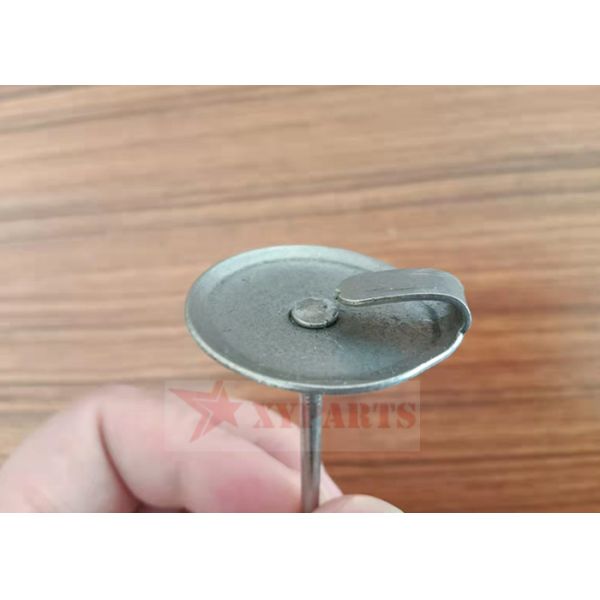

The Lacing Anchor is a fabricated metal anchor consisting of a pin
and tabbed ,or hooked washer .
Stainless steel is a popular material while some Lacing Anchors are
made in Mild steel .
2-1/2" stainless steel lacing anchors are primarily used as the
means of fastening lagging to exhaust
systems (tie wire as the lacing material). Lacing anchors can be
used to add additional support to
existing lagging, or used with other raw insulation material.
Lacing anchors are manufactured in nail
point configuration, and are 12 gauge in diameter. To secure to
lagging it is recommended that 12
gauge self-locking washers- oblong or round- be used.
Features of slim lacing anchor
pins material is annealed steel wire, easy for bending and cutting.
zinc coated/copper plated surface treatment for rustproof
smooth surface ,No burry
base washer material is hardness material, not be deformed
| 1.Use raw materials that meet international standards 2.Rust-proof surface treatment, long service life 3.CNC technology, small error range 4.Smooth surface without burrs 5.Scientific dimensional design, in line with mechanical standards 6.Suitable for all kinds of wall 7.High pull-off strength for a higher security of the system 8.Low thermal conduction addition value to avoid thermal bridge 9.Galvanized layer on the steel nail to protect the nail from alkali |
· Rooftop insulation (can be applied under shingles)
· Process piping and tanks
· Petrochemical processing
· Refineries and manufacturing plants
· Hot and cold food processing
· Wine tank insulation
· Retort ovens
· Refrigerated rooms and buildings
· Heat conservation applications
· Boats and ships
| Product | Size(mm) | Quantity | Caton(cm) | Weight |
| Lacing Anchors | 12Gauge*2.5" | 1000Pcs | 26*26*18 | 8.6kgs |
| Lacing Anchors | 12Gauge*4.5" | 1000Pcs | 26*26*25 | 9.9kgs |
| Lacing Anchors | 14Gauge*2.5" | 1000Pcs | 26*26*18 | 10kgs |
| Lacing Anchors | 14Gauge*4.5" | 1000Pcs | 26*26*25 | 12.3kgs |
|
