| Categories | Fiber Optic Splitter |
|---|---|
| Brand Name: | DAMU |
| Model Number: | DM-LGX |
| Certification: | CE ROSH ISO9001 |
| Place of Origin: | China |
| MOQ: | 50 |
| Payment Terms: | T/T |
| Supply Ability: | 50000/month |
| Delivery Time: | 3-7 |
| Packaging Details: | NORMAL PACKING |
| Fiber type: | G.657A with 0.9mm loose tube,G657 |
| Application: | FTTH FTTB FTTX Network,CATV,Splitter,LAN,FTTH FTTB FTTX PON CATV |
| Product name: | 1x16 lgx cassette type fiber optic splitter |
| Operating temperature: | -40℃ to 85℃ |
| Connector: | SC/APC |
| Type: | 1x16,APC,PLC Splitter |
| Material: | ABS+PC |
| Warranty: | 3 years |
| Color: | White |
| Fiber length: | 1m or customized |
| Return loss: | ≥50 dB |
| Splitter: | splitter,1x8 splitter as well as 2x4,2x8,1x2 1x32 1x64,available 1x4 |
| Company Info. |
| Shenzhen damu technology co. LTD |
| View Contact Details |
| Product List |

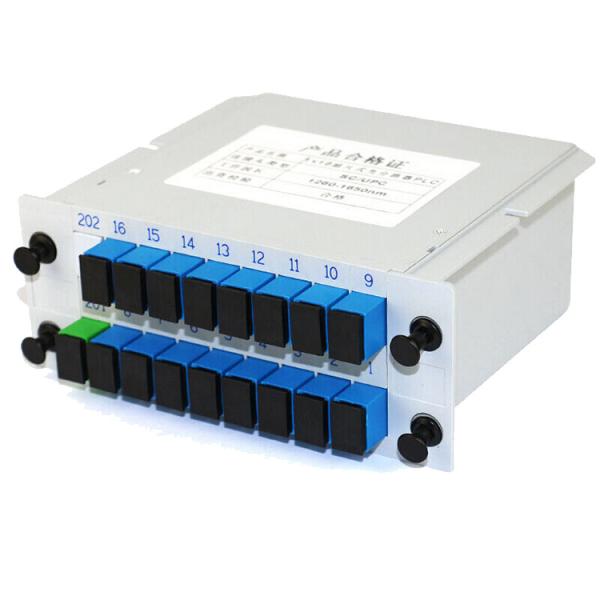

LGX Cassette Type Optical Fiber PLC Splitter Box 1*16 with SC/UPC Connector
1. Description:
Planar lightwave circuit (PLC) splitter is fabricated using silica
optical waveguide technology. It features wide operating
wavelength range, good channel-to-channel uniformity, high
reliability and small size, and is widely used in FTTX PON to
realize optical signal power management.
2. Specification:
1x8 PLC Splitter Casette type,SM fiber, with SC/APC connector
Features
FTTH
Monitoring
CATV System
Network Protection
Access/PON Distribution
Insertion Loss
- Test Wavelength: 1310-1550 nm
- Required Value:P Grade
- Test can be performed on any channel
Return Loss
- Test Wavelength: 1310-1550 nm
- Required Value:>55dB
- Test can be performed on any channel
Directivity
- Test wavelength: 1310-1550 nm
- Required Value:>55 dB
On Dependent Loss-PDL
- Test Wavelength:1310-1550 nm
- Required Value:< 0.2 dB
| ITEM | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 |
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Insertion Loss (dB) Max. | ≤4.6 | ≤7.5 | ≤11.0 | ≤14.0 | ≤17.0 | ≤21.0 | ≤4.5 | ≤8.0 | ≤11.7 | ≤14.7 | ≤17.9 |
| Loss Uniformity (dB) Max. | ≤0.6 | ≤0.6 | ≤0.8 | ≤1.2 | ≤1.5 | ≤1.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 |
| PDL (dB) Max. | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss (dB) | UPC≥50dB;APC≥55dB | ||||||||||
| Directivity (dB) | ≥55 | ||||||||||
| Fiber Length (m) | 1.2±0.1 , (Other Requirements Can Be Provide) | ||||||||||
| Fiber Type | Corning SMF-28e, (Other Requirements Can Be Provide) | ||||||||||
| Operation Temperature℃ | -40~+85 | ||||||||||
|
