35 Ton Aluminum Production Transportation Intelligent Material Flow Systems Cart

Categories Trackless Transfer Trolley
Brand Name: Remarkable
Model Number: RWP
Certification: CE, ISO
Place of Origin: Henan, China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600
Delivery Time: 30-45 work days
Packaging Details: 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Power supply: Maintenance free battery
Load: 35 tons
other name: electric trackless transfer cart
Operation method: Wireless remote control & Hand operate pendant
Traveling speed(m/min): 0-30 (Stepless speed regulation)
Brake mode: Electromagnetic brake
application area: Material transportation
Move Way: Forward, backward, turning while driving with no stop
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

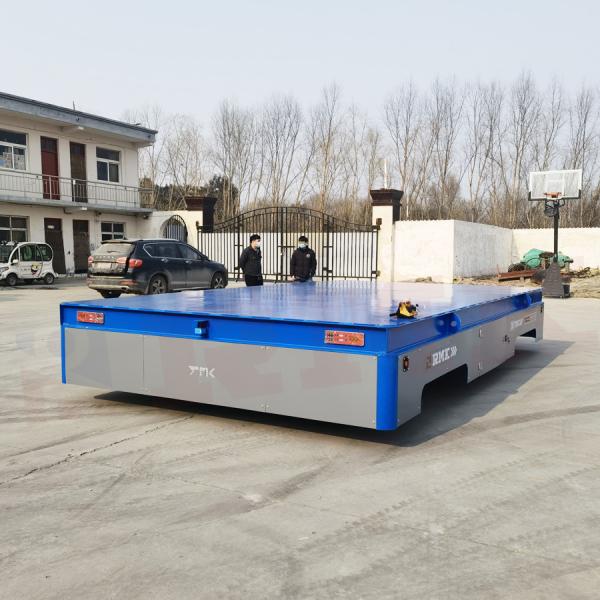

35 Ton Aluminum Production Transportation Intelligent Material Flow Systems Cart

35 Ton aluminum production transportation Intelligent material flow systems cart


Intelligent material flow systems ensure smooth interfaces and fast, reliable transport and storage processes between the machining and processing steps in aluminum production. This requires a great deal of know-how to design the process chain productively and also to create the ideal software architecture.We provide various transportation solutions to many countries in the world.35 Ton aluminum production transportation is one example.

For the cost-effective production of high-quality aluminium products such as foils, strips or sheets, the optimum integration of the various production processes in rolling plants is crucial. This requires fully automated intralogistics solutions to ensure resource-saving and efficient workflows. From automatic crane systems for the raw aluminium ingots and the logistical linkage of hot and cold rolling mills, through to intelligently designed transport and storage systems for aluminium coils weighing up to 35 tons and at temperatures of several hundred degrees which can deal with the 35 Ton aluminum production transportation.


35 Ton aluminum production transportation Intelligent material flow systems cart

Precast construction is the manufacturing of products in a pre-made cast or mold and then, after being cured in a controlled environment, transporting it to the construction site for final assembly. Precast constructions are generally chosen for projects requiring durability, quality, and a sturdy structure.

The precast structures can reach significant weights and these assembly structures must be transported both at the production plant and at the construction site. RMK has solid experience supplying heavy duty industrial carts to precast concrete manufacturers, participating in and contributing to the productivity and efficiency of important international projects.

As they are equipped with wheels and move on cement floor they are suited to very high loading capacities thanks to the very low friction between steel and steel. For this reason listed above, the cost of these transfer trolleys – referring to same dimensions and loading capacity – is lower than battery and diesel powered trolleys on wheels which must be equipped with steering systems and greater power.


Technical parameters for electric transfer carts
1rated load(t)5101520304050150
2impacted rated load(t)7.51522.530456075225
3structure of framesteel plates welded, beam structure
4max. wheel load(t)2.84.34.85.67.7101227
5ground requirementcement floorsteel plate ground
6table size(mm)3000×20003600×20004000×22004500×22005000×22005500×2300

6000×

2300

10000×

3000

7height of the whole cart(mm)4505306006006507007001200
8ground clearance(mm)5075
9wheels base(mm)1500170018002000
10axles distance(mm)250031003400390043004800520010000
11turning radius(mm)250131013401390143014801520110001
12turning typeturning while driving with no stop
13control method for turningcontrol button
14turning structuremechanical
15motor power(Kw)3.556710121515
16wheel diameter(mm)Ф300 x 4Ф350 x 4Ф400 x 4Ф400 x 6Ф500 x 6Ф600 x 8
21battery modelD-250 x 24D-33 x 24D-400 x 24D-440 x 24D-250 x 36D-330 x 36D-440 x 36D-600 x 36
22battery maintenancefree of maintenance
23charger's installationinstalled on cartsplit-type
24charger functionautomatic charging
25radar control3-0.3m, automatic stop for obstacles
26warning equipmentsound and light
27other functionsturning light, night light and power display
