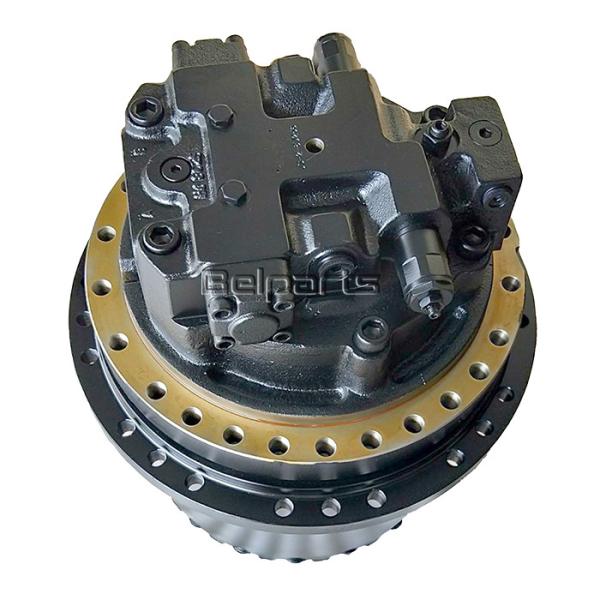

Hyundai R360 R370 31NA-40010 Final Drive Device Excavator Parts Travel Motor Assy

Categories Travel Motor Assy
Brand Name: Belparts
Model Number: R360LC-7; R370LC-7
Certifiion: OEM
Place of Origin: China
MOQ: 1pcs
Price: Negotiable Price
Payment Terms: L/C, T/T, Paypal, Trade Assurance
Supply Ability: 1000 pieces/month
Delivery Time: 2-3 days
Packaging Details: Standard Shipping Package
Condition: Brand New
Warranty: 12 months
MOQ: 1pcs
Part number: 31NA-40010
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hyundai R360 R370 31NA-40010 Final Drive Device Excavator Parts Travel Motor Assy

Travel Motor Assy HYUNDAI R360 R370 31NA-40010


Production Description


Company Name
Guangzhou Belparts Engineering Machinery LTD.
Brand
Belparts
Spare Parts Name
Excavator Travel Motor Assy
Model
R360; R370
Quality
Brand New
Warranty
12 Months
MOQ
1pcs
Delivery Terms
After payment 3-7days
Payment Terms
L/C, T/T, Paypal, Trade Assurance

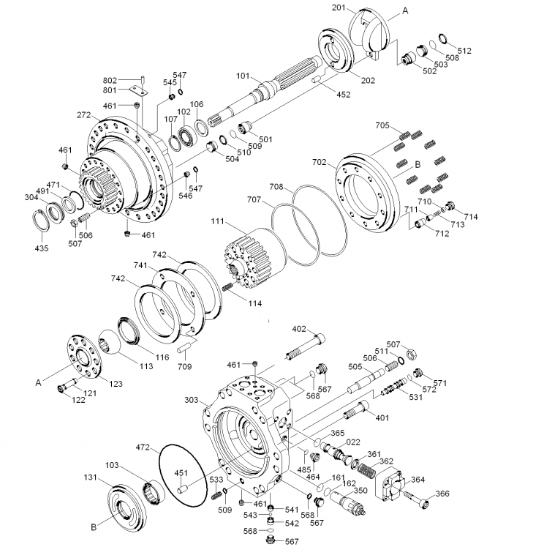

#Part NoPart NameQty.
*31NA-40010TRAVEL MOTOR
*-1,*-2
1
*-1XJBN-00519TRAVEL MOTOR UNIT1
022XJBN-00513SPOOL-C/BALANCE1
101XJBN-00512SHAFT-DRIVE1
102XJBN-00511BEARING-ROLLER1
103XJBN-00510BEARING-NEEDLE1
106XJBN-00509SPACER-BEARING1
107XJBN-00600RING-SNAP1
S111XJBN-00507BLOCK-CYLINDER1
113XJBN-00506BUSHING-SPHERICAL1
114XJBN-00022SPRING-CYLINDER9
116XJBN-00368SPACER1
NS121XJBN-00504PISTON9
NS122XJBN-00503SHOE9
123XJBN-00020PLATE-SET1
NS131XJBN-00638PLATE-VALVE1
161XJBN-00403O-RING2
162XJBN-00397RING-BACK UP2
201XJBN-00502PLATE-SWASH1
202XJBN-00501SUPPROT1
S272XJBN-00500CASING1
S303XJBN-00499CASING-VALVE1
304XJBN-00498COVER-SEAL1
350XJBN-00497VALVE-RELIEF2
361XJBN-00496WASHER2
362XJBN-00495SPRING-C/BALANCE2
364XJBN-00494COVER-C/BALANCE2
K365XJBN-00493O-RING2
366XJBN-00492BOLT-SOCKET8
401XJBN-00491BOLT-SOCKET8
402XJBN-00490BOLT-SOCKET4
435XJBN-00489RING-SNAP1
S451XJBN-00053PIN-21
S452XJBN-00488PIN-12
461XJBN-00032PLUG10
464XJBN-00409PLUG4
K471XJBN-00286O-RING1
K472XJBN-00486O-RING1
K485XJBN-00097O-RING4
K491XJBN-00485SEAL-OIL1
501XJBN-00484PISTON-TILTING1
502XJBN-00483PISTON-TILTING1
503XJBN-00482STOPPER1
504XJBN-00481STOPPER-S1
505XJBN-00480ROD-TILTING1
506XJBN-00479SCREW2
507XJBN-00478NUT2
K508XJBN-00477O-RING1
K509XJBN-00283O-RING2
K510XJBN-00398RING-BACK UP1
K511XJBN-00475O-RING1
K512XJBN-00474RING-BACK UP1
531XJBN-00473SPOOL-TILTING1
533XJBN-00472SPRING-TILTING1
541XJBN-00471SEAT2
542XJBN-00470STOPPER2
543XJBN-00359BALL-STEEL2
545XJBN-00469ORIFICE1
546XJBN-00468ORIFICE2
K547XJBN-00231O-RING3
567XJBN-00356PLUG7
K568XJBN-00362O-RING7
571XJBN-00639PLUG1
K572XJBN-00233O-RING1
702XJBN-00640PISTON-BRAKE1
705XJBN-00466SPRING-BRAKE10
K707XJBN-00465RING 252-PISTON1
K708XJBN-00464RING 278-PISTON1
S709XJBN-00463PIN-CENTER4
710XJBN-00462GUIDE-SPRING1
711XJBN-00641SPOOL1
712XJBN-00460BUSHING1
713XJBN-00459SPRING1
714XJBN-00458PLUG1
741XJBN-00457PLATE-SEPARATOR1
742XJBN-00456PLATE-FRICTION2
801XJBN-00156NAME PLATE1
802XJBN-00341PIN2
KXJBN-00514SEAL KIT
SEE ILLUST
1
011XJBN-00515VALVE CASING SUB ASSY
SEE ILLUST
1
012XJBN-00516CASING SUB ASSY
SEE ILLUST
1
013XJBN-00517CYLINDER SUB ASSY
SEE ILLUST
1
014XJBN-00518PISTON SUB ASSY
SEE ILLUST
9
