| Brand Name: | FMS |
| Model Number: | Floor Deck |
| Certification: | ISO CE |
| Place of Origin: | CHINA MAINLAND |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 20 Sets Per Month |
| Delivery Time: | 30 Working Days |
| Packaging Details: | 40' FLC |
| Product Name: | Metal Floor Deck Cold Roll Forming Machine For Thickness 1.5mm 22KW |
| Thickness: | 1.5mm |
| Warranty: | 1 Year |
| Speed: | 10m/min |
| Control system: | PLC |
| Weight: | 20T |
| Roll Forming Speed: | 10-15/min |
| Company Info. |
| Cangzhou Famous International Trading Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

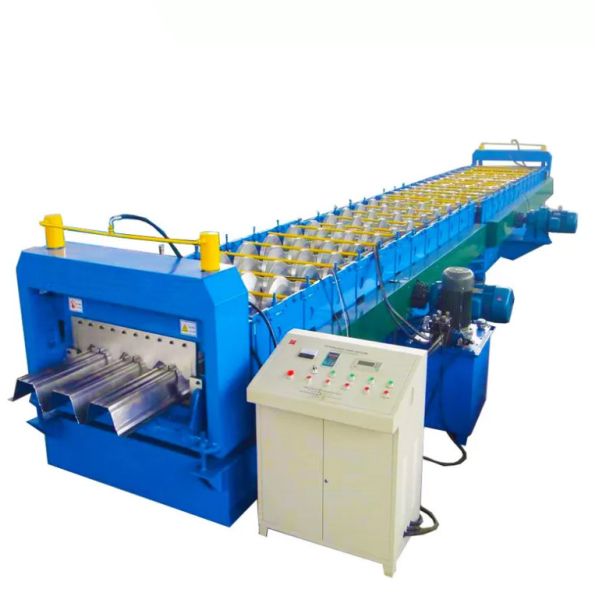

Metal Floor Deck Cold Roll Forming Machine For Thickness 1.5mm 22KW
Floor deck forming machine is galvanized steel as a raw material, after rolling cold-formed technology, die forming, mainly used for the production of steel works with floor boards, rolled into the floor boards after its V-shaped cross-section into categories, U-type, a ladder or a combination of several shapes, mainly used to make permanent formwork composite slab or concrete slab.
Specification
| No. | Main parameter of Floor Deck Roll Forming Machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1500mm |
| 3 | Rollers | 28 rows |
| 4 | Dimensions | 12700*1.85*1.61m |
| 5 | Power | 33+11.5kw |
| 6 | Rolling material | shaft bearing steel(quenching) |
| 6 | Thickness of the plate | 1.5mm |
| 7 | Productivity | 15m/min |
| 8 | Diameter of the roller | Φ100mm |
| 9 | Voltage | 380V 50Hz 3phases |
| 10 | Material of the cutting plate | Cr12 |
| 11 | Hydraulic | 40# |
| 12 | Processing precision | Within 1.00mm |
| 13 | Control system | PLC control |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
|
