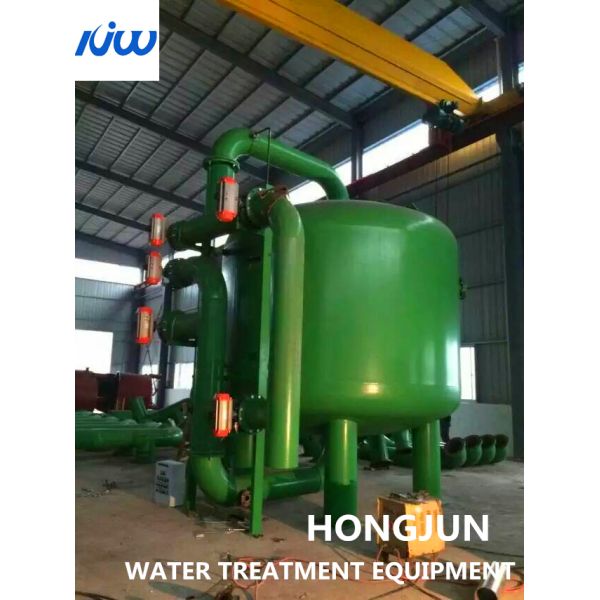

φ3000mm Large Filter Carbon Steel Sand / Carbon Filter Tank

Scope of application of quartz sand filter

It is suitable for the filtration of drinking water and other water purification treatments, and it is more suitable for the pre-treatment and circulating water treatment of production water in petroleum, chemical industry, mining, metallurgy, thermoelectricity, printing and dyeing, tanning, food, etc., as well as the recycling of sewage.

Other uses of quartz sand: Quartz sand is used to make glass, refractory materials, ceramics, smelting ferrosilicon, floor, architectural coatings, casting, grinding, etc.

Technical parameters of quartz sand filter:

1. Design filtration rate: 8-12m/h. When the head loss is about 5m, backwash regeneration is required (usually by reading the pressure difference between the inlet and outlet at 0.05MP).

2. Anti-cleaning intensity: 10-15L/sec•m².

3. Rinsing duration: 5-7 minutes
4. Inlet water pressure: ≥0.4Mpa Backwashing water pressure: ≥0.20Mpa
5. The expansion rate is 25%-50%.

Company Information

Foshan Hongjun Water Treatment Equipment Co.,Ltd - Water Treatment Professor

Foshan Hongjun Water Treatment Equipment Co.,Ltd is a professional water treatment equipment manufacturer with more than 15 years experience, specializing in water treatment design, manufacture, installation, technologu development and also sales support in this lin.

Our philosophy is "Usig the most advanced technology, provide the highest quality enginering and the best service at most reasonale price".

We look forward to cooperating with you.
