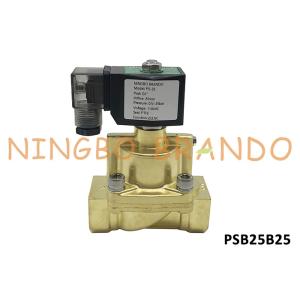

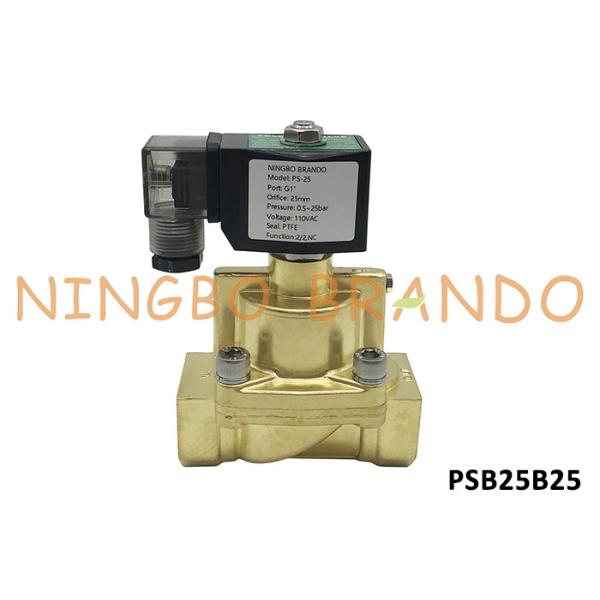

Steam Hot Water Brass Solenoid Valve 1'' 25 bar 185℃ 24V 110V 220V

Steam Hot Water Brass Solenoid Valve 1'' 25 bar 185℃ 24V 110V 220V

Steam Hot Water Brass Solenoid Valve 1'' 25 bar 185℃ 24V 110V 220V

Product Features:

1. Working Medium: Steam, Hot Water, etc
2. Working Pressure: 0.5 to 25 bar
3. Media Temperature: -10 to +180℃
4. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
5. Orifice Size: 15mm, 20mm, 25mm, 35mm, 50mm
6. Body Material: Brass
7. Seal Material: PTFE
8. Function: 2 Way Normally Closed
9. Operation: Piston Pilot Operated
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Technical Data:

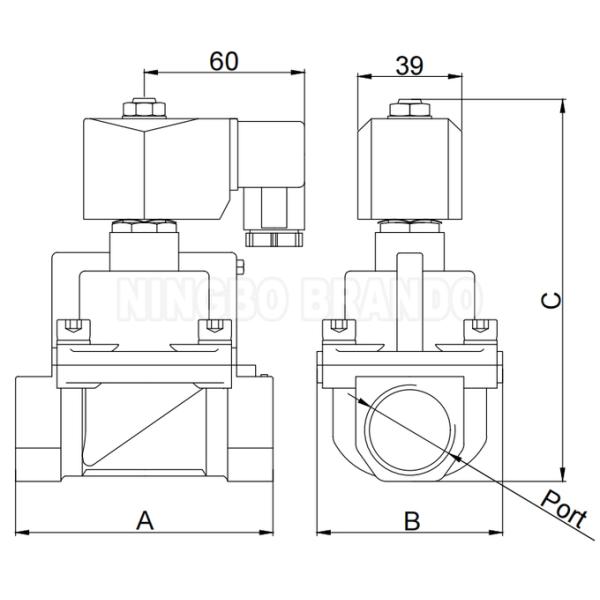

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

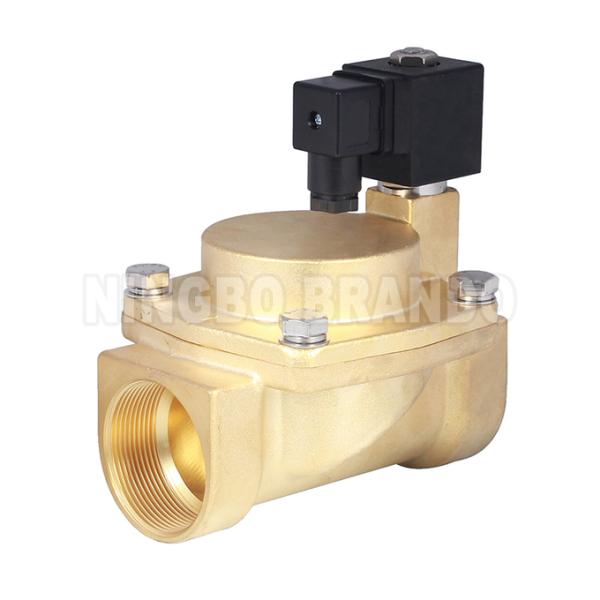

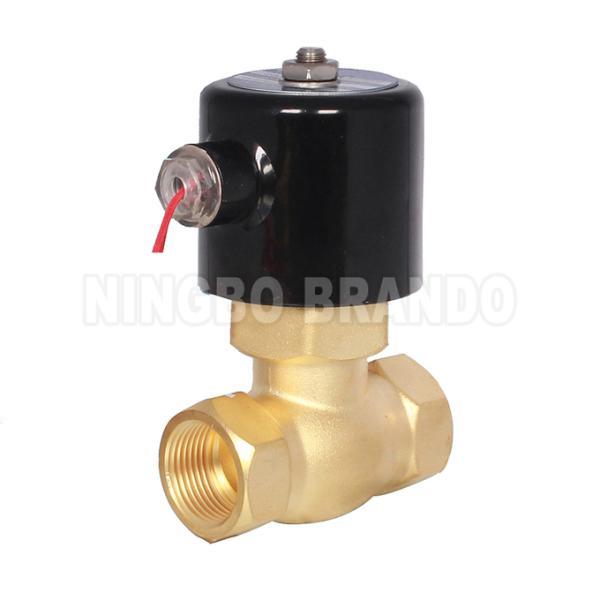

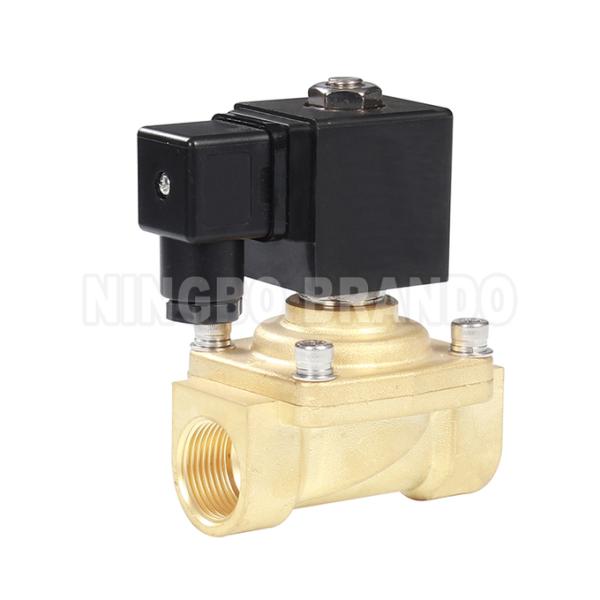

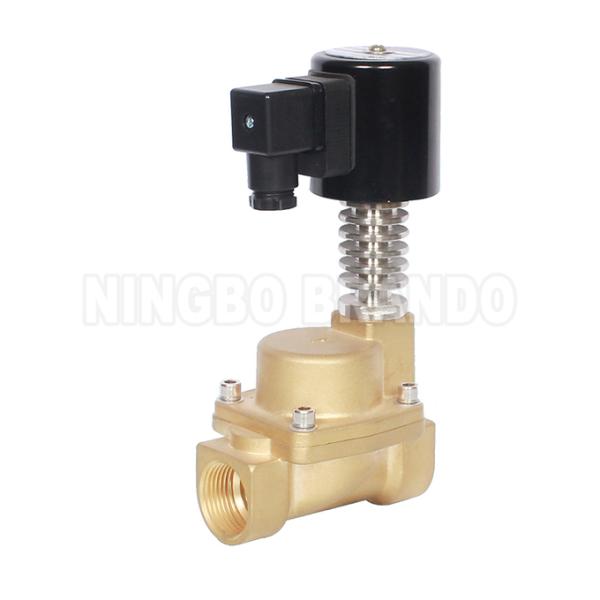

Similar Valves:

Max 200℃, 10 bar	Max 185℃, 15 bar	Max 200℃, 16 bar	Max 300℃, 16 bar
