| Categories | Vacuum Suction Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW5278DHE |
| Certification: | CCC,ISO,BV,SGS |
| Place of Origin: | Suizhou,China |
| MOQ: | 1 UNIT |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 units per month |
| Delivery Time: | 30-35days after received advance payments |
| Packaging Details: | Naked packing,Ro-ro,Bulk Ship |
| Truck Chassis: | ISUZU,Dongfeng,Foton,Shacman,JAC,JMC,FAW,HOWO |
| Tank Material: | Carbon steel Q235A |
| Tank Volume: | 10CBM/10000liters |
| Vacuum pump: | Optional |
| Wheelbase: | 3950 mm |
| Color&Logo: | Customized |
| Warranty: | One year for major parts |
| Operation video: | Yes |
| User manual: | yes |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

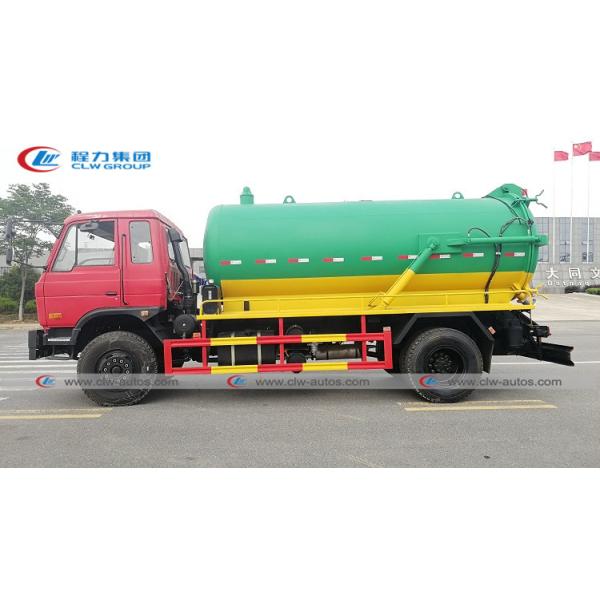

Q235 Carbon Steel 10cbm/10000liters Vacuum Sewage Suction truck
Product Description
| Vehicle Description | |
| Overall dimensions | 6975*2462*2690 mm |
| Curb Weight | 4470kg |
| Chassis brand | DONGFENG |
| Traction type | 4*2 |
| Tanker Description | ||
| Tanker | Capacity | 10000L |
| Material | 6mm thickness, high quality carbon steel | |
| Structure | Welding, vacuum tank, Cylindrical | |
| Pump | Type | Double vacuum pump |
| Flux | 68(L/S) | |
| Rating speed | 800~1000(r/min) | |
| Shaft power | 5(kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Manufacture | Hangzhou WEILONG Pump Co., Ltd. | |
| Pipe | Suction and discharge pipe | |
| Special function | Suction time ≤ 5mins, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45 | |
| Standard configuration | Equipped with Inspect window,discharge valve,cleaning apparatus,5
meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. | |
| Optional configuration | Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank | |
| Chassis Description | ||
| Chassis model | DONGFENG | |
| Cab | Single row cab, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, Optional air conditioning system, electric windows, central lock. | |
| Traction type | LHD or RHD | |
| Drive type | 4*2 | |
| Wheelbase | 3950mm | |
| Tire specification | 9.00-20 Nylon tire | |
| Tire quantity | 6+1 units | |
| Engine | Emission level | Euro 2 |
| Displacement/output | 5880ml | |
| Horse power | 160hp | |
| Gear box | Model | China famous brand |
| Number of gears | 5 forward gears& 1 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake | |
| Suspension | Front | 1205 |
| Rear | 1820 | |
Our factory
Warranty
1. One year free warranty for major 3 components of our trucks:
engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's
country to assist the installation and operation when quantity
reaches 20 units.
3. Transportation warranty: our company offers transportation
insurance for customer to ensure the products arriving at
destination safely.
|
