| Categories | Titanium Tube |
|---|---|
| Brand Name: | LHTi |
| Model Number: | tube |
| Certification: | ISO9001-2015 |
| Place of Origin: | China |
| MOQ: | 100kg |
| Price: | $20--$28/pcs |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5Ton per month |
| Delivery Time: | 15 workdays |
| Packaging Details: | Sponge wrap or plastic bag inside, plywood case as outside, |
| Grade: | Gr2 |
| Outer diameter: | OD25.4mm OD32mm |
| Application: | Industrial,Chemical |
| Material: | GR12. GR2 |
| Standard: | ASTM B338 |
| Length: | <6000mm,6000mm or according to client's requirement |
| application: | Heat exchanger |
| surface: | Polished ,acid pickling |
| Shape: | round shape |
| Type: | seamless or type |
| Company Info. |
| Baoji Lihua Nonferrous Metals Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
titanium pipe Heat exchanger tube OD25.4 ASTM B338
| Specification | |
| Material | Pure Titanium, Titanium Alloy |
| Standard | ASTM B338, ASME SB338, ASTM B861, DIN 17861, DIN17869, EN10204 etc. |
| Grade | Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr12, Gr16 etc. |
| Brand | HONGBAO |
| OD(mm) | 5mm~273mm |
| WT(mm) | 0.5mm~22mm |
| Length(mm) | 18000mm Max. |
| Technique | Seamless or Welded |
| Qualification | ISO9001, ISO14001, OHSAS18001, TS16949, LIOYD’S-ISO9001, PED, DNV. |
| Certificate | EN10204 3.1 or EN10204 3.2 |
| Application: | Petrochemical, Heat Exchanger, Condenser, Medical, Chemical, Aerospace, Subsea, Oil, Sports, Bike and other Industries etc. |
Product Name: OD25.4mm OD32mm Titanium pipe
Standard: ASTM B338
Material: Gr1, Gr2
Type: Welded/Seamless
Shape: Round
Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc.
Wall Thickness: 0.5-3.0mm
Length: Max 12000mm
Surface: Bright,pickled
1.Heat exchanger tube application
2.Titanium ally pipe specification
| Mechanical Properties(>%) | |||||||
| Grade | Tensile Strength(min) | Yeild Strength(0.2% offset)) | Elongation(%) | ||||
| ksi | MPa | Min | Max | ||||
| Ksi | Mpa | Ksi | Mpa | ||||
| 1 | 35 | 240 | 25 | 170 | 45 | 310 | 24 |
| 2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| 7 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| 9 | 90 | 620 | 70 | 483 | - | - | 15C |
| 12 | 70 | 483 | 50 | 345 | - | - | 18C |
| Chemical composition | |||||||||
| Grade | N | C | H | Fe | O | Al | V | Ti | Other , max |
| 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | Bal | 0.4 |
| 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |
| 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |
| 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | Bal | 0.4 |
| 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |
| Grade | N(%) | C(%) | H(%) | Fe(%) | O(%) | Ti | Other , max |
| 1 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.20 | ≤0.18 | Bal | ≤0.4 |
| 2 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.30 | ≤0.25 | Bal | ≤0.4 |
| Grade | Tensile Strength(min) | Yeild Strength(0.2% offset)) | Elongation(%) | ||||
| ksi | MPa | Min | Max | ||||
| Ksi | Mpa | Ksi | Mpa | ||||
| 1 | 35 | 240 | 15 | 140 | 45 | 310 | ≥24 |
| 2 | 60 | 400 | 40 | 275 | 65 | 450 | ≥20 |

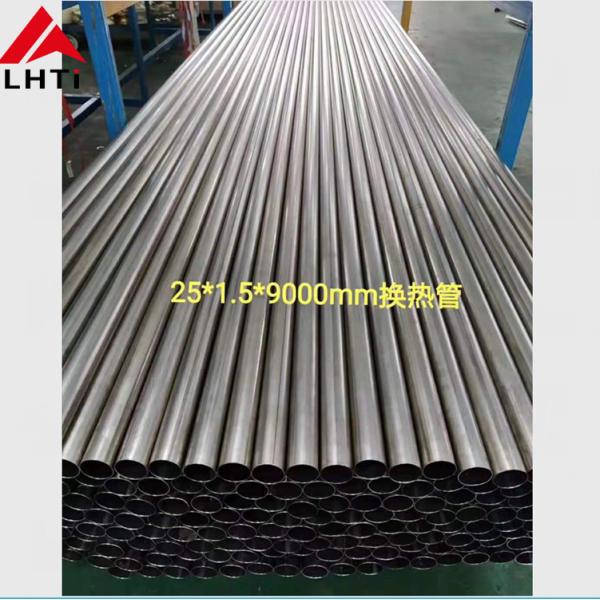

3. Details picture in Workshop
ASTM B338 titanium tube
Used:Heat exchanger, condenser and various pressure vessels
Wall thickness:0.5mm to 4.5mm
Length:3000mm /6000mm and longger to 9000mm
Outside Diameters:10mm to 114mm
Wall thickness tolerance: +/- 10%
Length tolerance: +3.2mm
4. Titanium tube Production process
5. ASME SB388 Test as below
We provide following tests for Ti seamless and welded tubes
| Chemical Composition | Visual Inspect | Ultrasonic Testing | Current Testing |
| Flattening Testing | Flattening Testing | Pneumatic Test | Hydrostatic Test |
| Tensile | Yield | Hardness | Elongation |
6. Feel free to contact titanium alloy tube supplier
FAQ
How can I contact with your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile
telephone.
Mob: +86-18391713963 Wechat: lpy18391713963 Contact person:Alice Lee
What is your working time?
Monday-Saturday : 7:30AM-17:00PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . Pls email us during our holiday if u have any question
Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.
What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
|
