| Categories | Titanium Flange |
|---|---|
| Brand Name: | LHTi |
| Model Number: | LHTI-015 |
| Certification: | ISO9001 |
| Place of Origin: | Baoji City Shaanxi Province |
| MOQ: | 100pcs |
| Price: | USD18-85 per pc |
| Payment Terms: | Western Union, T/T, |
| Supply Ability: | 5 Ton per month |
| Delivery Time: | 7-30work days |
| Packaging Details: | Standard foreigh packing, plastic inside and plywood case outside Or as the clients' request |
| Grade: | UNS31803 Gr2, Gr5, Gr9 |
| Stype: | ANSI, DIN, ISO, JIS, ASME, ASME B16.47 ANSI B16.5 |
| Surface: | FF, RF, TG, RJ, etc |
| Standard: | ANSI, DIN, JIS, ASME |
| Pressure rating: | 0.6~32MPA |
| Technique: | Forged and CNC Machined |
| Payment: | Alibaba Trade assurance, TT, Western Union etc |
| Application: | Chemical industry |

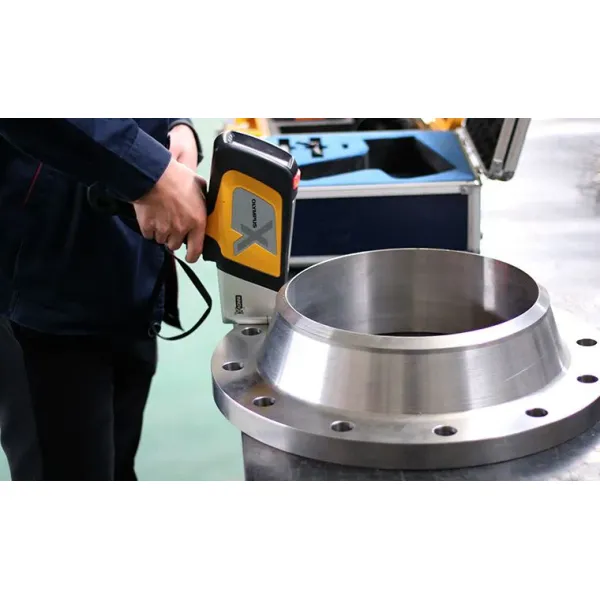

| Inspection: | UT% |
| Certificate: | ISO9001, TUV etc. |
| Company Info. |
| Baoji Lihua Nonferrous Metals Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

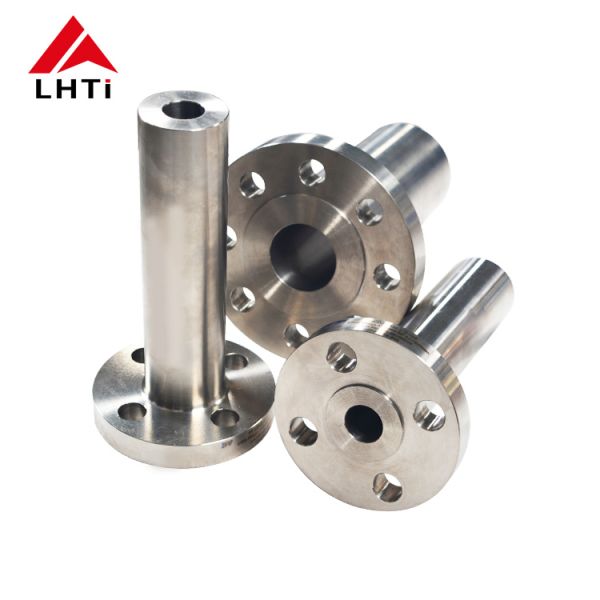

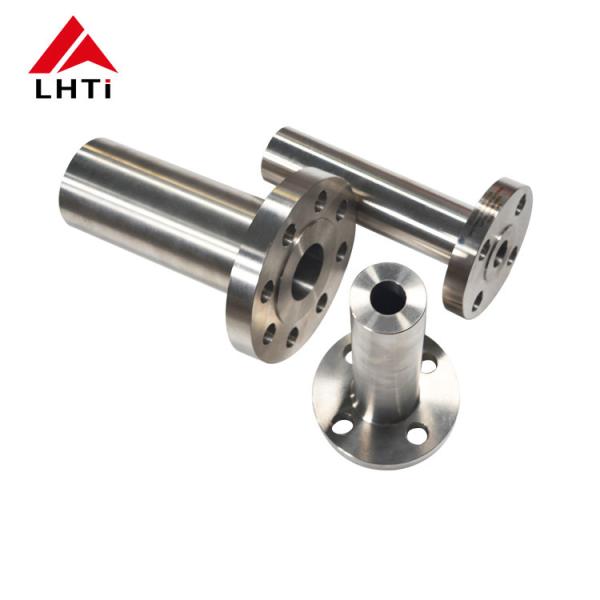

Long Welding neck flange UNS31803 Duplex steel for chemical metallurgical
1. Product parameters
| Titanium Weld Neck Flange Class 300 | ||||||||||
| Nom. Pipe Size | Flange Dia. | Flange Thick. | Hub Dia. At Base | Raised Face Dia. | Hub Dia. At Weld Point | No. of Holes | Dia. Of Bolts | Dia. Of Bolt Circle | Bore Dia. | Length Thru Hub |
| 1/2 | 3-3/4 | 9/16 | 1-1/2 | 1-3/8 | 0.84 | 4 | 2-5/8 | 1/2 | 0.62 | 2-1/16 |
| 3/4 | 4-5/8 | 5/8 | 1-7/8 | 1-11/16 | 1.05 | 4 | 3-1/4 | 5/8 | 0.82 | 2-1/4 |
| 1 | 4-7/8 | 11/16 | 2-1/8 | 2 | 1.32 | 4 | 3-1/2 | 5/8 | 1.05 | 2-7/16 |
| 1-1/4 | 5-1/4 | 3/4 | 2-1/2 | 2-1/2 | 1.66 | 4 | 3-7/8 | 5/8 | 1.38 | 2-9/16 |
| 1-1/2 | 6-1/8 | 13/16 | 2-3/4 | 2-7/8 | 1.90 | 4 | 4-1/2 | 3/4 | 1.61 | 2-11/16 |
| 2 | 6-1/2 | 7/8 | 3-5/16 | 3-5/8 | 2.38 | 8 | 5 | 5/8 | 2.07 | 2-3/4 |
| 2-1/2 | 7-1/2 | 1 | 3-15/16 | 4-1/8 | 2.88 | 8 | 5-7/8 | 3/4 | 2.47 | 3 |
| 3 | 8-1/4 | 1-1/8 | 4-5/8 | 5 | 3.50 | 8 | 6-5/8 | 3/4 | 3.07 | 3-1/8 |
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |
| Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Others:253Ma,254SMo,654SMo,F50(UNSS32100)F60,F61,F65,1J22,N4,N6 etc | |
| Alloy : Alloy 20/28/31 | |
| Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g | |
Hastelloy B/UNS N10001, Hastelloy B-2/UNS N10665/DIN W. Nr. 2.4617, Hastelloy C, Hastelloy C-4/UNS N06455/DIN W. Nr. 2.4610, Hastelloy C22/UNS N06022/DIN W. Nr. 2.4602, Hastelloy C276/UNS N10276/DIN W. Nr. 2.4819, Hastelloy X/UNS N06002/DIN W. Nr. 2.4665 | |
| Haynes: Haynes 230/556/188 | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20 | |
Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 | |
| Incoloy: Incoloy 800/800H/800HT/825/925/926; | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 | |
| Monel: Monel 400/K500/R405 | |
| Nitronic: Nitronic 40/50/60 | |
| Nimonic: Nimonic 75/80A/90/A263 | |
Specification | Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Inspection | ISO,SGS,BV and so on. |
Application | High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing |
Available Flange types
3. Available Dimensions
| OD ( mm) | I D ( mm) | HEIGHT ( mm) |
| 200-400 | 100-300 | 35-120 |
| 400-700 | 150-500 | 40-160 |
| 700-900 | 300-700 | 50-480 |
| 900-1300 | 400-900 | 70-250 |
FAQ
How can I contact with your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile
telephone.
Mob: +86-18391713963 Wechat: lpy18391713963 Contact person:Alice Lee
What is your working time?
Monday-Saturday : 7:30AM-17:00PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . Pls email us during our holiday if u have any question
Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.
What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
|
