2KW Hydraulic Vehicle Truck Pickup Liftgate Trailer 1500KG

Categories Vehicle Tail Lift
Place of Origin: Shaanxi, China
Brand Name: LEEO
Model Number: LA-15-152
Supply Ability: 200 units/ per Month
Price: $2000---$5000/unit
Certification: CE
MOQ: 1-5 units
Delivery Time: 10-20 work days
Type: Doors, Hydraulic system
Size: Customized, Customized size
Material: Steel or Aluminum, Aluminum Alloy or Steel
Truck Model: DONGFENG, Foton, Howo, JieFang
Product name: truck tail lift gate
OEM: Acceptable
Color: Customized color
Application: Truck or Van
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

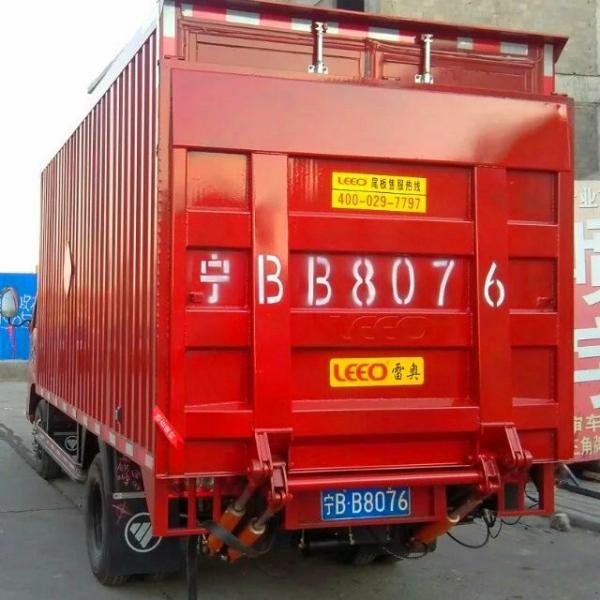

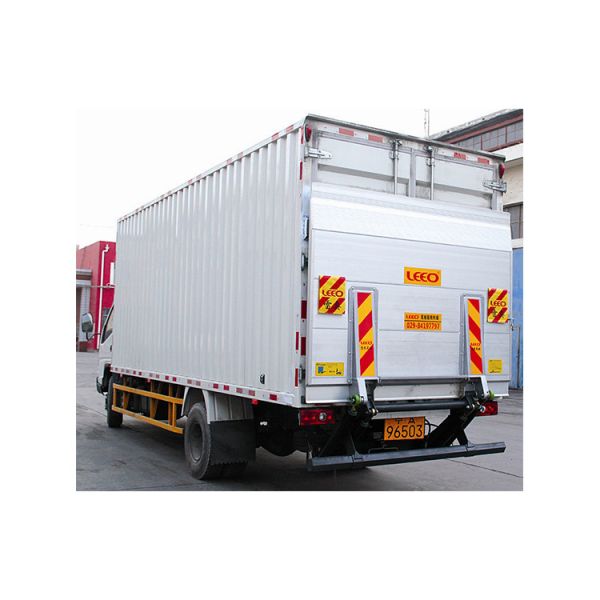

2KW Hydraulic Vehicle Truck Pickup Liftgate Trailer 1500KG

1500 KG Hydraulic Power Vehicle Tail Lift For Trucks Platform Material

Product Description

System Pressure:18Mpa

Lift Speed:60-90mm/s (adjustable speed)

Main cable: National standard YH-25mm²/8.5m

Hydraulic oil:L-HM series 46# anti-wear hydraulic oil, 10 liters/set

Load Capacity: 1500 Kg

Power: 2KW

Voltage: DC24V

Platfrom Material: Steel or Aluminum

Max lift height: 1520 MM

Platform Dimension(W*H) 2300*1800 MM

Weight: 420--535 Kg


Overlap bridgeThe overlapped bridge plate is used to effectively separate the tail plate of the car and the tailgate of the car, which not only realizes the seamless connection between the tail plate and the car, but also avoids the long-term collision and damage of the car tail plate and the car.

The majority of tail lifts are hydraulic or pneumatic in operation, although they can be mechanical, and are controlled by an operator using an electric relay switch.

Using a tail lift can make it unnecessary to use machinery such as a forklift truck to load heavy items on to a vehicle. A tail lift can also bridge the difference in height between a loading dock and the vehicle load bed.

Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere

Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.


Why Choose US


A>Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality

B> We are a professional team and we are proficient in products, understand customers, put people first, and pursue excellence.


C> Our products have a high technical starting point: they are at the highest level in China, and a large number of products are exported to Hong Kong.


Main Products Parameter


Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
SteelAluminum Alloy
LA-7-90700800-9001600*1700126-9320260
LA-10-1201000950-12001800*170012/246-9390290
LA-15-1201500950-12002000*170012/246-9450330
LA-15-13515001050-13502200*1800246-9490370
LA-15-15215001150-15202300*1800246-9550430
LA-20-13520001050-13502400*1800246-9520410
LA-20-15220001150-15202400*1800246-9580460
LA-25-15225001150-15202400*1800246-9630490
LA-25-16025001150-16002400*1800246-9750590

Company Profile

Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.



FAQ


Q: HOW LONG IS THE WARRANTY TIME?

A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


Q: WHAT ABOUT THE AFTER-SALE SERVICE?

A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.


Q:HOW AHOUT THE DELIVERY TIME?

A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


Q:HOW ABOUT THE PAYMENT?

A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.
