C276 Round Rod Hastelloy ASTM B574 UNS N10276 Annealed Straight Ends Bar

Categories Hastelloy Plate
Brand Name: MITTEL
Model Number: C276
Certification: SGS ISO MTC
Place of Origin: China
MOQ: 10KGS
Price: 28.5 USD/KG
Payment Terms: L/C, T/T
Supply Ability: 50000KGS
Delivery Time: 7 Days
Packaging Details: Wooden Box
Grade: Nickel Base Alloy,Hastelloy C276
Application: Industry,construction,used in chemical,spun
Type: Nickel Bar
Ni (min): Balance
Surface: Polished,Black or Bright
Standard: ASTM,DIN,EN,AISI
Material: No 10276
Size: According to client's requirements,as required
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

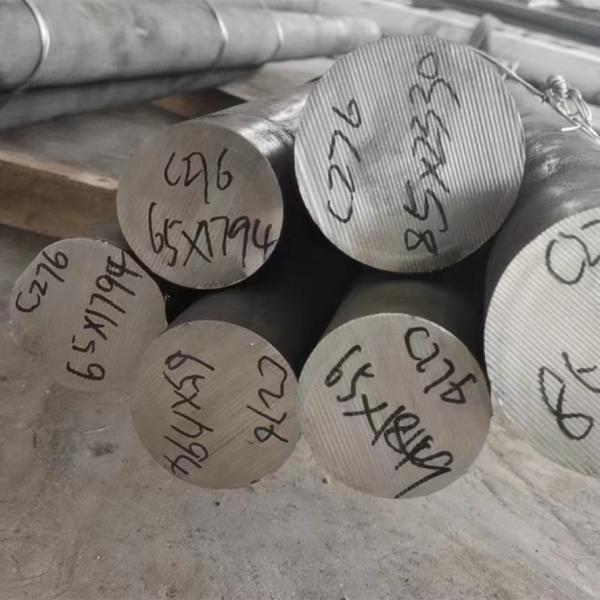

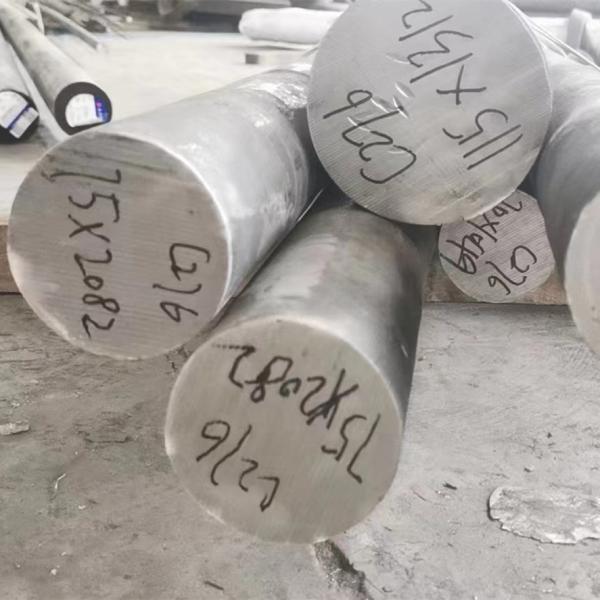

C276 Round Rod Hastelloy ASTM B574 UNS N10276 Annealed Straight Ends Bar

Stock Size Range and Specifications For ASTM B574 Hastelloy C276 Round Bar

Specification : EN, DIN, JIS, ASTM, BS, ASME, AISI

Standard Specification : ASTM B574 / ASME SB574

Size : 15NB to 150NB IN

Diameter : 3.17mm to 350mm diameter

Length : 100 mm to 3000 mm Long & Above

Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements

Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc

Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline

Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished


Chemical Composition of Hastelloy C276 Round Bars
GradeCMnSiSCoNiCrFeMoP
C2760.010 max1.00 max0.08 max0.03 max2.50 max50.99 min*14.50 – 16.504.00 – 7.0015.00 – 17.000.04 max

Mechanical Properties of Hastelloy C276 / N10276 / 2.4819 Round Bars
ElementDensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
Hastelloy C2768.89 g/cm31370 °C (2500 °F)Psi – 1,15,000 , MPa – 790Psi – 52,000 , MPa – 35540 %

Markings On The Hastelloy C276 Round Bar

The full identification of the bars should be continuously marked down its whole length, including :

  • Rating Designation
  • Material Designation
  • "WP" in grade symbol
  • Grade
  • Schedule number or nominal wall thickness
  • Heat Code
  • Manufacturer’s Name or Symbol

ASTM B574 Hastelloy C276 Bars Application Industries
  • Petrochemical Industry
  • Chemical Industry
  • Oil and Gas Industry
  • Pulp & Paper Indusry
  • Power Plant Industry
  • Food Processing Industry
  • Pharmaceuticals Industry
  • Energy Industry
  • Aerospace Industry
