High Qulity 230/245 Square Hole Pneumatic Laser Chuck For Laser Pipe Cutting Machine

Categories Laser Chuck
Brand Name: Lingman
Model Number: Laser chuck G680JF-245
Place of Origin: Changzhou, Jiangsu, China
MOQ: 1 set
Price: USD 3800-6500 set
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Delivery Time: 15-20 work days
Packaging Details: Wood carton
Product name: Laser chuck
Claw stroke: 230mm
Maximum clamping force: 2KN
Allowable pressure: 0.1-1.0MPa
Limit speed: 210r/min
Clamping range: 10-245mm
Central height: 350mm
Rotational inertia: 5.48kg.㎡
Rotating part weight: 173kg
Whole unit weight: 260kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Qulity 230/245 Square Hole Pneumatic Laser Chuck For Laser Pipe Cutting Machine

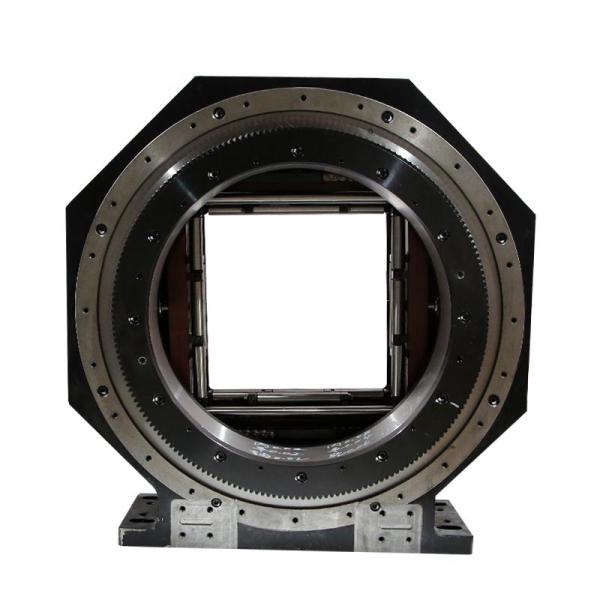

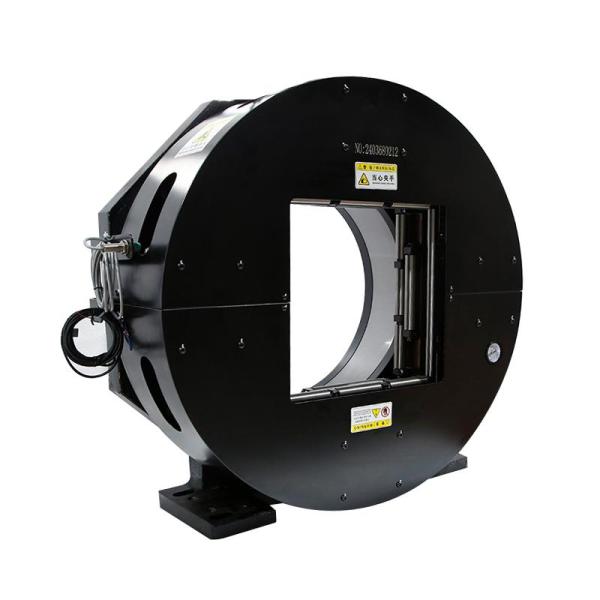

Square Hole Pneumatic Laser Chuck For Laser Pipe Cutting Machine

1. Description


This laser chuck is specially designed for laser pipe cutting equipment. The product itself can be used as an independent rotating spindle, which can quickly clamp and loosen through the side rotating air intake, and can work only after disconnecting the air source.

The simple pneumatic double-action chuck square hole of the tube-sheet integrated machine is suitable for laser tube cutting equipment, rotary cutting round tube, square tube, oval tube, etc.

The product adopts the direct output of the cylinder, which has high mechanical efficiency, small energy loss, large output clamping force and stable clamping force.

The laser chuck has simple structure, small number of components, light weight, low failure rate, stable performance, small moment of inertia and low energy consumption. The axial size of the chuck is small, and the cost of achieving zero tailings is lower.

This product is designed with a square hole. Compared with the round hole chuck, the size of the square tube is increased and the scope of use is expanded.


2. Performance Parameters


  • Product name
Laser chuck
  • Model number
G680JF-245
  • Claw stroke
230mm
  • Maximunm clamping force
2KN
  • Allowable pressure
0.1-1.0MPa
  • Limit speed
200r/min
  • Clamping range
10-245mm
  • Central height
350mm
  • Rotational inertia
5.48g.m2
  • Rotating part weight
173kg
  • Whole unit weight
257kg

​ 3. Dimensions



SpecificationsABB1CDEFGHIJKLORS
G680JF-245520350680690190120460205///29.5245912-M818


4. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available
e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws
