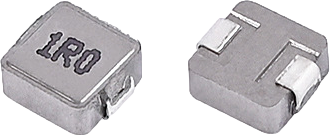

0.15uH SMD Integrated Circuit Inductor Copper Wire Toy Electronic Product

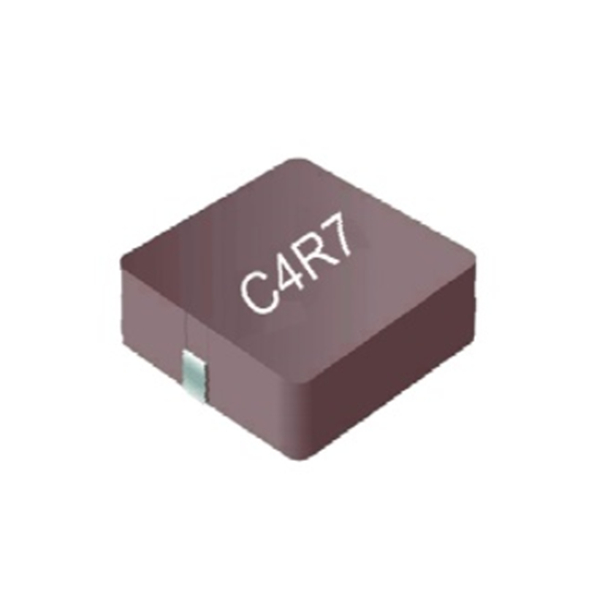

SMD Molding Power Inductor Copper Wire Toy Electronic Product

Features:

• Magnetically shielded construction, low DC resistance；
• The use of magnetic iron powder ensure capability for large current；
• Low audible core noise；
• Ideal for DC-DC converter applications in hand held personal computer and etc；
• Frequency Range: up to 30MHz；
• RoHS compliant

Applications:

• Smart phone,MID；
• Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras；
• Flat-screen TVs, blue-ray disc recorders, set top box；
• Notebooks, desktop computers, servers, graphic cards；
• Portable gaming devices, personal navigation systems, personal multimedia devices；
• Automotive systems；
• Telecomm base stations.

Specification:

Electrical Characteristics :

• Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
• Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Note:

• Maximum allowable DC current is that which causes a 10% inductance reduction from the initial

​ value, or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).

• Operating temperature -55℃ ~ +125℃.
• All test data is referenced to 25℃ ambient

The company’s main business categories: wireless charging coils,induction coils,IC card coils,power inductor,chip inductor and transformer,It is an emerging companies in the development production and sales.Products are widely used in communications,consumer electronics,computers,LED lighting,security,intelligence,medical equipment, bluetooth,toys,mobile phones and automotive electronics.In

the field of electronic products.

The company pursues excellence in product quality,all products high-quality raw materials,equipped with strict production process control procedures,complete production equipment,testing equipment,sales service. The company has passed ISO9001 quality management system certification.The main markets are all over the country,Europe,America and Japan,and are constantly expanding into emerging markets such as Vietnam, Thailand,the philippines,and india
