Industrial Walkway Galvanised Steel Grating Press Locked Untreated Bar

Industrial Walkway Galvanised Steel Grating Press Locked Untreated Bar

Industrial Walkway Galvanised Steel Grating Press Locked Untreated Bar
Industrial Walkway Galvanised Steel Grating Press Locked Untreated Bar
Categories Industrial Steel Grating
Brand Name: Zhuote
Model Number: 325/30/100
Certification: ISO9001-2015
Place of Origin: Hebei
MOQ: 10 piece
Price: Can discuss
Payment Terms: L/C, T/T
Supply Ability: 800 Square meters/day
Delivery Time: 5 work days
Packaging Details: Steel belt packaging
Surface treatment: Hot Dipped Galvanized, Painted, galvanized
Application: Floor, Walkway, platform, stair tread, bridge
Color: any color
Thickness: 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm
Standard: ISO9001, BS4592-1987, YB/T 4001.1-2007
Length: 100-3000mm, according to your size, 6000mm, 1-12m
Contact Now
Company Info.
Hebei Zhuote wire mesh products Co., LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial Walkway Galvanised Steel Grating Press Locked Untreated Bar

Industrial walkway Press locked untreated galvanized steel bar grating


Bearing bar
- A flat bar withstanding the main load is in consistent with the span direction .
bearing bar pitch
- the distance center to center of the two bearing bars.
Cross bar
- the connecting bars , made from twisted bar ,round bar or flat bar, which extend across the bearing bars
Cross bar pitch
- the distance center to center of the two adjacent cross bars.
Length
(span)- the maximum dimension of a grating panel ,measured parallel to the bearing bar ,and in the same direction as the bearing bars .
Width
- the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.
Width
- the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.

Name
steel grating
Typeflat bar, I-bar, serrated bar, serrated I bar
Bearing bar size20*3, 20*5, 25*3, 25*5, 32*3, 32*5, 35*3, 35*5, 40*3, 40*5, 45*5, 50*3, 50*5, 55*5, 60*5, 65*5mm etc
Bearing bar spacing15, 20, 25, 30, 33, 35, 38, 40, 50, 60, 80, 90mm
Cross bar spacing24-200mm
surfaceBlack, Hot dip galvanized, painted
standardYB/T4001.1-2007, ANSI/NAAMM(MBG531-88),BS4592-1987, AS1657-1985

Our Advantages

A. Steel Grating, including plain and serrated steel grating, size and specification can be produced according to customer's requirements.

B. Stair Tread: There are 8 types of treads distinguished by different nosing & way of installation.

C. Drainage Pit/Trench Cover

D. Railing & Stanchion

Total Staff: About 300, including 50 managers, 10 technical engineers.

Total Area: 25, 000 square meters and with workshop area of 18, 000 square meters.

Main Equipment: 8 press-welding machines

Management System: ISO9001: 2008

Advantage: High quality, Professional engineer, and Large production Capability


Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing. (Hot Dipped Galvanized Steel Gratings for Ditch Cover Plate)

FAQ:

Q1.What is the package?

1. Steel pallets, then plastic film in the surface.
2. Stow wood, or wooden tray with steel strip.
3. According to your packing requirements.


Q2.How to visit our factory?

You can fly to Hebei first and then take high-speed rail to Hengshui. We welcome your arrival.


Q3.The quantity of our purchase is very large, may I have a discount?

The price we quote is base on factory price, which is very competitive; But if your quantity is very large, We will apply for the very lowest price for you.


Q4.What 's your delivery time?

For one container products, normally 12-15days after your payment, we can finish the production. For large amount, we will discuss the time.

Product Tags:

walkway galvanised steel grating



press locked galvanised steel grating



industrial galvanized grate for driveway drainage

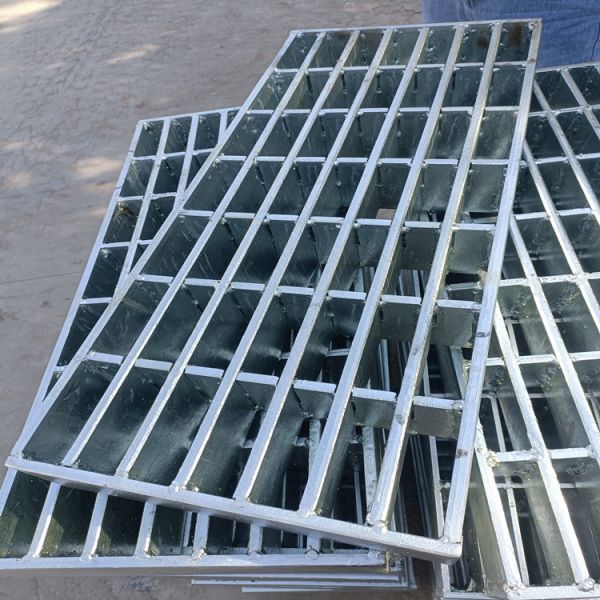

Buy Industrial Walkway Galvanised Steel Grating Press Locked Untreated Bar at wholesale prices
