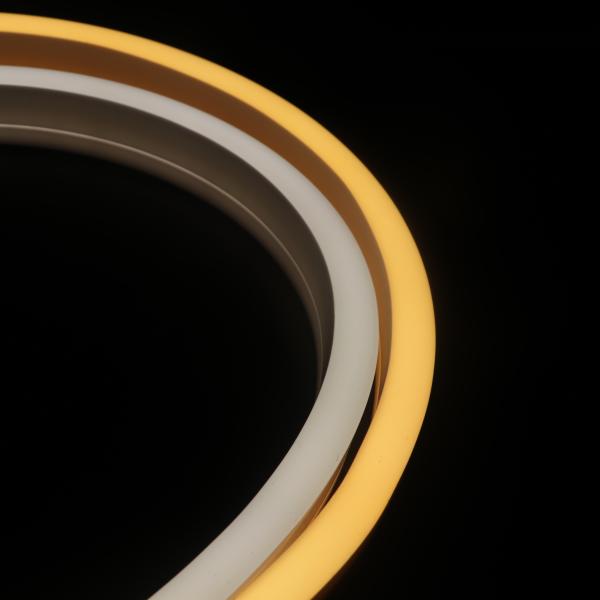

ERP Silicone Neon LED Strip

ERP Silicone Neon Led Strip 24Vdc 160leds Warm White 88lm/W IP67 Rating CE


Description:

- Horizontal bending 12mm*20mm silicone neon led strip in 2700K can reach 88lm/W
- IP67 protected, UV resistant, chemical resistant. Silicone endcap are optional as accessory, which is very easy to cut & reconnect on site.
- 3-Step MacAdam bin and dot free lighting guarantee the most extraordinary performance over the rated lifetime.

Quick Detail:

• ERP Qualified silicone neon
• ERP classification: G
• Size 12mm x 20mm/ 0.47" x 0.79" (W x H)
• UV-resistance(no yellowish)
• Lumileds LED
• 120º beam projection
• Maximum run length 5M
• Max production Length: 30m/roll
• 48W power consumption(5m/roll)
• IP67 rating
• Cable entry directions: Front/Side/Bottom cable entry
• CE, RoHS, Reach, UL compliant
• Life Span >54000H
• 5 Year Warranty

Specifications:

Notices:

1. Please Light it up for a quick check before installation.
2. Bending diameter of LEDLINE ASTON 1220 WHT is 240mm, do not bend to upward or downward direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in Product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.


Applications:

LEDLINE ASTON 1220 HE-27 is suitable for both indoor and outdoor applications such as facade lighting, contour lighting, landscape lighting, retail shops, gallery, show-booth and exhibition room. Ideal for architectural lighting, coves, object integration.Desired light effect in bar counter, restaurant, hotel and task lighting applications.


FAQ

Commercial CE RoHS Reach UL Certificate Outdoor IP67 Waterproof

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 2-4 weeks after payment.

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
