| Brand Name: | Tianrui |
| Model Number: | P02-M2, P02-M3 |
| Certification: | VDE CQC |
| Place of Origin: | China |
| MOQ: | 2000pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Mastercard, Wetern Union, Alipay, etc |
| Supply Ability: | 1000000PCS per Month |
| Delivery Time: | 5-7 work days |
| Packaging Details: | PE bag, Bulk |
| Product Name: | Super Slim Push Wire Connector |
| Rated Current: | 17.5A |
| Rated Voltage: | 450V |
| Stripped Length: | 8-10 mm |
| Housing: | Polycarbonate |
| Flammability: | 94V-2 |
| Wire Range: | 20-16 AWG 0.5-2.5 mm2 |
| Pole: | 2 Poles, 3 Poles |
| Clamping Unit: | Copper and Stainless Steel Spring |
| Application: | Lamps, Appliances, Wiring Installation |
| Company Info. |
| Dongguan Tianrui Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
2 3 Poles 450V 17.5A T110 0.5-2.5 mm2 20-16 AWG PA Lighting Parts
Super Slim Push Wire Connector
1. Product name : Super Slim Push Wire Connector
2. Part number: P02-M2, P02-M3
3. Type : Push-in Wire Connectors
4. Housing : Polycarbonate
5. Flammability : 94V-2
6. Wire Range : 20-16 AWG 0.5-2.5 mm2
7. Pole: 2 Poles, 3 Poles
8. Clamping Unit: Copper and Stainless Steel Spring
9. Application: Lamps, Appliances, Wiring Installation
Features of 2 3 Poles 450V 17.5A T110 0.5-2.5 mm2 20-16 AWG PA Lighting Parts Super Slim Push Wire Connector
* Push wire connector

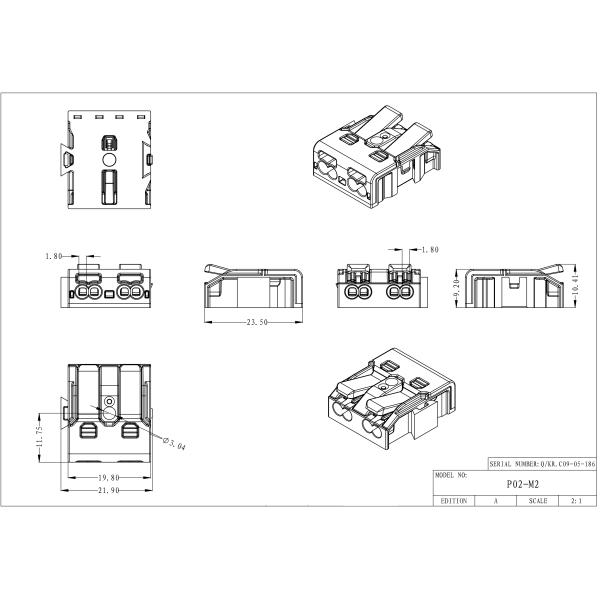

P02-M2 2 Poles 450V 17.5A T110 0.5-2.5 mm2 20-16 AWG PA Lighting Parts Super Slim Push Wire Connector
Electrical Data | |||
IEC/EN | UL | ||
Rated Voltage (V) | 450 | 300 | |
Rated Current (A) | 17.5 | 9 | |
Ambient Temperature | Polyamide 66 | T110 | 105℃ |
Connection Data | |||
Cross Section | IEC/EN | UL | |
Installation side | Solid conductor | 0.5-2.5mm² | AWG 16-20 |
Stranded conductor | 0.5-1.5mm² | ||
Flexible conductor | - | ||
Lighting side | Solid conductor | 0.5-1.5mm² | AWG 16-20 |
Stranded conductor | |||
Flexible conductor | - | ||
Strip length (mm) | 8-10 | ||
Materials | |||
Insulating materials | Designation | Polyamide 66 | |
Flammability class | UL 94V-2 | ||
Clamping unit | Copper+stainless steel | ||



P02-M3 3 Poles 450V 17.5A T110 0.5-2.5 mm2 20-16 AWG PA Lighting Parts Super Slim Push Wire Connector
Electrical Data | |||
IEC/EN | UL | ||
Rated Voltage (V) | 450 | 300 | |
Rated Current (A) | 17.5 | 9 | |
Ambient Temperature | Polyamide 66 | T110 | 105℃ |
Connection Data | |||
Cross Section | IEC/EN | UL | |
Installation side | Solid conductor | 0.5-2.5mm² | AWG 16-20 |
Stranded conductor | 0.5-1.5mm² | ||
Flexible conductor | - | ||
Lighting side | Solid conductor | 0.5-1.5mm² | AWG 16-20 |
Stranded conductor | |||
Flexible conductor | - | ||
Strip length (mm) | 8-10 | ||
Materials | |||
Insulating materials | Designation | Polyamide 66 | |
Flammability class | UL 94V-2 | ||
Clamping unit | Copper+stainless steel | ||
