| Categories | Square Tube Mill |
|---|---|
| Brand Name: | ZTZG |
| Model Number: | ERW89 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/year |
| Delivery Time: | 90 days |
| Packaging Details: | All mechanical equipment is nude packing and electrical parts are packed in wooden cases |

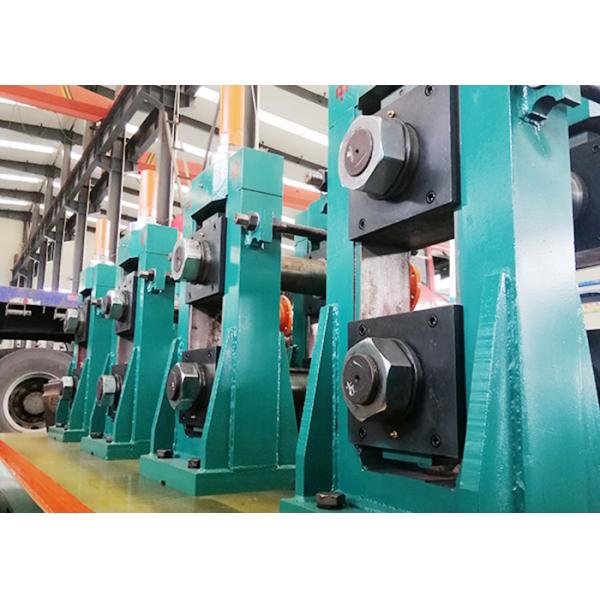

| Product Name: | Easy To Operate Cold Roll Forming Carbon Steel Square Tube Mill |
| Pipe shape: | Square,Rectangular |
| Square & rectangle tube: | 35mm×35mm -70mm×70mm |
| Length: | 6m-12m |
| Thickness: | 1.5mm-3.5mm |
| Voltage: | 220/380/415/420/440V |
| Power(w): | 150 kw |
| Production Speed: | 20-110 m/min |
| Production capacity: | 22,000ton/year |
| Raw Material: | Carbon Steel Coil |
| Color: | According to customer |
| Worker: | 6-8 Workers |
| After-sales service provided: | Engineers available to service machinery overseas,Online support |
| Application: | Energy Supply Pipe,Other,Construction,Furniture |
| Service: | Free technical consultation |
The high-frequency pipe production line is specialized equipment to produce high frequency straight seam welded pipes for structuralpipe and industrial pipe with 35mm×35mm -70mm×70mm and wall thickness of 1.5mm-3.5mm.Square pipe making machine can form steel strip into round pipe, and then turn it into square or rectangular shape. It consists of equipment from raw material uncoiling to pipe cutting off and collecting. This pipe making progress is automatic so it is of large production capacity.
With over 20 years of experience and a real focus on customer
satisfaction, you can rely on ZTZG for your next project.
We provide professional technical consulting and installation
services with a real focus on customer satisfaction. We have proven
results for setting exceptional standards in cost control,
planning, scheduling and project safety. We have experience that
gives us a competitive advantage over others in our field.
Product&yield | Round Pipe | 42mm-89mm Thickness:1.5mm-4.5mm |
| Square & rectangle tube | 35mm×35mm -70mm×70mm Thickness:1.5mm-3.5mm | |
Length | 6m-12m Length Tolerance: ±3mm | |
Production Speed | 20-110 m/min | |
Production capacity | 22,000ton/year | |
Consumption | Mill installed capacity | 150 kw |
Line Area | 72m(length) ×5.5m (width) | |
worker | 6-8 workers | |
Raw Material | Carbon Steel coil | Q235B(ASTM GR·D,σs 230) |
Width | 130mm-280mm Thickness: 1.5mm-4.5mm | |
Coil ID | 550-610mm | |
Coil OD | Max 1600mm | |
Coil Weight | 4.0t |
Technical flow
Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→ Forming → H.F. induction welding→ External burr removing→ Cooling → Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse
Round pipe | Cold roll forming process | Good roller design |
Square & rectangular pipe | General round-to-square process | Stable forming process |
Round-to-square with turkshead | Good pipe quality |
We can design and manufacture square tube machine according to customer’s requirement.
|
