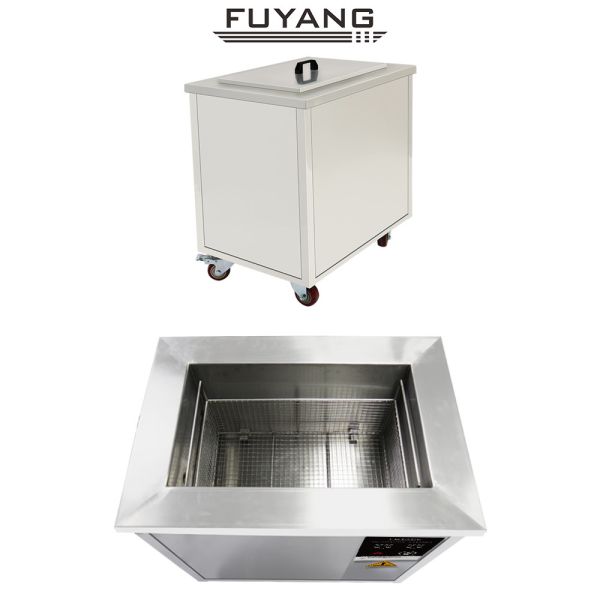

Stainless Steel 192L 40KHz Industrial Ultrasonic Cleaner For Plastic Mold Injection Mold Die Casting Mold
Specifications:
| Model name | F-480A |
| Internal tank size | 700*550*500mm |
| Application | Clean Spray Flannel Mold |
| Function | Removing dirts, oil, rust, grease |
| Feature | No damage to precision mold |
| Tank capacity | 192L |
| Ultrasonic power | 2400W |
| Heating power | 6000W |
| Time control | 0~99 minutes |
| Temperature control | 20~95℃ |
| Water inlet / outlet | Yes |
| Voltage | 220V / 110V |
Same models with different capacity
| Model | capacity | tank size(mm) | Ultrasonic power |
| F-120ST | 38L | 500*300*250 | 600W |
| F-120A | 45L | 500*300*300 | 700W |
| F-180A | 53L | 500X350X300 | 900W |
| F-240A | 77L | 550X400X350 | 1200W |
| F-300A | 99L | 550X450X400 | 1500W |
| F-301A | 96L | 800X300X400 | 1500W |
| F-360A | 135L | 600X500X450 | 1800W |
| F-480A | 175L | 700X500X500 | 2400W |
| F-600A | 264L | 800X600X550 | 3000W |
| F-720A | 360L | 1000*600*600 | 3600W |
Characteristics
Ultrasonic activity operates on similar principles to sound waves.
As electrical energy is transferred to mechanical energy, it causes
positive and negative pressure waves that generate microscopic
bubbles that form on all surfaces throughout the component being
cleaned. But these are no ordinary bubbles. The air bubbles in the
fluid in ultrasonic cleaning equipment implode when they come into
contact with a solid surface. This effect is known as cavitation. When the air bubbles implode, a powerful jet of fluid is created
which comes into contact with the surfaces of the objects being
cleaned at extremely high pressures and temperatures. This dynamic
effect separates contaminants from all surfaces without damaging
the object in any way. These micro-jet shock waves, combined with
special ultrasonic cleaning solvents, remove bitumen, heavy oils,
fats lime scale deposits and other (chemical) waste products in
refineries much faster and more thoroughly than conventional
methods (high pressure,steam, mechanical and chemical cleaning).
Usage: The system is developed to generate a faster and higher
cleaning level by means of ultrasonic power, in combination with
specialized chemicals (degradable). Due to the microscopic level a
perfect inner and outer penetration will be created.
