| Categories | Stainless Steel Metal Plate |
|---|---|
| Type: | Stainless Steel Sheet/Plate/Coil |
| Grades: | 200 series: 201 202300 series: 301 304 304L 309 310 310s 316 316L 321 400 series: 409 410 410S 420 430 |
| Thickness: | 0.2mm – 5.0mm |
| Length: | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT |
| Width: | 3.2mm – 1500mm |
| Finish: | BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, embossed,perforated,water ripple |
| Form: | plate/sheet |
| Application: | Costruction Industry/Kichten Products/Fabrication Industry/Home Decoration |

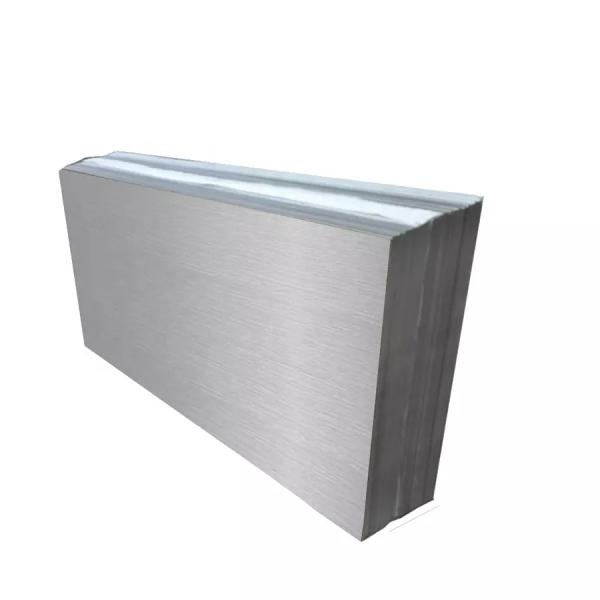

317L Stainless Steel Plate ASTM A240 4mm-100mm Thickness
Product specification
Stainless Steel 317L is a molybdenum containing, low carbon austenitic stainless steel with increased additions of chromium, nickel, and molybdenum for better corrosion resistance and increased resistance to chemical attack for sulfurous, acetic, formic, citric, and tartaric acids. Due to its low carbon content, 317L also provides resistance to sensitization when welded and higher creep, stress to rupture, and tensile strength at elevated temperatures. It is non-magnetic in the annealed condition but may become slightly magnetic after welding.
| Stainless Steel 317L Sheet, Plate & Coil Specifications | |
| Specifications | ASTM A240 / ASME SA240 |
| Thickness | 4mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand |
| blast, Brush, etching, etc | |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
The SS 317L Sheets & Plates are used in various industrial applications all around the world. These stainless steel 317/317L plates are often used in textile equipment, Food Processing Equipment, Condensers in fossil fuel, nuclear-fueled power generations, etc. These plates are also used in Chemical processing equipment, pulp and paper manufacturing, petrochemicals equipment, and so on.
SS 317/317L Sheets & Plates are tested during the time of manufacturing and we conduct strict quality checks through testings. The several tests we perform are flattering test, mechanical test, chemical test, pitting resistance test, micro & macro test, hardness test, positive material identification, flaring test, tensile test, etc.
317/317L Stainless Steel Sheets and Plates Equivalent Grades
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| SS 317 | S31700 | 1.4449 | SUS 317 | - |
| SS 317L | S31703 | 1.4438 | SUS 317L | X2CrNiMo18-15-4 |
Packaging & Delivery
| Packing Details: | 1. Export sea worthy package + water proof paper + wooden pallet |
| 2. Safe loading and fixing Professional teams | |
| Seaworthy wooden pallet or according to client's requirement | |
| MOQ | 1 ton or free samples |
| Price term | FOB China port & CIF Destination Port & CFR |
| Delivery Detail: | within 7-10 working days after receiving the deposit or according to your order quantity. |
