| Categories | Turbine Blade Steel |
|---|---|
| Brand Name: | PANGANGGROUP,ANSTEEL,TISCO,BAOSTEEL |
| Model Number: | FV520B |
| Certification: | SGS,TUV,BV,ISO,MTC |
| Place of Origin: | China |
| MOQ: | 550kg or Negotiations |
| Price: | 3000-6000 USD/Ton or Negotiations |
| Payment Terms: | T/T |
| Supply Ability: | 90000KGS/Month |
| Delivery Time: | Ex-stock for delivery: 4-8 days Production lead time: 40-45 days |
| Packaging Details: | Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement |
| Product name: | FV520B Turbine Blade Steel |
| Grades: | FV520B |
| Processing methods: | Peeled,Milled,Cold working,Machined etc. |
| Heat treatment condition: | Quenched and tempered etc. |
| Surface: | Rrough Turned,Grinding,Centreless Ground etc. |
| Profile: | Forging Parts,Sheets Plates etc. |
| Price Term: | Ex-work, FOB, CIF, CFR, DDU etc. |

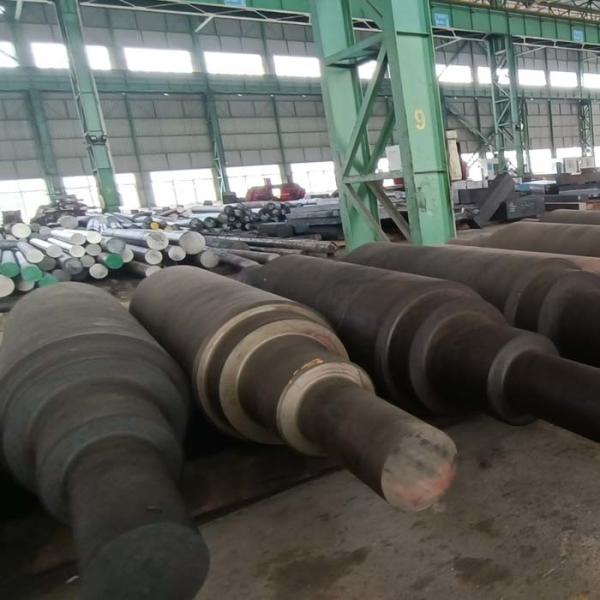

FV520B Turbine Blade Steel FV520B Forging Parts
Description
FV520B Turbine Blade Steel FV520B Forging Parts is a martensitic
precipitation hardening stainless steel which is capable of being
hardened by low-temperature treatment. FV520B Turbine Blade Steel
FV520B Forging Parts boasts superior corrosion resistance when
compared to standard martensitic grades.
All of FV520B Turbine Blade Steel FV520B Forging Parts conform to Military standard, nuclear power. 100% Ultrasonic test
ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Products Details
FV520B Turbine Blade Steel FV520B Forging Parts
| Chemical Composition (weight%): |
| C (％): ≤ 0.070 Si (％): ≤ 0.70 Mn (％): ≤ 1.00 P (％)≤: 0.040 S (％)≤: 0.015 Cr (％): 13.0 ~ 15.0 Ni (％): 5.00 ~ 6.00 Mo (％): 1.20 ~ 2.00 Cu (％): 1.20 ~ 2.00 Nb + Ta (%): 0.15 ~ 0.60 |
| Mechanical Properties Under Final Heat Treatment: |
| Thickness/≤mm: 100 Condition of thermal treatment: AT (Solution treatment) Hardness ≤HBS: 360 Yield strength σ0.2≥/MPa: - Tensile strength σb/MPa: ≤1200 Elongation δ ≥(％): - Elongation δ(transversal )≥(％): - Impact absorbing power Akv≥/J : - Condition of thermal treatment: P930 Hardness ≤HBS: - Yield strength σ0.2≥/MPa: 720 Tensile strength σb/MPa: 930~1100 Elongation δ ≥(％): 15 Impact absorbing power Akv≥/J : 40 Condition of thermal treatment: P1000 Hardness ≤HBS: - Yield strength σ0.2≥/MPa: 860 Tensile strength σb/MPa: 1000~1200 Elongation δ ≥(％): 10 Impact absorbing power Akv≥/J : - Condition of thermal treatment: P1070 Hardness ≤HBS: - Yield strength σ0.2≥/MPa: 1000 Tensile strength σb/MPa: 1070~1270 Elongation δ ≥(％): 10 Impact absorbing power Akv≥/J : - |
Applications:
FV520B Turbine Blade Steel FV520B Forging Parts used most often in
the pump shafts, hydraulic equipment used in oil and gas
industries, petrochemical, marine and nuclear engineering, and
aircraft components such as steam turbine blades.
| Technical Standard | Equivalent Grade |
| ISO/TS 15510(2003) | X6Cr13 |
| JIS G4303(2005) | SUS 405 |
| KS D3706(2006) | STS 405 |
| IS 6527(2001) | X04Cr13 |
| DIN EN 10088-1(2005) | X6Cr13/1.4000 |
| NF EN 10088-2(2005) | X6Cr13 |
| NF A35-573(1984) | Z6CA13 |
| BS 970-1(1996) | 403S17 |
| ASTM A959(2004) | 405/S40500 |
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of raw materials and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging,
we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order
as the start of our cooperation, we can accept smaller quantities
at the first time. Of course, after the start, we will have further
and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing,
DHL/FedEx/UPS accounts can be used for sampling, and the courier
fee is borne by you.
|
