| Categories | Ultrasonic Sonochemistry |
|---|---|
| Brand Name: | Altrasonic |
| Model Number: | HS-S20-500 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Price: | negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000 PCS per month |
| Delivery Time: | 15 days after receiving from the payment |
| Packaging Details: | Packed in wooden carton |
| Name: | Ultrasonic Sonochemistry |
| Frequency: | 20Khz |
| Power: | 500W |
| Weight: | 16Kg |
| Generator: | Digital Mode |
| Control: | Remote Control |
| Application: | Extraction, Dispersing, Emulsifying |
| Matetail of probe: | Titanium alloy |
| Max capacity: | More than 500ml/Min |
| Intensity of sound: | More than 10W/cm² |
| Origin: | China |

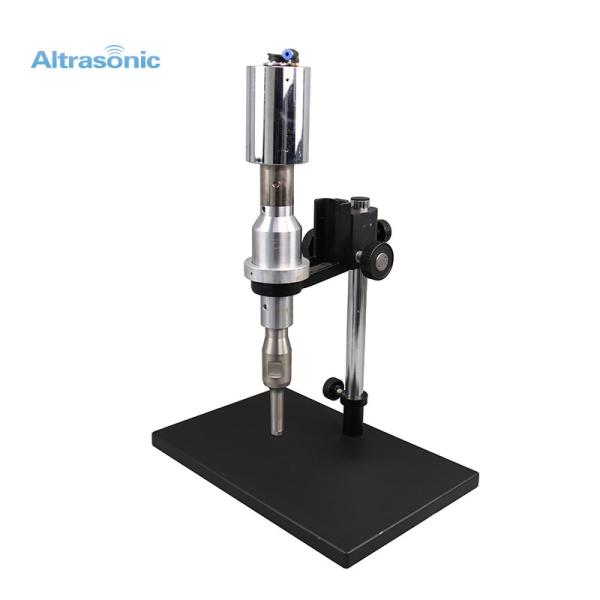

Ultrasonic Homogenizer Sonochemistry Titanium Alloy Probe 20kHz 500Watt
Description:
Ultrasonic homogenizer uses the cavitation and other physical
effects of ultrasonic waves in the liquid to achieve the
homogenization effect. The physical effect means that ultrasonic
waves can form effective agitation and flow in the liquid to
destroy the structure of the medium and pulverize the particles in
the liquid.
Specifications:
| Model | HSS20-500 | HSS20-1000-L | HSS20-1000 | HSS20-1500 | HSS20-2000 | HSS20-3000 |
| Frequency | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz |
| Power | 500 W | 1000 W | 1000 W | 1500W | 2000W | 3000 W |
| Voltage | 220V | 220V | 220V | 220V | 220V | 220V |
| Temperature | 150 ℃ | 150 ℃ | 150 ℃ | 300℃ | 300℃ | 300 ℃ |
| Pressure | Normal | Normal | Normal | 35 MPa | 35 MPa | 35 MPa |
| Intensity of sound | ＞10 W/cm² | ＞10 W/cm² | ＞10 W/cm² | ＞30 W/cm² | ＞40 W/cm² | ＞60 W/cm² |
| Max capacity | ＞ 500ml/Min | ＞ 2 L/Min | ＞ 5L/Min | ＞ 15L/Min | ＞ 20L/Min | ＞ 100 L/Min |
| Material of probe | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Applications:
Ultrasonic Homogenizeris the use of physical technology to produce a series of extreme
extreme conditions in the medium of chemical reaction. This energy
can not only stimulate or promote many chemical reactions, speed up
chemical reactions, but also change the direction of chemical
reactions and produce some effects.
Advantages:
1. Core parts with Titanium materials
2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search
frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability, long working hours, radiation area is
increased 2.5 times than traditional tools
7. Provide consulting services and custom reactor designs
8. Custom sizes available for laboratory and high volume industrial
applications.
